5120-01-399-9771

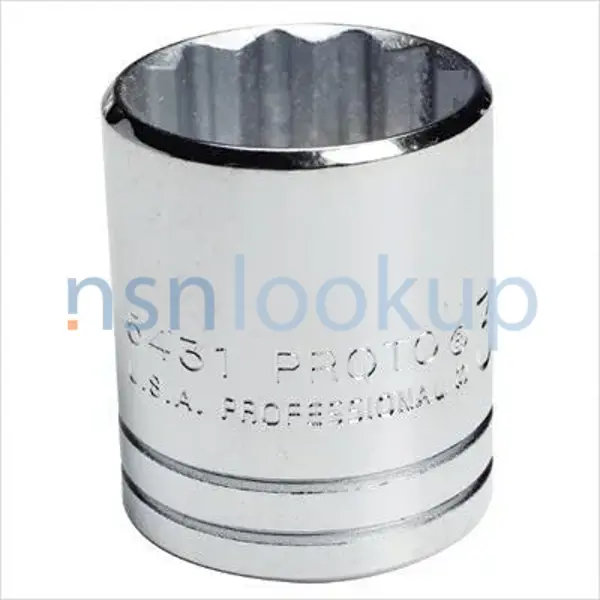

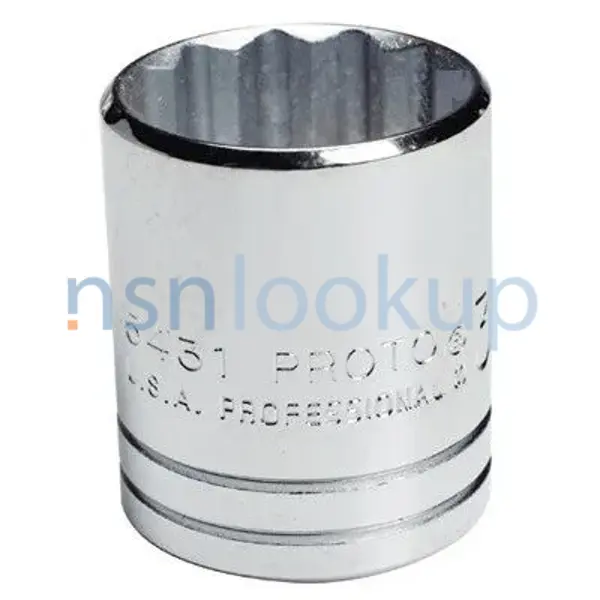

Socket Wrench Socket
5120013999771 013999771 J5420 STP 5420 1AM67 5420
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
May 2023
15
Marketplace 5120-01-399-9771
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-399-9771 4+ Documents (More...)
Quotation Updated Every Day J5420 RQST NE Updated Every Day 5420 RQST NE Updated Every Day 1AM67 RQST
RQST NE Updated Every Day 5420 RQST NE Updated Every Day 1AM67 RQST Quotation Updated Every Day J5420
Socket Wrench Socket 5120013999771 013999771 day Upgrade your Account Upgrade 5120-01-399-9771Socket
Wrench Socket5120013999771 013999771 J5420 STP 5420 Every Day 5420 RQST NE Updated Every Day 1AM67 RQST
Restrictions 5120-01-399-9771
5120-01-399-9771 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-399-9771
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-399-9771
- US Army (A192)
- Effective Date:
- 1 Sep 2013
- Supplementary Receivers:
- CT
- US Coast Guard (C014)
- Effective Date:
- 1 Jan 1995
- US Air Force (FGGS)
- Effective Date:
- 1 Jan 1995
- NASA (G751)
- Effective Date:
- 1 Dec 1994
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2014
- Supplementary Collaborators:
- GG
- Australia (ZA01)
- Effective Date:
- 1 Jun 2016
- Belgium (ZB01)
- Effective Date:
- 1 Dec 1995
- Canada (ZC01)
- Effective Date:
- 1 Nov 2014
- Republic of Korea (ZH01)
- Effective Date:
- 1 Dec 2013
- Turkey (ZW01)
- Effective Date:
- 1 Oct 2009
Approved Sources 5120-01-399-9771
- Part Number
- Manufacturer
- Status
- J5420
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- STP 5420
- 00NS2 - Kipper Tool Company (Active)
- Secondary Buy
- Secondary Buy
- 1AM67
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- J5420
- Z19N0 - The Trustee For Henchman Unit Trust (Active)
- Secondary Buy
- Secondary Buy
- 5420
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- J5420
- ZAE87 - Henchman Products Pty Ltd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-399-9771
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Internal-Internal
- Overall Length [ABHP]
- 1.500 Inches Nominal
- Wrenching Surface Size [AJBR]
- 0.625 Inches Nominal Single End
- Wrenching Surface Shape [CRWY]
- 12 Point Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Drive End Shape [CTCT]
- Square Single End Internal
- Features Provided [CBBL]
- Manual Tool
Management Data 5120-01-399-9771
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- V
- Discontinued Without Replacement
- V
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 7
- Reviewed and determined non-essential
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5120-01-399-9771
Freight Information 5120-01-399-9771
5120-01-399-9771 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-399-9771 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-399-9771 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-399-9771 is not classified as a special type of cargo when transported by water. 5120-01-399-9771 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
