5120-01-399-9665

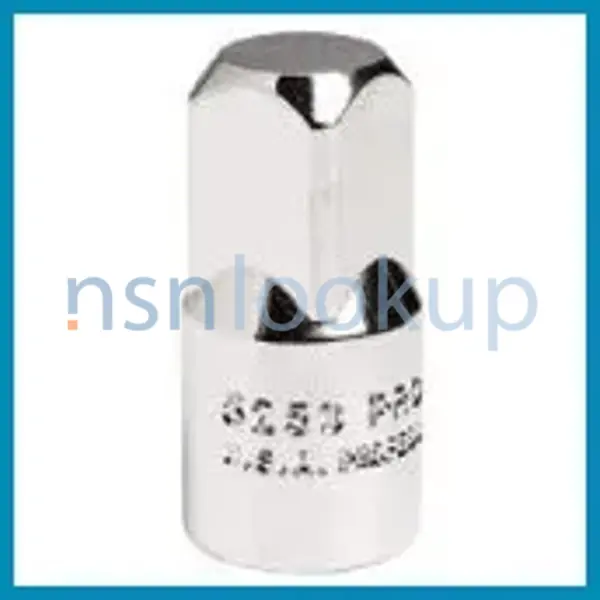

Socket Wrench Adapter
5120013999665 013999665 5254 1AH99
A rigid adapter less than four inches (101.6 mm) long used to connect sockets to handles, power tools, or to other attachments which are not designed for direct mating to each other. See also RATCHET ATTACHMENT, SOCKET WRENCH; UNIVERSAL JOINT, SOCKET WRENCH ATTACHMENT; EXTENSION, SOCKET WRENCH; and ADAPTER-EXTENSION, SOCKET WRENCH; Excludes ADAPTER, SOCKET, CROWFOOT SOCKET WRENCH HEAD; SOCKET, WRENCH, REFRIGERATION VALVE STEM; and HOLDER, SCREWDRIVER BIT, FEMALE SQUARE DRIVE. View more Socket Wrench Adapter
May 2023
13
Marketplace 5120-01-399-9665
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-399-9665 4+ Documents (More...)
,SOCKET WRENCH 10 EA NS Request Quotation Updated Every Day 5254 RQST NE Updated Every Day 1AH99 RQST
NE Updated Every Day 5120-01-399-9665 RQST NE Updated Every Day 5120-01-399-9665 RQST Updated Every
Restrictions 5120-01-399-9665
5120-01-399-9665 is a Socket Wrench Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-399-9665
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-399-9665
- Belgium (ZB01)
- Effective Date:
- 1 Mar 2003
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jun 2012
Approved Sources 5120-01-399-9665
- Part Number
- Manufacturer
- Status
- 5254
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 1AH99
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5120-01-399-9665
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- External-Internal
- Overall Length [ABHP]
- 1.406 Inches Nominal
- Outside Diameter [ABKV]
- 1.000 Inches Maximum
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal First End
- Drive Surface Size [ATNC]
- 0.375 Inches Nominal Second End
- Drive End Shape [CTCT]
- Square First End Internal
- Drive End Shape [CTCT]
- Square Second End External
- Features Provided [CBBL]
- Manual Tool
Similar Supply Items to 5120-01-399-9665
Freight Information 5120-01-399-9665
5120-01-399-9665 has freight characteristics.. 5120-01-399-9665 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
