5120-01-399-9664

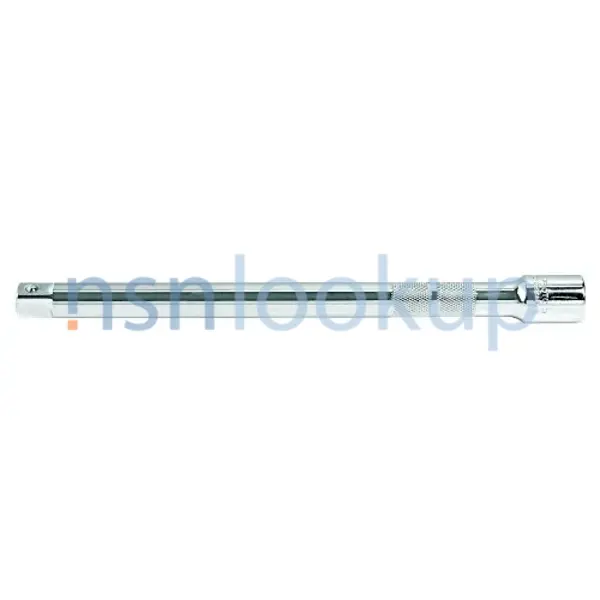

Socket Wrench Extension
5120013999664 013999664 J5465 1AM43 5465
An attachment for extending the drive length of socket wrenches or handles. The body of the item may be either a coil spring or a solid bar. The items permit the connection of ends that are designed for direct mating to each other. See also ADAPTER, SOCKET WRENCH; UNIVERSAL JOINT, SOCKET WRENCH ATTACHMENT; and ADAPTER, SOCKET, CROWFOOT SOCKET WRENCH HEAD. View more Socket Wrench Extension
May 2023
17
Marketplace 5120-01-399-9664
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-399-9664 4+ Documents (More...)
5465 RQST NE Updated Every Day 1AM43 RQST NE Updated Every Day 5120-01-399-9664 RQST NE Updated Every
Day 5120-01-399-9664 RQST Updated Every Day 5120-01-399-9664 RQST NE Related Documents 5120-01-399-9664
Restrictions 5120-01-399-9664
5120-01-399-9664 is a Socket Wrench Extension that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-399-9664
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-399-9664
- Spain (YB01)
- Effective Date:
- 1 Jan 2015
- Germany (ZG01)
- Effective Date:
- 1 Jun 2001
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Nov 2003
Approved Sources 5120-01-399-9664
- Part Number
- Manufacturer
- Status
- J5465
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 1AM43
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 5465
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-399-9664
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Rigid
- Overall Length [ABHP]
- 36.000 Inches Nominal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Both Ends
- Drive End Shape [CTCT]
- Square First End Internal
- Drive End Shape [CTCT]
- Square Second End External
- Features Provided [CBBL]
- Manual Tool
Similar Supply Items to 5120-01-399-9664
Freight Information 5120-01-399-9664
5120-01-399-9664 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186710. A Sub NMFC of Z. It has a NMFC Description of TOOLS:TORCHES HAND O/T BLOW. 5120-01-399-9664 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-399-9664 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-399-9664 is not classified as a special type of cargo when transported by water. 5120-01-399-9664 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
