5120-01-399-9051
Torque Wrench
5120013999051 013999051 AS28431 AS28431 TY1CL1 J6017B 1ARN6 B107.14 6017 6017B B107.300 B107.14 TY2CLAST1DEA
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
May 2023
27
Marketplace 5120-01-399-9051
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-399-9051 5+ Documents (More...)
,TORQUE RQST NS Request Quotation Updated Every Day J6017B RQST NE Updated Every Day 6017 RQST NE Updated
Every Day 6017B RQST NE Updated Every Day 1ARN6 RQST NE Updated Every Day 5120-01-399-9051 RQST NE Updated
QD21000 QJ284C B107.300 QJ284A B107.14 TY2CLAST1DEA QC21000 B107.14 A manual tool for B107.300B107.14
TY1CL1 4LY41 6015B 1ARN4 AS28431 6015 B107.14 6015C B107.14 TY2CLAST1DEAB107.300 A manual tool for Torque
TY1CL1 7502MMH B107.300 B107.14 B107.14 TY2CLAST1DEA AS28431 A manual tool for tightening various fasteners
Torque Wrench 5120013999051 013999051 AS28431 TY1CL1 J6017B 1ARN6 B107.14 6017 6017B B107.300B107.14
Torque Wrench 5120013999051 013999051 WRENCH,TORQUE 1 EA NS Request Quotation Subscribe to View
Vendor Details... 6017 WRENCH,TORQUE 2 EA NS Request Quotation Subscribe to View Vendor Details... 6017
Restrictions 5120-01-399-9051
5120-01-399-9051 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-399-9051
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-399-9051
- US Coast Guard (C014)
- Effective Date:
- 1 Jan 1995
- NASA (G751)
- Effective Date:
- 1 Dec 1994
- NASA (G881)
- Effective Date:
- 1 Jun 1995
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 2013
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2014
- Supplementary Collaborators:
- GG
Approved Sources 5120-01-399-9051
- Part Number
- Manufacturer
- Status
- AS28431
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS28431 TY1CL1
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- J6017B
- 1CV05 - The Stanley Works (Active)
- Secondary Buy
- Secondary Buy
- 1ARN6
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- B107.14
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6017
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6017B
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.300
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14 TY2CLAST1DEA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS28431
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-399-9051
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.750 Inches Nominal Single End

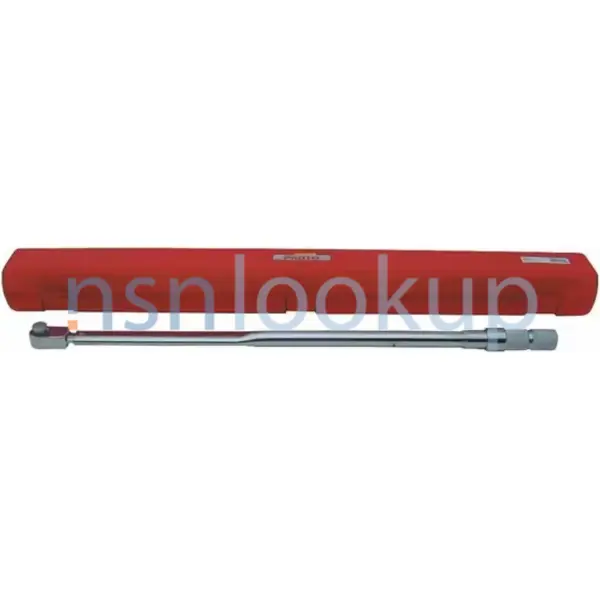

- Furnished Items [AFJH]
- Case
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 1 Class
- Overall Length [ABHP]
- 41.250 Inches Nominal
- Special Features [FEAT]
- Plain Head; Plain Steel Handle; Dual Scale; 0.28 Mkg Graduations
- Torque Scale Graduation [AJCH]
- 2.00 Foot-Pounds
- Torque Signal Method [AJDR]
- Audible
- Torque Capacity [AJCG]
- 90.0 Foot-Pounds Minimum And 600.0 Foot-Pounds Maximum And 14.5 Meter-Kilograms Minimum And 85.0 Meter-Kilograms Maximum
- Torque Indicating Mechanism [AJCF]
- Micrometer
- Specification/Standard Data [ZZZK]
- 81343-Sae As28431 Professional/Industrial Association Standard
- Style Designator [STYL]
- Micrometer End Drive
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-399-9051
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- 3
- Calibration Required
Similar Supply Items to 5120-01-399-9051
Freight Information 5120-01-399-9051
5120-01-399-9051 has freight characteristics.. 5120-01-399-9051 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
