5120-01-399-8973

Spanner Wrench

5120013998973 013998973 JC483 1APC2 C483

A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG. View more Spanner Wrench

5120-01-399-8973 WRENCH,SPANNER 5120013998973 013998973

Managed by United States
NSN Created on 7 Dec 1994
Data Last Changed
May 2023
NATO Update Count
10
NATO Data Quality
5120-01-399-8973 WRENCH,SPANNER 5120013998973 013998973 1/2

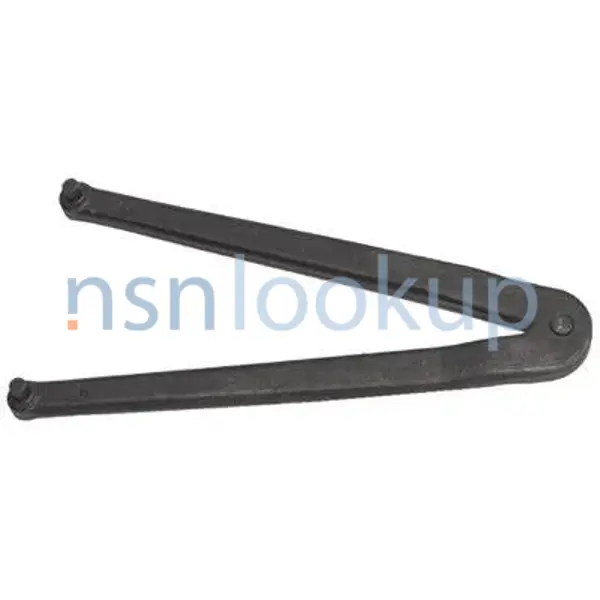

5120-01-399-8973 Photo 1/2
STYL Style 709 for 5120-01-399-8973 2/2
NSN 5120-01-399-8973 (Identification) 2/2

5120-01-399-8973 Stock and Availability Marketplace 5120-01-399-8973

Need Help?
Request a Quotation from participating marketplace vendors
Global Test Supply

C483 Dickson C483 Replacement Charts, 8", 31 day, 5 to 40°C, Box of 60 STK NE $50.46 Distributor Buy Now
Subscribe to View Vendor Details...
C483 WRENCH,SPANNER 10 EA NS Request Quotation
Subscribe to View Vendor Details...
5120-01-399-8973 WRENCH,SPANNER RQST NS Request Quotation
MSC Updated Every Day
JC483 RQST NE MSC
MSC Updated Every Day
C483 RQST NE MSC
Grainger Updated Every Day
1APC2 RQST NE Grainger
eBay Updated Every Day
5120-01-399-8973 RQST NE eBay
eBay Updated Every Day
5120-01-399-8973 RQST eBay
Amazon Updated Every Day
5120-01-399-8973 RQST NE Amazon

5120-01-399-8973 Related Documents Related Documents 5120-01-399-8973 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-51/fsc-5120/us
5120-01-399-8973 Spanner Wrench 5120013998973 013998973,JC483
JC483 1APC2 C483 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed
Every Day 1APC2 RQST NE Updated Every Day 5120-01-399-8973 RQST NE Updated Every Day 5120-01-399-8973
Every Day 1APC2 RQST NE Updated Every Day 5120-01-399-8973 RQST NE Updated Every Day 5120-01-399-8973
https//www.nsnlookup.com
/fsg-51/fsc-5120/us
5120-01-069-1311 Spanner Wrench 5120010691311 010691311
Restrictions 5120-01-069-1311 DEMIL: A | DEMILI : | https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-399-8973
Spanner Wrench 5120013998973 013998973,JC483 RQST NE Updated Every Day C483 RQST NE Updated https
AssyUOMTechnical DocumentQuantative ExpressionDepartment of the Navy (DN)NAConsolidated With 5120-01-399-8973
https//www.nsnlookup.com
/fsg-59/fsc-5940/us
5940-01-253-4582 Lug Terminal 5940012534582 012534582
a day Upgrade your Account Upgrade 5940-01-253-4582Lug Terminal5940012534582 012534582 MIL-T-7928 C483
Request a Quotation from participating marketplace vendors Request Global Test Supply C483 Dickson C483
Spanner Wrench 5120013998973 013998973,JC483 day Upgrade your Account Upgrade 5120-01-399-8973Spanner
https//www.nsnlookup.com
/fsg-51/fsc-5120/us
5120-00-293-0798 Spanner Wrench 5120002930798 002930798
9637 GGG-W-665 GGG-W-665 TY3CL1 C483 MS16146-2 A tool on which are located one or more pins, lugs, holes
Request a Quotation from participating marketplace vendors Request Global Test Supply C483 Dickson C483
RQST NE Updated Every Day C483 RQST NE Updated Every Day 9637 RQST NE Updated Every Day 5120-00-293-
https//www.nsnlookup.com
/fsg-59/fsc-5935/de
5935-12-312-8499 Electrical Receptacle Connector 123128499
5935-12-312-8499Electrical Receptacle Connector5935123128499 123128499 MTV5935-005-20 V42254-B2102-C483
85002-1512 414810 V42254-B2402-C483 C143-012A48S(504) 414 810 An electrical fitting with electrical
Spanner Wrench 5120013998973 013998973,JC483 -399-8973 Spanner Wrench 5120013998973013998973 https

5120-01-399-8973 Demil Restrictions 5120-01-399-8973

DEMIL: A | DEMILI: | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC:

5120-01-399-8973 is a Spanner Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

5120-01-399-8973 HTS and ScheduleB Import and Export 5120-01-399-8973

Schedule B
Subscribe to View Schedule B
HTS Code
Subscribe to View HTS Code

5120-01-399-8973 End Users End Users 5120-01-399-8973

US Army (A192)
Effective Date:
1 Jan 1995
AMC 0 AMSC 0 IMC Z IMCACTY CD
US Coast Guard (C014)
Effective Date:
1 Jan 1995
AMC 0 AMSC 0
US Air Force (FGGS)
Effective Date:
1 Jan 1995
AMC 0 AMSC 0 IMC Z IMCACTY TG
NASA (G751)
Effective Date:
1 Dec 1994
AMC 0 AMSC 0
US Marine Corps (MC14)
Effective Date:
1 Jan 1995
AMC 0 AMSC 0 IMC Z IMCACTY PA
US Navy (N9QG)
Effective Date:
1 Jan 2014
Supplementary Collaborators:
GG
AMC 0 AMSC 0 IMC Z IMCACTY GH
Canada (ZC01)
Effective Date:
1 Oct 2001

5120-01-399-8973 Manufacturers Approved Sources 5120-01-399-8973

Part Number
Manufacturer
Status
JC483
1CV05 - The Stanley Works (Active)
Incomplete Reference
RNCC 3 RNVC 1 DAC 4
1APC2
25795 - W.W. Grainger, Inc. (Active)
Secondary Buy
RNCC 5 RNVC 2 DAC 4
C483
1CV05 - The Stanley Works (Active)
Canceled/Obsolete
RNCC 5 RNVC 9 DAC 4
C483
93389 - Stanley-Proto Industrial Works Div (Obsolete)
Canceled/Obsolete
RNCC 5 RNVC 9 DAC 4

5120-01-399-8973 Technical Data Datasheet 5120-01-399-8973

Characteristic
Specifications
FIIG
A102A0
Material [MATT]
Steel Overall
Surface Treatment [SFTT]
Oxide Overall
Style Designator [STYL]
Adjustable Face Pin
Overall Length [ABHP]
8.250 Inches Nominal
Pin Diameter [ABVV]
0.250 Inches Nominal
Center To Center Distance Between Pins [AJDW]
3.000 Inches Maximum

5120-01-399-8973 Management Data Management Data 5120-01-399-8973

Subscribe
View Prices
Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Feb 2020
Department of the Air Force (DF)
EA
Subscribe

Army Army

Materiel Category and Inventory Manager:
E
General Supplies (DLA/GSA Items)
Appropriation and Budget Activity:
2
Stock Fund Secondary Items
Management Inventory Segment:
2
Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
Weapons System / End Item / Homogeneous Group:
00
DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements:
X
Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force Air Force

Fund:
SF
Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
Budget:
9
57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
Price Validation Code:
N
The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
Expendability
Recoverability
Repairability:
N
Expendable. Condemn at User. Stock Fund (except Munitions).

Navy Navy

Cognizance:
9Q

Marine Corps Marine Corps

Stores Account:
1
Stock Fund Account Item
Combat Essentiality:
7
Reviewed and determined non-essential
Echelon Management:
02
Operational Test:
No Special Procedures

5120-01-399-8973 Related Items NATO Stock Numbers Related to 5120-01-399-8973

5120-21-905-9166 5120-99-445-3225 5120-14-483-0608 5120-14-323-8253 5120-14-368-0570 5120-99-835-0167 5120-14-444-8311 5120-14-235-5955 5120-14-371-4260 5120-14-342-5287 5120-21-856-0950 5120-99-136-8286 5120-14-222-7061 5120-14-269-5232 5120-14-231-6184 5120-14-466-4718 5120-14-332-1134 5120-21-910-7709

5120-01-399-8973 Freight Data Freight Information 5120-01-399-8973

5120-01-399-8973 has freight characteristics.. 5120-01-399-8973 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
