5120-01-397-2964
Socket Wrench Extension
5120013972964 013972964 10-922
An attachment for extending the drive length of socket wrenches or handles. The body of the item may be either a coil spring or a solid bar. The items permit the connection of ends that are designed for direct mating to each other. See also ADAPTER, SOCKET WRENCH; UNIVERSAL JOINT, SOCKET WRENCH ATTACHMENT; and ADAPTER, SOCKET, CROWFOOT SOCKET WRENCH HEAD. View more Socket Wrench Extension
May 2023
14
Marketplace 5120-01-397-2964
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-397-2964 1+ Documents (More...)
5120-01-397-2964 RQST NE Updated Every Day 5120-01-397-2964 RQST Updated Every Day 5120-01-397-2964

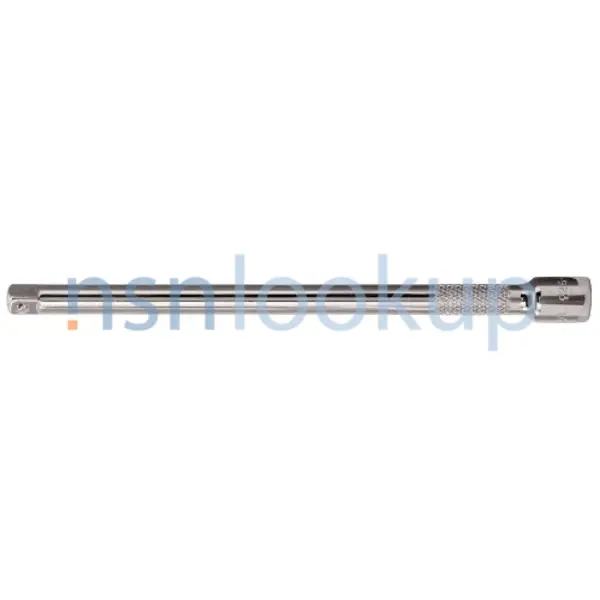

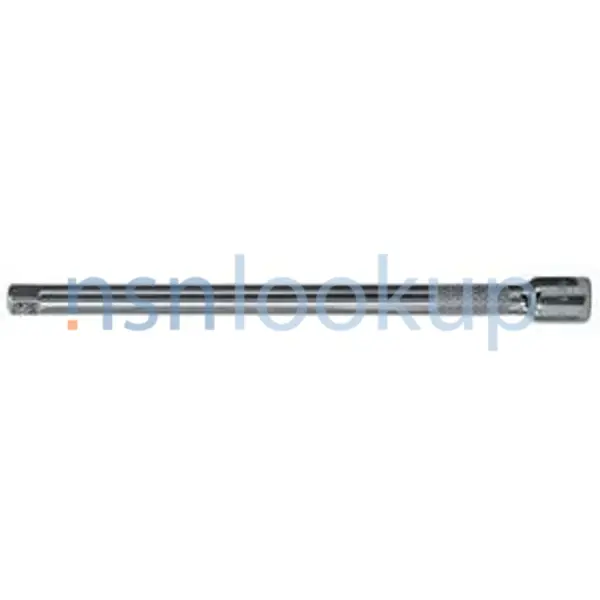

Photo 2/4 5120-01-397-2964 Photo 3/4 NSN 5120-01-397-2964 (Identification 5120-01-397-2964 RQST NE Updated
Restrictions 5120-01-397-2964
5120-01-397-2964 is a Socket Wrench Extension that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-397-2964
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-397-2964
- Brazil (YA01)
- Effective Date:
- 1 May 2012
- Singapore (YJ01)
- Effective Date:
- 1 Jul 1999
- Belgium (ZB01)
- Effective Date:
- 1 Sep 2000
- Denmark (ZS01)
- Effective Date:
- 1 Apr 2005
Approved Sources 5120-01-397-2964
- Part Number
- Manufacturer
- Status
- 10-922
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 10-922
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 10-922
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-397-2964
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Rigid
- Overall Length [ABHP]
- 3.500 Inches Nominal
- Drive Surface Size [ATNC]
- 0.250 Inches Nominal Both Ends
- Drive End Shape [CTCT]
- Square First End Internal
- Drive End Shape [CTCT]
- Square Second End External
- Features Provided [CBBL]
- Manual Tool
Similar Supply Items to 5120-01-397-2964
Freight Information 5120-01-397-2964
5120-01-397-2964 has freight characteristics.. 5120-01-397-2964 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
