5120-01-396-6071

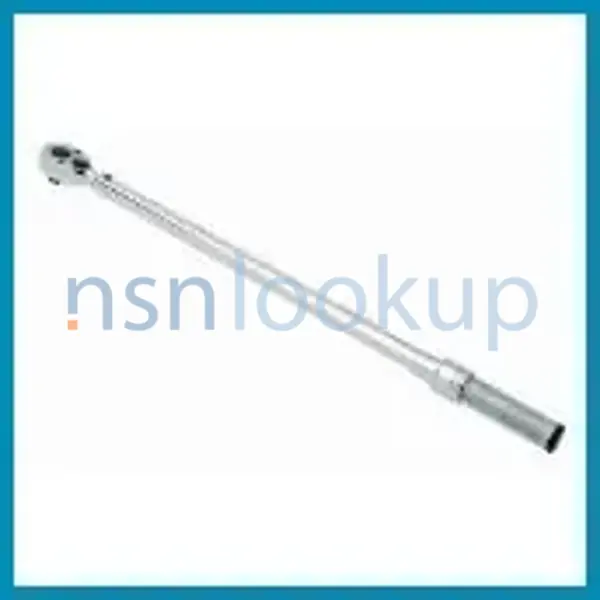

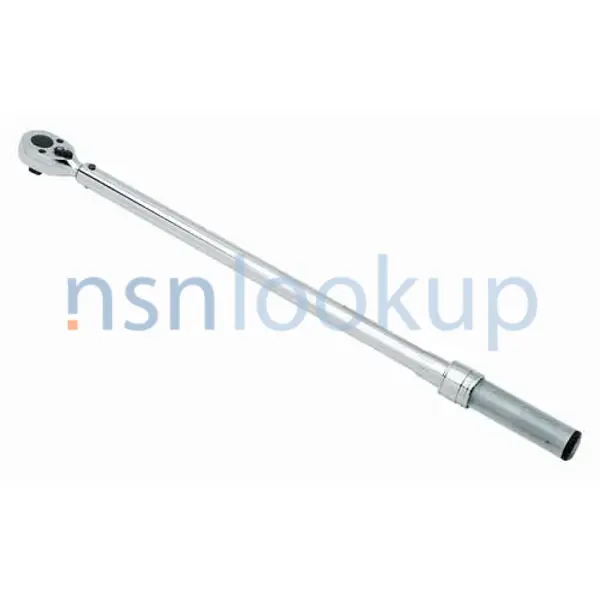

Torque Wrench
5120013966071 013966071 AS28431 TY2CL2 1502MRMH AS28431 GGG-W-2843 CL2SZ30-150 IN-LBS GGG-W-2843 GGG-W-2843 TY3CL2 B107.14M B107.300 B107.14 B107.14 TY2CLAST2DEB B107.14M TY2CLAST2DEB
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
November 2023
30
Marketplace 5120-01-396-6071
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-396-6071 5+ Documents (More...)
B107.300 B107.14 B107.14 TY2CLAST2DEB B107.14M TY2CLAST2DEB A manual tool for tightening various fasteners
TQR250 B107.14 TY2CLAST2DEBB107.14M 5120016039678 016039678 AS28431 TY2CL2 https//www.nsnlookup.com
TY2CL2 6016 B107.14 011332347 AS28431 TY2CL2 8710-1007 B107.14 https//www.nsnlookup.com /fsg-51/fsc-
TY2CL2GGG-W-2843B107.14B107.14 011332347 AS28431 TY2CL2 8710-1007 B107.14 /us 5120-01-355-1782 Torque
/fsg-51/fsc-5120/us 5120-01-396-6071 Torque Wrench 5120013966071 013966071 TY2CL2 1502MRMH AS28431GGG-W
-2843 CL2SZ30-150 IN-LBS GGG-W-2843GGG-W-2843 TY3CL2 B107.14M B107.300 TY2CL2 8710-1007 B107.14 TQR250
TY2CL2 8710-1007 B107.14 https//www.nsnlookup.com TQFR100 B107.14 TY2CLAST2DEB Torque -250 FT-LBS https
TY2CL2 8710-1007 B107.14 https//www.nsnlookup.com TQFR100 B107.14 TY2CLAST2DEB Torque -250 FT-LBS https
CL2SZ50-250 FT-LBS B107.14M B107.300 B107.14 TY2CLAST2DEB B107.14 10318434 A manual tool for tightening
TY2CLAST2DEBB107.14M 5120016039678 016039678 AS28431 TY2CL2 6016 B107.14 TY2CLAST2DEB https//www.nsnlookup.com
Restrictions 5120-01-396-6071
5120-01-396-6071 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-396-6071
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-396-6071
- US Coast Guard (C014)
- Effective Date:
- 1 Jun 1995
- US Air Force (FGGS)
- Effective Date:
- 1 Jun 1995
- NASA (G751)
- Effective Date:
- 1 Jun 1995
- NASA (G881)
- Effective Date:
- 1 Aug 1995
- US Marine Corps (MC14)
- Effective Date:
- 1 Jun 1995
- US Navy (N9QG)
- Effective Date:
- 1 Jun 1995
- Supplementary Collaborators:
- GTHSHEHD
- Supplementary Receivers:
- JV
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Oct 1996
- Singapore (YJ01)
- Effective Date:
- 1 Nov 2003
- Canada (ZC01)
- Effective Date:
- 1 Jun 2010
- Germany (ZG01)
- Effective Date:
- 1 Sep 1995
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jun 1997
- United Kingdom (ZK01)
- Effective Date:
- 1 Jun 2000
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
- Norway (ZT01)
- Effective Date:
- 1 Mar 1997
- Greece (ZU01)
- Effective Date:
- 1 May 2008
Approved Sources 5120-01-396-6071
- Part Number
- Manufacturer
- Status
- AS28431
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS28431 TY2CL2
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference

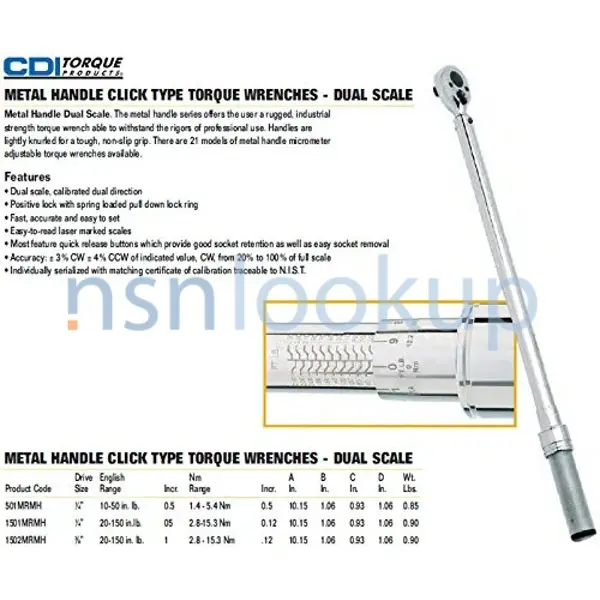

- 1502MRMH
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
- AS28431
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-2843 CL2SZ30-150 IN-LBS
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-2843
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-2843 TY3CL2
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14M
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.300
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14 TY2CLAST2DEB
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14M TY2CLAST2DEB
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1502MRMH
- 08194 - Consolidated Devices, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 1502MRMH
- 3LSJ2 - Snap-On Incorporated (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-396-6071
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.375 Inches Nominal Single End
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 2 Class
- Special Features [FEAT]
- Ratchet Head
- Torque Capacity [AJCG]
- 30.0 Inch-Pounds Minimum And 150.0 Inch-Pounds Maximum
- Torque Indicating Mechanism [AJCF]
- Micrometer
- Torque Scale Graduation [AJCH]
- 1.00 Inch-Pounds
- Torque Signal Method [AJDR]
- Feel Impulse
- Specification/Standard Data [ZZZK]
- 81343-Sae As28431 Professional/Industrial Association Standard
- Style Designator [STYL]
- Micrometer End Drive
- Surface Treatment [SFTT]
- Chromium Overall
DLA Procurement Analysis 5120-01-396-6071
Management Data 5120-01-396-6071
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 7
- Reviewed and determined non-essential
- Echelon Management:
- 02
- Operational Test:
- 3
- Calibration Required
NATO Stock Numbers Related to 5120-01-396-6071
Freight Information 5120-01-396-6071
5120-01-396-6071 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-396-6071 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-396-6071 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-396-6071 is not classified as a special type of cargo when transported by water. 5120-01-396-6071 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
