5120-01-396-5959

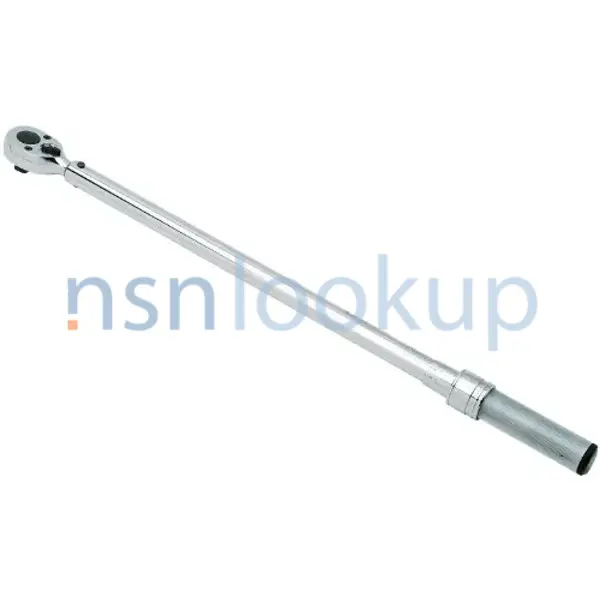

Torque Wrench
5120013965959 013965959 AS28431 AS28431 TY1CL2 2502MRMH B107.14M B107.300 B107.14 B107.14 TY2CLAST2DEA B107.14M TY2CLAST2DEA
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
August 2023
26
Marketplace 5120-01-396-5959
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-396-5959 5+ Documents (More...)
QJR3200B B107.14 011255190 TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA
B107.14 TY2CLAST2DEA TY3CL2 B107.14 011255190 TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA https//www.nsnlookup.com
AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA https//www.nsnlookup.com
011255190 TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA TY2CLAST2DEA B107.14M TY2CLAST2DEA B107.14MB107.300
AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA https//www.nsnlookup.com
QJR3200B B107.14 TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA AS28431 QJR3200A B107.14 https//www.nsnlookup.com
AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA https//www.nsnlookup.com
TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA TY3CL2 B107.14 011255190
TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA TY3CL2 B107.14 011255190
QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA
Restrictions 5120-01-396-5959
5120-01-396-5959 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-396-5959
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-396-5959
- US Army (A192)
- Effective Date:
- 1 Nov 1994
- Supplementary Receivers:
- AJCT
- US Coast Guard (C014)
- Effective Date:
- 1 Nov 1994
- US Air Force (FGGS)
- Effective Date:
- 1 Nov 1994
- NASA (G751)
- Effective Date:
- 1 Sep 1994
- US Marine Corps (MC14)
- Effective Date:
- 1 Nov 1994
- US Navy (N9QG)
- Effective Date:
- 1 Jun 2004
- Supplementary Collaborators:
- GT
- Singapore (YJ01)
- Effective Date:
- 1 Aug 2002
- Australia (ZA01)
- Effective Date:
- 1 May 1997
- Canada (ZC01)
- Effective Date:
- 1 May 2016
- Republic of Korea (ZH01)
- Effective Date:
- 1 Nov 2002
Approved Sources 5120-01-396-5959
- Part Number
- Manufacturer
- Status
- AS28431
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS28431 TY1CL2
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 2502MRMH
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
- B107.14M
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.300
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14 TY2CLAST2DEA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14M TY2CLAST2DEA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2502MRMH
- 08194 - Consolidated Devices, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 2502MRMH
- 3LSJ2 - Snap-On Incorporated (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS28431
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-396-5959
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.375 Inches Nominal Single End
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 2 Class
- Overall Length [ABHP]
- 14.750 Inches Nominal
- Special Features [FEAT]
- Ratchet Head; Plain Steel Handle
- Torque Capacity [AJCG]
- 30.0 Inch-Pounds Minimum And 250.0 Inch-Pounds Maximum
- Torque Indicating Mechanism [AJCF]
- Micrometer
- Torque Scale Graduation [AJCH]
- 1.00 Inch-Pounds
- Torque Signal Method [AJDR]
- Audible
- Specification/Standard Data [ZZZK]
- 81343-Sae As28431 Professional/Industrial Association Standard
- Style Designator [STYL]
- Micrometer End Drive
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-396-5959
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- 3
- Calibration Required
NATO Stock Numbers Related to 5120-01-396-5959
Freight Information 5120-01-396-5959
5120-01-396-5959 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-396-5959 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-396-5959 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-396-5959 is not classified as a special type of cargo when transported by water. 5120-01-396-5959 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
