5120-01-396-5955

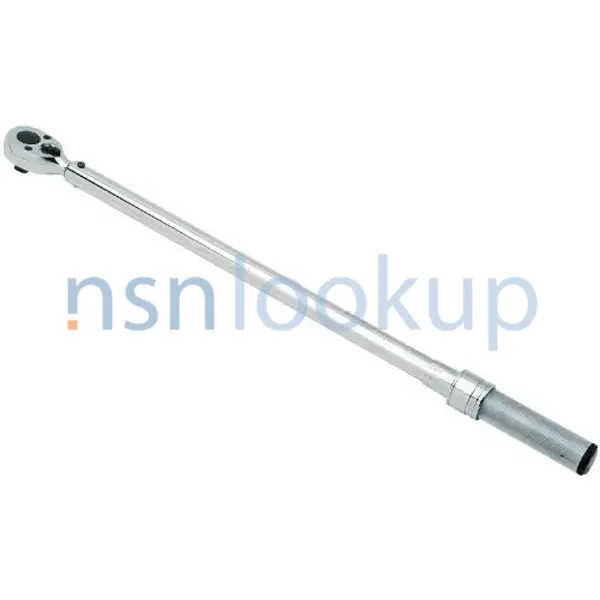

Torque Wrench
5120013965955 013965955 AS28431 TY1CL2 AS28431 TY1CL1 2002MRMH B107.300 AS28431 B107.14 B107.14 TY2CLAST2DEA
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
August 2023
28
Marketplace 5120-01-396-5955
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-396-5955 5+ Documents (More...)
B107.14 011255190 TY1CL2 -686 TY3CL2 B107.14 TY2CLAST2DEA https TY2CLAST2DEA AS28431 TY1CL2 TCI-150
TY2CLAST2DEA https TY2CLAST2DEA AS28431 TY1CL2 TCI-150 TCI-150RA TW150R 2477 GGG-W-686 TY3CL2 B107.14
TY1CL2 TCI-150 TCI-150RA TW150R 2477 GGG-W-686 TY3CL2 B107.14 TY2CLAST2DEA https//www.nsnlookup.com AS28431
TCI-150RA TW150R 2477 GGG-W-686 TY3CL2 B107.14 TY2CLAST2DEA https TY2CLAST2DEA AS28431 TY1CL2 https/
TY1CL2 TCI-150 TCI-150RA TW150R 2477 GGG-W-686 TY3CL2 B107.14 TY2CLAST2DEA https TY2CLAST2DEA AS28431
TY1CL2 TCI-150 TCI-150RA TW150R 2477 GGG-W-686 TY3CL2 B107.14 TY2CLAST2DEA AS28431 TY1CL2 TCI-150 TCI
Torque Wrench 5120013965955 013965955 TY1CL2 AS28431 TY1CL1 2002MRMH B107.300 AS28431 B107.14 B107.14
TY2CLAST2DEA A manual tool for tightening TY1CL2 TCI-150 TCI-150RA TW150R 2477 GGG-W-686 TY3CL2 B107.14
-150RA TW150R 2477 GGG-W-686 TY3CL2 B107.14 TY2CLAST2DEA 28414 28413 GGG-W AS28431 TY1CL2B107.3006004MFRMHB107.14
B107.14 TY2CLAST1DEB B107.300 B107.300B107.14 TY2CLAST2DEA AS28431 - 01 B107.14QJR4600AB107.14 Torque
Restrictions 5120-01-396-5955
5120-01-396-5955 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-396-5955
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-396-5955
- US Army (A192)
- Effective Date:
- 1 Nov 1994
- Supplementary Receivers:
- CT
- US Coast Guard (C014)
- Effective Date:
- 1 Nov 1994
- US Air Force (FGGS)
- Effective Date:
- 1 Nov 1994
- NASA (G751)
- Effective Date:
- 1 Sep 1994
- US Marine Corps (MC14)
- Effective Date:
- 1 Nov 1994
- US Navy (N9QG)
- Effective Date:
- 1 Jun 2004
- Supplementary Collaborators:
- GT
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jul 2013
Approved Sources 5120-01-396-5955
- Part Number
- Manufacturer
- Status
- AS28431
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS28431 TY1CL2
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 2002MRMH
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
- AS28431 TY1CL1
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2002MRMH
- 08194 - Consolidated Devices, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.300
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2002MRMH
- 3LSJ2 - Snap-On Incorporated (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS28431
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14 TY2CLAST2DEA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-396-5955
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.375 Inches Nominal Single End
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 1 Class
- Overall Length [ABHP]
- 8.750 Inches Nominal
- Special Features [FEAT]
- Ratchet Head; Plain Steel Handle
- Torque Capacity [AJCG]
- 30.0 Inch-Pounds Minimum And 200.0 Inch-Pounds Maximum
- Torque Indicating Mechanism [AJCF]
- Micrometer
- Torque Scale Graduation [AJCH]
- 1.00 Inch-Pounds
- Torque Signal Method [AJDR]
- Audible
- Specification/Standard Data [ZZZK]
- 81431-Sae As28431 Professional/Industrial Association Standard
- Style Designator [STYL]
- Micrometer End Drive
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-396-5955
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- 3
- Calibration Required
NATO Stock Numbers Related to 5120-01-396-5955
Freight Information 5120-01-396-5955
5120-01-396-5955 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-396-5955 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-396-5955 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-396-5955 is not classified as a special type of cargo when transported by water. 5120-01-396-5955 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
