5120-01-396-5942

Torque Wrench

5120013965942 013965942 B107.300 B107.14 B107.14 TY1CLCST3 10005LDFN

A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench

5120-01-396-5942 WRENCH,TORQUE 5120013965942 013965942

Managed by United States
NSN Created on 22 Sep 1994
Data Last Changed
May 2023
NATO Update Count
12
NATO Data Quality
5120-01-396-5942 WRENCH,TORQUE 5120013965942 013965942 1/2

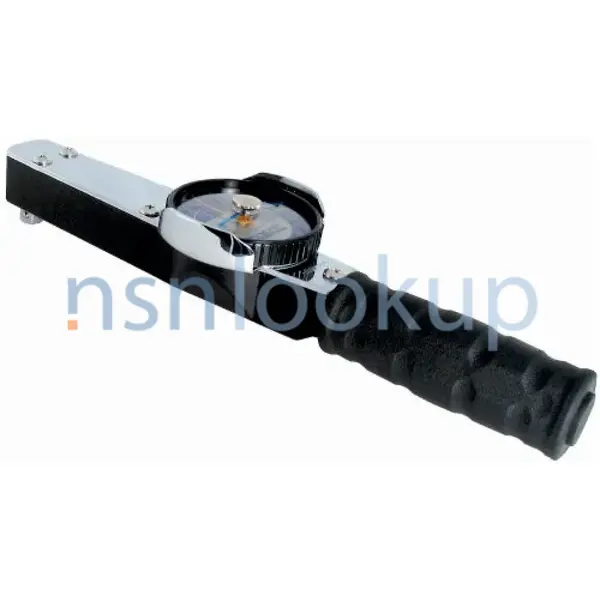

5120-01-396-5942 Photo 1/2
STYL Style 850 for 5120-01-396-5942 2/2
NSN 5120-01-396-5942 (Identification) 2/2

5120-01-396-5942 Stock and Availability Marketplace 5120-01-396-5942

Need Help?
Request a Quotation from participating marketplace vendors

5120-01-396-5942 Related Documents Related Documents 5120-01-396-5942 5+ Documents (More...)

B107.300 B107.14 B107.14 TY1CLCST3 10005LDFN A manual tool for tightening various fasteners to a precise
B107.14 WRENCH,TORQUE 1 EA NS Request Quotation Subscribe to View Vendor Details... 5120-01-396-5942
WRENCH,TORQUE RQST NS Request Quotation Updated Every Day 10005LDFN RQST NE Updated Every Day 5120-01
B107.14 B107.14 TY1CLCST3 2503LDFN A manual tool for tightening various fasteners to a precise torque
B107.300 WRENCH 5 EA NS Request Quotation Subscribe to View Vendor Details...
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-396-5942 Torque Wrench 5120013965942 013965942
B107.14 TY1CLCST3 TEC175FU B107.14M B107.14M TY1CLBST3 A manual tool for tightening various fasteners
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-104-0613 Torque Wrench 5120001040613 001040613 B107.14
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-134-4362 Torque Wrench 5120011344362 011344362 B107.14
B107.14 B107.14 TY1CLCST3 TEC602A TEC602 A manual tool for tightening various fasteners to a precise
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-116-9395 Torque Wrench 5120001169395 001169395 B107.14
TY1CLCST3 B107.14M B107.14M TY1CLBST3 TQ51AFU A-A-2411 Managed by United States NSN Created B107.14
B107.14 B107.14 TY1CLCST3 J6133F 6133F P12612597 GGG-W-686 TY3CL3 6133 6133A 6133AB A manual tool for
6133AB RQST NE Updated Every Day 6133 RQST NE Updated Every Day 6133A RQST NE Updated Every Day 5120- B107.14
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-535-3491 Torque Wrench 5120015353491 015353491 B107.14

5120-01-396-5942 Demil Restrictions 5120-01-396-5942

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC:

5120-01-396-5942 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

5120-01-396-5942 HTS and ScheduleB Import and Export 5120-01-396-5942

5120-01-396-5942 End Users End Users 5120-01-396-5942

US Coast Guard (C014)
Effective Date:
1 Nov 1994
US Air Force (FGGS)
Effective Date:
1 Nov 1994
NASA (G751)
Effective Date:
1 Sep 1994
US Navy (N9QG)
Effective Date:
1 Jan 2014
Supplementary Collaborators:
GGGT
Czech Republic (WZ01)
Effective Date:
1 May 2011

5120-01-396-5942 Manufacturers Approved Sources 5120-01-396-5942

5120-01-396-5942 Technical Data Datasheet 5120-01-396-5942

Characteristic
Specifications
FIIG
A102A0
Drive End Shape [CTCT]
Square Single End External
Drive Surface Size [ATNC]
1.000 Inches Nominal Single End
Material [MATT]
Steel Overall
Overall Length [ABHP]
74.000 Inches Nominal
Special Features [FEAT]
Memory Indicator
Torque Capacity [AJCG]
0.0 Foot-Pounds Minimum And 1000.0 Foot-Pounds Maximum
Torque Indicating Mechanism [AJCF]
Dial
Torque Scale Graduation [AJCH]
20.00 Foot-Pounds
Torque Signal Method [AJDR]
Dial Indicator
Style Designator [STYL]
Rigid Frame End Drive
Surface Treatment [SFTT]
Chromium Overall

5120-01-396-5942 Management Data Management Data 5120-01-396-5942

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Dec 2020
Department of the Air Force (DF)
EA
Subscribe
Feb 2020
Department of the Air Force (DF)
EA
Subscribe
Jun 2014
US Marine Corps (DM)
EA
Subscribe
MOE
USC
Code
Statement
Order of Use
Jump To Code
Qty Per Assy
UOM
Technical Document
Quantative Expression
US Marine Corps (DM)
M
V
Discontinued W/O Replacement

Air Force Air Force

Fund:
SF
Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
Budget:
9
57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
Price Validation Code:
N
The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ā€œLā€ or ā€œFā€, then it must be evaluated locally where purchased or fabricated.
Expendability
Recoverability
Repairability:
N
Expendable. Condemn at User. Stock Fund (except Munitions).

Navy Navy

Cognizance:
9Q

Marine Corps Marine Corps

Stores Account:
1
Stock Fund Account Item
Combat Essentiality:
7
Reviewed and determined non-essential
Echelon Management:
02
Operational Test:
No Special Procedures

5120-01-396-5942 Similar Items Similar Supply Items to 5120-01-396-5942

5120-01-396-5942 Freight Data Freight Information 5120-01-396-5942

5120-01-396-5942 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-396-5942 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-396-5942 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-396-5942 is not classified as a special type of cargo when transported by water. 5120-01-396-5942 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
