5120-01-396-5939
Torque Wrench
5120013965939 013965939 3504LDFN
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
May 2023
10
Marketplace 5120-01-396-5939
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-396-5939 1+ Documents (More...)
Updated Every Day 5120-01-396-5939 RQST NE Updated Every Day 5120-01-396-5939 RQST Updated Every Day

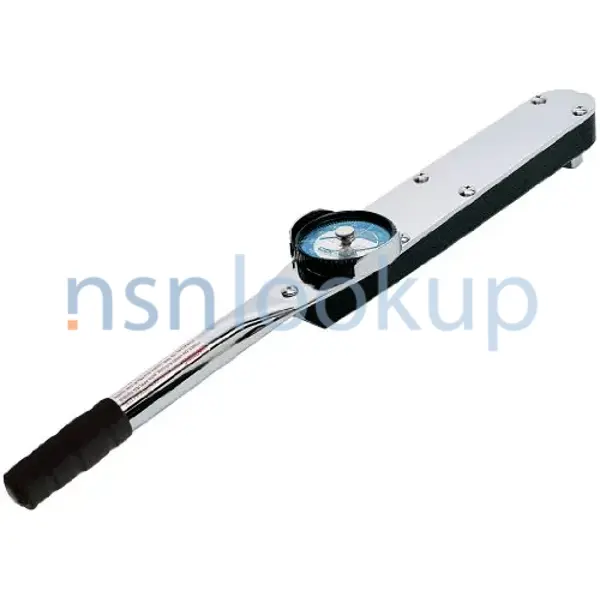

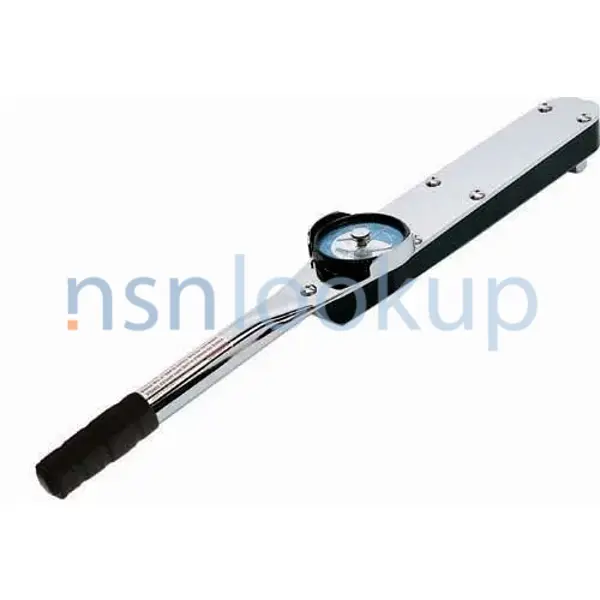

/fsg-51/fsc-5120/us 5120-01-396-5939 Torque Wrench 5120013965939013965939 Photo 1/3 5120-01-396-5939
Restrictions 5120-01-396-5939
5120-01-396-5939 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-396-5939
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-396-5939
- Australia (ZA01)
- Effective Date:
- 1 Mar 1997
Approved Sources 5120-01-396-5939
- Part Number
- Manufacturer
- Status
- 3504LDFN
- Manufacturer
- 55719 - Idsc Holdings Llc (Active)
- Primary Buy
- Primary Buy
- 3504LDFN
- 3LSJ2 - Snap-On Incorporated (Replaced)
- Original Design
- Original Design
- 3504LDFN
- 08194 - Consolidated Devices, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-396-5939
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.750 Inches Nominal Single End
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 27.875 Inches Nominal
- Special Features [FEAT]
- Memory Indicator
- Torque Capacity [AJCG]
- 0.0 Foot-Pounds Minimum And 350.0 Foot-Pounds Maximum
- Torque Indicating Mechanism [AJCF]
- Dial
- Torque Scale Graduation [AJCH]
- 10.00 Foot-Pounds
- Torque Signal Method [AJDR]
- Dial Indicator
- Style Designator [STYL]
- Rigid Frame End Drive
- Surface Treatment [SFTT]
- Chromium Overall
Similar Supply Items to 5120-01-396-5939
Freight Information 5120-01-396-5939
5120-01-396-5939 has freight characteristics.. 5120-01-396-5939 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
