5120-01-396-5937

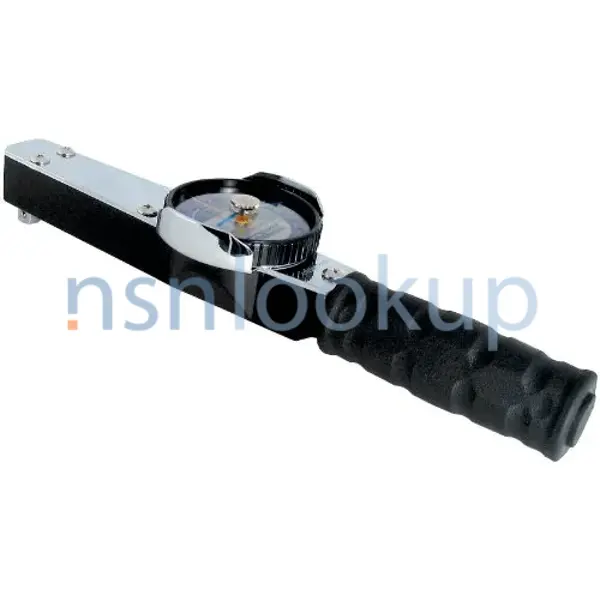

Torque Wrench
5120013965937 013965937 B107.300 B107.14 TY1CLCST3 B107.14 28KP818 B107.14M B107.14M TY1CLBST3 1753LDF 1753LDFN
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
November 2023
28
Marketplace 5120-01-396-5937
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-396-5937 5+ Documents (More...)
Request Quotation Updated Every Day 1753LDFN RQST NE Updated Every Day 5120-01-396-5937 RQST NE Updated
various fasteners B107.14 TECP1FUA TECP1FU B107.14M TY1CLBST3 TY1CLAST1 https//www.nsnlookup.com /fsg
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-396-5751 Torque Wrench 5120013965751013965751 1753LDF
Torque Wrench 5120013965937 013965937 Wrench5120013965937 013965937 B107.300 B107.14 TY1CLCST3
TECP1FUA TECP1FU B107.14M TY1CLBST3 TY1CLAST1 A manual tool for https//www.nsnlookup.com /fsg https/
/www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-104-0613 Torque Wrench 5120001040613 001040613 B107.14
TY1CLBST3 TY1CLAST1 A manual tool for tightening various TY1CLCST3 B107.14 B107.14M TE602FU B107.14M
TY1CLBST3 A manual tool for tightening TECP1FUA TECP1FU B107.14M TY1CLBST3 https//www.nsnlookup.com
TY1CLBST3 GGG-W-686 TY2CL1STC Torque Wrench 5120011352510011352510 3504DFN TEC352FU B107.14M TY1CLBST3
B107.14 B107.14 TY1CLCST3 TEC352FUA GGG-W-686 B107.14M 3504DFN TEC352FU B107.14M TY1CLBST3 GGG-W-686
Restrictions 5120-01-396-5937
5120-01-396-5937 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-396-5937
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-396-5937
- US Army (A192)
- Effective Date:
- 1 Nov 1994
- US Air Force (FGGS)
- Effective Date:
- 1 Nov 1994
- NASA (G751)
- Effective Date:
- 1 Sep 1994
- US Marine Corps (MC14)
- Effective Date:
- 1 Nov 1994
- US Navy (N9QG)
- Effective Date:
- 1 Nov 1994
- Supplementary Collaborators:
- GTHD
- Australia (ZA01)
- Effective Date:
- 1 Mar 1997
Approved Sources 5120-01-396-5937
- Part Number
- Manufacturer
- Status
- B107.300
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.14 TY1CLCST3
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- B107.14
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 28KP818
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 1753LDFN
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
- B107.14M
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14M TY1CLBST3
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1753LDF
- 08194 - Consolidated Devices, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 1753LDFN
- 08194 - Consolidated Devices, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 1753LDFN
- 3LSJ2 - Snap-On Incorporated (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 28KP818
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-396-5937
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And C Class And 3 Style
- Overall Length [ABHP]
- 21.500 Inches Nominal
- Special Features [FEAT]
- Memory Indicator; Dual Scale; 5 Nm Graduations
- Torque Capacity [AJCG]
- 0.0 Foot-Pounds Minimum And 175.0 Foot-Pounds Maximum And 0.0 Meter-Newton Minimum And 240.0 Meter-Newton Maximum
- Torque Indicating Mechanism [AJCF]
- Dial
- Torque Scale Graduation [AJCH]
- 5.00 Foot-Pounds
- Torque Signal Method [AJDR]
- Dial Indicator
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.14 Professional/Industrial Association Standard
- Style Designator [STYL]
- Rigid Frame End Drive
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-396-5937
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- 3
- Calibration Required
Similar Supply Items to 5120-01-396-5937
Freight Information 5120-01-396-5937
5120-01-396-5937 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-396-5937 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-396-5937 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-396-5937 is not classified as a special type of cargo when transported by water. 5120-01-396-5937 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
