5120-01-396-5917

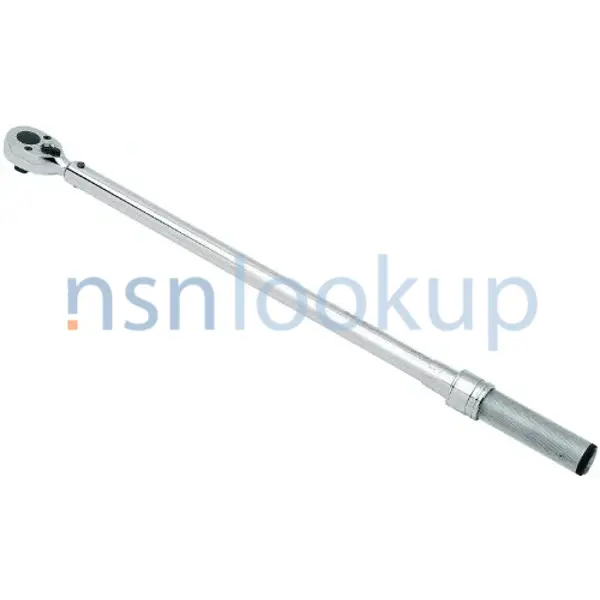

Torque Wrench
5120013965917 013965917 AS28431 AS28431 TY1CL2 2503MFRMH B107.14M B107.300 B107.14M TY2CLAST2DEA B107.14 B107.14 TY2CLAST2DEA
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
