5120-01-396-5914

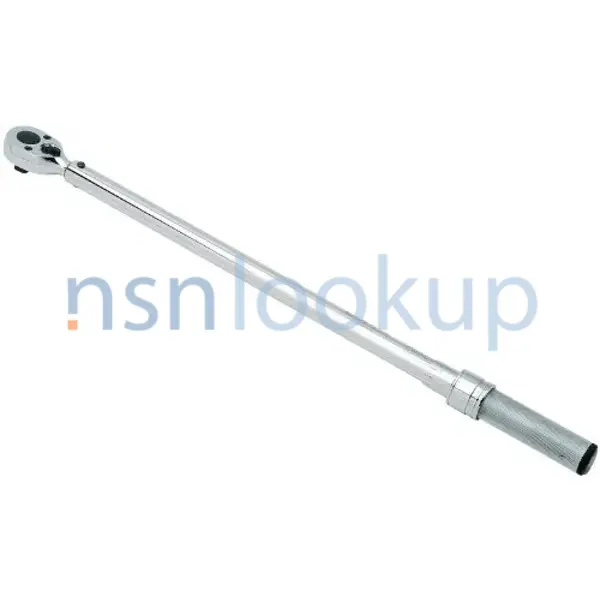

Torque Wrench
5120013965914 013965914 AS28431 AS28431 TY1CL2 25003MRMH CDI 25003MRMH B107.14 TY2CLAST2DEA B107.300 B107.14
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
Managed by United States
NSN Created on 22 Sep 1994
Data Last Changed
August 2023
August 2023
NATO Update Count
30
30
NATO Data Quality
Marketplace 5120-01-396-5914
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-396-5914 5+ Documents (More...)
AS28431 AS28431 TY1CL2 25003MRMH CDI 25003MRMH B107.14 TY2CLAST2DEA B107.300 B107.14 A manual tool for
GGG-W-686 TY3CL2 B107.14 011255190 TY1CL2 AS28431 https TY2CLAST2DEA AS28431 TY1CL2 TCI-150 TCI-150RA
AS28431 QJR3200A B107.14 TY2CLAST2DEA https//www.nsnlookup.com /fsg https//www.nsnlookup.com https//
GGG-W-686 TY3CL2 B107.14 011255190 TY1CL2 AS28431 https TY2CLAST2DEA AS28431 TY1CL2 TCI-150 TCI-150RA
AS28431 QJR3200A B107.14 TY2CLAST2DEA https//www.nsnlookup.com /fsg https//www.nsnlookup.com https//
AS28431 TY1CL2 10002MRMH B107.300 B107.14 B107.14 TY2CLAST2DEA A manual tool for tightening various
QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA AS28431 TY1CL2 TCI-150 TCI-150RA
B107.300 B107.14M B107.14 TY2CLAST2DEA A manual 011255190 TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA
QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA AS28431 TY1CL2 TCI-150 TCI-150RA
B107.300 B107.14M B107.14 TY2CLAST2DEA A manual 011255190 TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA
AS28431 TY1CL2 QD3RM30A QD3RM30 B107.300 B107.14 QC3RM30 B107.14 TY2CLAST2DEA 5120PL0932882 A manual
QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B TCI-150RA TW150R 2477 GGG-W- 686 TY3CL2 B107.14 011255190
TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA https//www.nsnlookup.com /fsg https//www.nsnlookup.com
QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B TCI-150RA TW150R 2477 GGG-W- 686 TY3CL2 B107.14 011255190
TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA https//www.nsnlookup.com /fsg https//www.nsnlookup.com
TY1CL2 J6020AB 1ARN1 6020-1 B107.300 6020A 6020AB B107.14 TY2CLAST2DEA AS28431 6020 B107.14 A manual
GGG-W-686 TY3CL2 B107.14 TY2CLAST2DEA 28414 TY2CLAST2DEA 28414 AS28431 TY1CL2 https//www.nsnlookup.com
6014 B107.14 TY2CLAST2DEA A manual tool for tightening various fasteners AS28431 QJR3200A B107.14 TY2CLAST2DEA
GGG-W-686 TY3CL2 B107.14 TY2CLAST2DEA 28414 TY2CLAST2DEA 28414 AS28431 TY1CL2 https//www.nsnlookup.com
6014 B107.14 TY2CLAST2DEA A manual tool for tightening various fasteners AS28431 QJR3200A B107.14 TY2CLAST2DEA
Photo 3/4 5120-01-589-8706 Photo 4/4 - - United https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-396-5914
Torque Wrench 5120013965914 013965914 www.nsnlookup.com /fsg https//www.nsnlookup.com https//www.nsnlookup.com
AssyUOMTechnical DocumentQuantative ExpressionDepartment of the Navy (DN)NAConsolidated With 5120-01-396-5914
Torque Wrench 5120013965914 013965914 www.nsnlookup.com /fsg https//www.nsnlookup.com https//www.nsnlookup.com
AssyUOMTechnical DocumentQuantative ExpressionDepartment of the Navy (DN)NAConsolidated With 5120-01-396-5914
Restrictions 5120-01-396-5914
5120-01-396-5914 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-396-5914
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-396-5914
- US Army (A192)
- Effective Date:
- 1 Nov 1994
- Supplementary Receivers:
- CT
- US Coast Guard (C014)
- Effective Date:
- 1 Nov 1994
- US Air Force (FGGS)
- Effective Date:
- 1 Nov 1994
- NASA (G751)
- Effective Date:
- 1 Sep 1994
- US Marine Corps (MC14)
- Effective Date:
- 1 Nov 1994
- US Navy (N9QG)
- Effective Date:
- 1 Jun 2004
- Supplementary Collaborators:
- GT
Approved Sources 5120-01-396-5914
- Part Number
- Manufacturer
- Status
- AS28431
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS28431 TY1CL2
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 25003MRMH
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
- CDI 25003MRMH
- 00NS2 - Kipper Tool Company (Active)
- Secondary Buy
- Secondary Buy
- B107.14 TY2CLAST2DEA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.300
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 25003MRMH
- 3LSJ2 - Snap-On Incorporated (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 25003MRMH
- 08194 - Consolidated Devices, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS28431
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-396-5914
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 2 Class
- Overall Length [ABHP]
- 18.000 Inches Nominal
- Special Features [FEAT]
- Ratchet Head; Plain Steel Handle
- Torque Capacity [AJCG]
- 300.0 Inch-Pounds Minimum And 2500.0 Inch-Pounds Maximum
- Torque Indicating Mechanism [AJCF]
- Micrometer
- Torque Scale Graduation [AJCH]
- 10.00 Inch-Pounds
- Torque Signal Method [AJDR]
- Audible
- Specification/Standard Data [ZZZK]
- 81343-Sae As28431 Professional/Industrial Association Standard
- Style Designator [STYL]
- Micrometer End Drive
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-396-5914
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2023
- Department of the Army (DA)
- EA
- Subscribe
- EA
- Feb 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5120-01-589-8706
- 4
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5120-01-396-5914
5120-66-154-5290 5120-12-384-3257 5120-25-135-7395 5120-21-870-1566 5120-12-312-4120 5120-99-433-0354 5120-99-788-6215 5120-99-122-6175 5120-22-125-4799 5120-34-030-0586 5120-12-345-4269 5120-12-367-1978 5120-99-258-1646 5120-99-108-9853 5120-99-738-9953 5120-22-309-1479 5120-21-880-8042 5120-99-739-0718
Freight Information 5120-01-396-5914
5120-01-396-5914 has freight characteristics.. 5120-01-396-5914 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
