Premium Information is available for this item - Upgrade for $1 a day
5120-01-396-5900

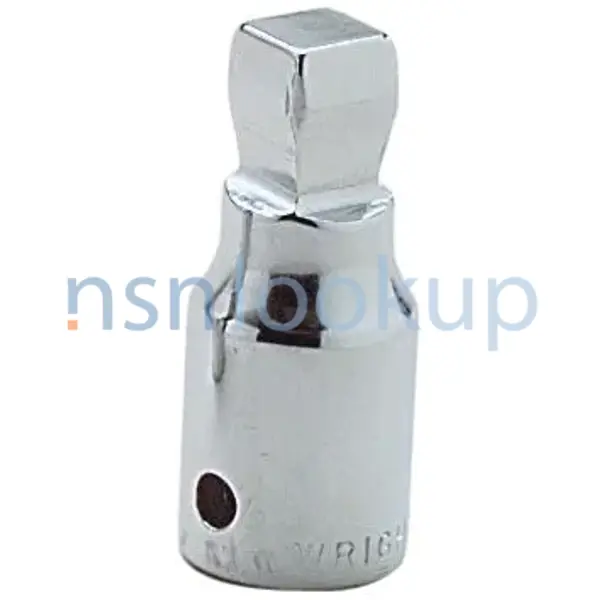

Socket Wrench Extension
5120013965900 013965900 4409
An attachment for extending the drive length of socket wrenches or handles. The body of the item may be either a coil spring or a solid bar. The items permit the connection of ends that are designed for direct mating to each other. See also ADAPTER, SOCKET WRENCH; UNIVERSAL JOINT, SOCKET WRENCH ATTACHMENT; and ADAPTER, SOCKET, CROWFOOT SOCKET WRENCH HEAD. View more Socket Wrench Extension
May 2023
7
Marketplace 5120-01-396-5900
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-396-5900 3+ Documents (More...)
/fsg-51/fsc-5120/us 5120-01-396-5900 Socket Wrench Extension 5120013965900,4409 Every Day 5120-01-396
5120-01-396-5900 Socket Wrench Extension 5120013965900,4409 4409 An attachment for Every Day 5120-01-
Restrictions 5120-01-396-5900
5120-01-396-5900 is a Socket Wrench Extension that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-396-5900
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-396-5900
- Denmark (ZS01)
- Effective Date:
- 1 Jul 2006
Approved Sources 5120-01-396-5900
- Part Number
- Manufacturer
- Status
- 4409
- Manufacturer
- 79808 - Wright Tool Co (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-01-396-5900
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Rigid
- Overall Length [ABHP]
- 1.500 Inches Nominal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Both Ends
- Drive End Shape [CTCT]
- Square First End Internal
- Drive End Shape [CTCT]
- Square Second End External
- Features Provided [CBBL]
- Manual Tool
- Special Features [FEAT]
- Wobble Type
Similar Supply Items to 5120-01-396-5900
Freight Information 5120-01-396-5900
5120-01-396-5900 has freight characteristics.. 5120-01-396-5900 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
