5120-01-377-0198

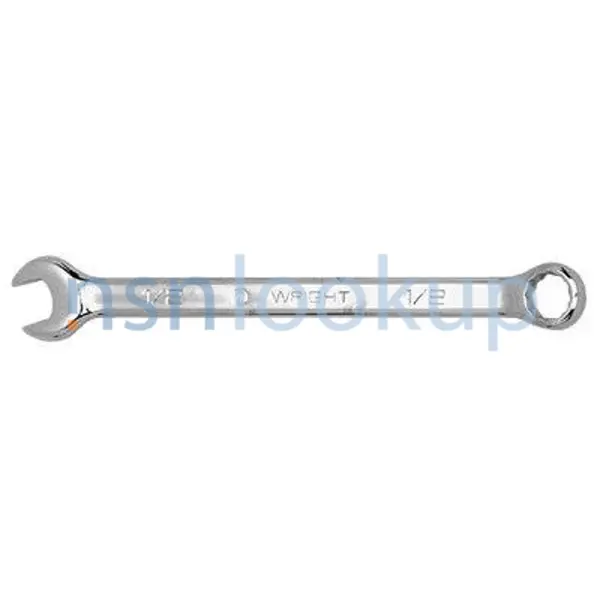

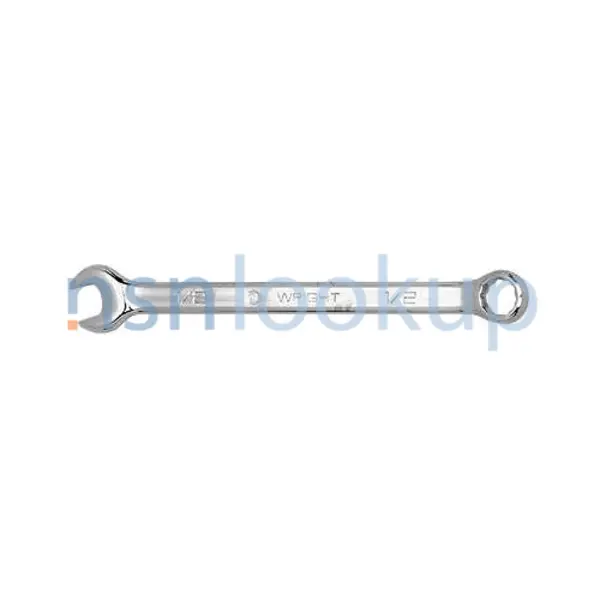

Combination Box And Open End Wrench
5120013770198 013770198 AS954 AS954 TY2CL4STC 1208 AS954 TY2CL4STA
A nonadjustable wrench having a box wrenching feature on one end and an open end wrenching feature on the other end. Excludes WRENCH, BOX and WRENCH, OPEN END. View more Combination Box And Open End Wrench
November 2023
16
Marketplace 5120-01-377-0198
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5120-01-377-0198 5+ Documents (More...)
-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA
-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA
TY2CL4STA GGG-W-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 AS954 TY2CL4STA GGG-W-636 AS954
TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA GGG-W-636 AS954 TY2CL4STC STP https//www.nsnlookup.com
-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA
-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA
-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA
-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA
-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA
GGG-W-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA -636 AS954
Restrictions 5120-01-377-0198
5120-01-377-0198 is a Combination Box And Open End Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-377-0198
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-377-0198
- US Coast Guard (C014)
- Effective Date:
- 1 Jul 1993
- US Air Force (FGGS)
- Effective Date:
- 1 Jul 1993
- NASA (G751)
- Effective Date:
- 1 Jun 1993
- US Marine Corps (MC14)
- Effective Date:
- 1 Jul 1993
- US Navy (N9QG)
- Effective Date:
- 1 Jun 2004
- Supplementary Collaborators:
- GTHE
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5120-01-377-0198
- Part Number
- Manufacturer
- Status
- AS954
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS954 TY2CL4STC
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 1208
- 79808 - Wright Tool Co (Active)
- Secondary Buy
- Secondary Buy
- AS954 TY2CL4STA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS954
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-377-0198
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Head Angle [CRCS]
- 15.0 Degrees Nominal
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 4 Class And A Style
- Overall Length [ABHP]
- 4.450 Inches Minimum And 5.150 Inches Maximum
- Special Features [FEAT]
- Full Polish
- Wrenching Surface Shape [CRWY]
- 12 Point Second End Internal
- Wrenching Surface Shape [CRWY]
- Oval First End Internal
- Wrenching Surface Size [AJBR]
- 0.250 Inches Nominal Both Ends
- Wrenching End Offset Angle [CSPX]
- 15.0 Degrees Nominal
- Specification/Standard Data [ZZZK]
- 81343-Sae As954 Professional/Industrial Association Standard
- Style Designator [STYL]
- Offset
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-377-0198
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 7
- Reviewed and determined non-essential
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5120-01-377-0198
Freight Information 5120-01-377-0198
5120-01-377-0198 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-377-0198 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-377-0198 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-377-0198 is not classified as a special type of cargo when transported by water. 5120-01-377-0198 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
