5120-01-375-7760

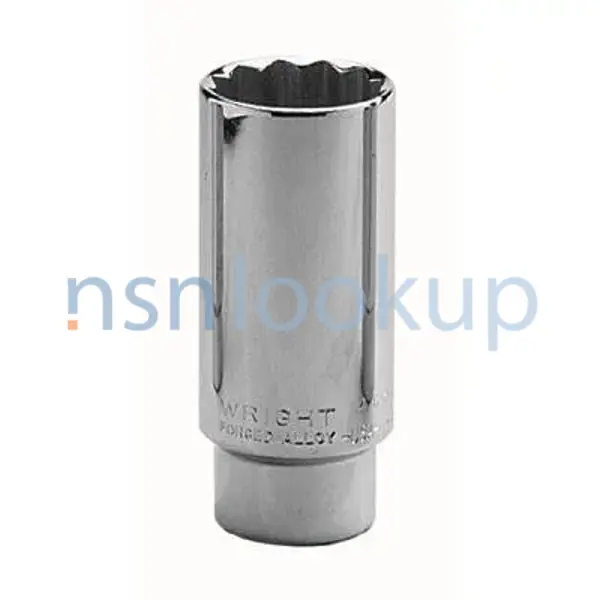

Socket Wrench Socket
5120013757760 013757760 AS954 AS954 TY1CL1STB 4642 B107.1 B107.1 TY1CL1
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
May 2023
12
Marketplace 5120-01-375-7760
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-375-7760 5+ Documents (More...)
TY1CL1STB 5416 An item having an internal drive at one end B107.1 TY1CL1 319SW B107.1 GGG-W-641 B107.1
FRS S461 STP 5346 J5346 1FX14 B107.1 5346 B107.1 TY1CL1 An item having an internal TY1CL1STB 5416 An
TY1CL1 319SW B107.1 GGG-W-641 B107.1 TY1CL1 https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-589
Socket Wrench Socket 5120013757760 013757760 AS954 TY1CL1STB 4642 B107.1B107.1 TY1CL1 An item having
B107.1 CL1STB B107.1 AS954 https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-430-2908 Socket Wrench
TY1CL2 GGG-W-641 B107.1 B107.1 CL1STB A-A-1403 An item having AS954 SOCKET,SOCKET WRENCH 1 EA NS Request
TY1CL1 641 TY2CL2STAB107.1 SK-3180 GGG-W-641 M-1218 B107.1 TY1CL1 An item AS954 TY1CL1STA 43918 1650839
TY1CL1 An item AS954 TY1CL1STA 43918 1650839 SK-3180 GGG-W-641 M-1218 B107.1 TY1CL1 An SK-3180 GGG-W
Set 5120016313963,AS954 AS954 TY1CL1STB 510007301N 512000NIB0115 AS954 TY1CL1STA A group of SOCKET, SOCKET
5120016871759 016871759 AS954 TY1CL1STA SW401 FRS SW401 11A7000792-13 AS954 TY1CL1STB An item having
Restrictions 5120-01-375-7760
5120-01-375-7760 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-375-7760
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-375-7760
- US Army (A192)
- Effective Date:
- 1 Jul 1993
- Supplementary Receivers:
- CT
- US Coast Guard (C014)
- Effective Date:
- 1 Sep 1993
- US Air Force (FGGS)
- Effective Date:
- 1 Sep 1993
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Sep 1993
- US Navy (N9QG)
- Effective Date:
- 1 Jun 2004
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5120-01-375-7760
- Part Number
- Manufacturer
- Status
- AS954
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS954 TY1CL1STB
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 4642
- 79808 - Wright Tool Co (Active)
- Secondary Buy
- Secondary Buy
- B107.1
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.1 TY1CL1
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS954
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-375-7760
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Features Provided [CBBL]
- Manual Tool
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 1 Class And B Style
- Overall Length [ABHP]
- 3.047 Inches Nominal
- Wrenching Surface Shape [CRWY]
- 12 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 1.312 Inches Nominal Single End
- Specification/Standard Data [ZZZK]
- 81343-Sae As954 Professional/Industrial Association Standard
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Chromium Overall
NATO Stock Numbers Related to 5120-01-375-7760
Freight Information 5120-01-375-7760
5120-01-375-7760 has freight characteristics.. 5120-01-375-7760 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
