5120-01-368-1828

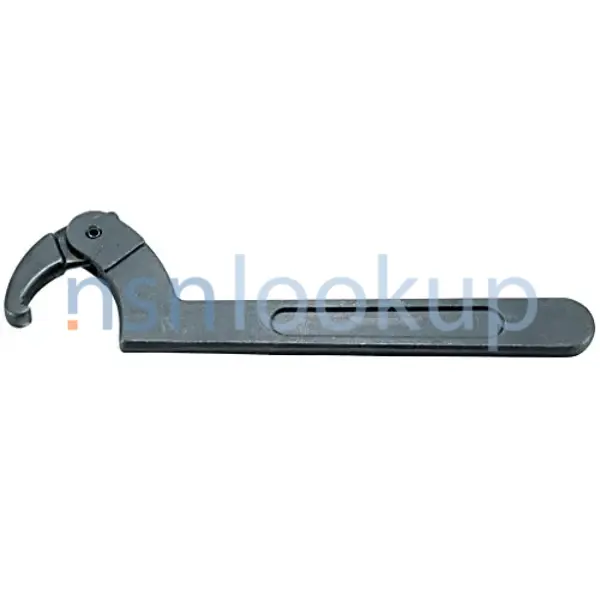

Spanner Wrench
5120013681828 013681828 34-313
A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG. View more Spanner Wrench
May 2023
14
Marketplace 5120-01-368-1828
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-368-1828 4+ Documents (More...)
/fsg-51/fsc-5120/us
-368-1828 RQST NE Updated Every Day 5120-01-368-1828 RQST Updated Every Day 5120-01-368-1828 RQST NE
Updated Every Day 34-313 RQST NE Updated Every Day 5120-01 -368-1828 RQST NE Updated Every Day 5120-01
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
Restrictions 5120-01-368-1828
5120-01-368-1828 is a Spanner Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-368-1828
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-368-1828
- Spain (YB01)
- Effective Date:
- 1 Jun 2005
Approved Sources 5120-01-368-1828
- Part Number
- Manufacturer
- Status
- 34-313
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 34-313
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 34-313
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-368-1828
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Circle Range Diameter [AJBF]
- 6.125 Inches Minimum And 8.750 Inches Maximum
- Hook Thickness [AJAZ]
- 0.469 Inches Nominal
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 13.750 Inches Nominal
- Style Designator [STYL]
- Adjustable Hook
- Surface Treatment [SFTT]
- Oxide Overall
Similar Supply Items to 5120-01-368-1828
Freight Information 5120-01-368-1828
5120-01-368-1828 has freight characteristics.. 5120-01-368-1828 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
