5120-01-367-3414

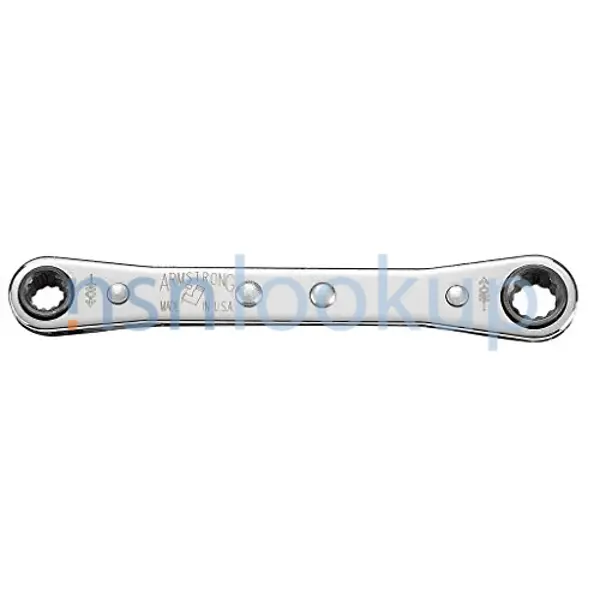

Ratchet Wrench
5120013673414 013673414 27-599
A single or double end wrench having a reversible or nonreversible ratchet socket on one or both ends. One end may have a fixed socket or handgrip. It may have a wrench opening through the handle. For items with drive tang, see HANDLE, SOCKET WRENCH. View more Ratchet Wrench
May 2023
14
Marketplace 5120-01-367-3414
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-367-3414 4+ Documents (More...)
Day 5120-01-367-3414 RQST NE Updated Every Day 5120-01-367-3414 RQST Updated Every Day 5120-01-367-3414
/fsc-5120/us 5120-01-367-3414 Ratchet Wrench 5120013673414 013673414,27-599 Photo 1/2 NSN 5120 Restrictions
/fsg-99/fsc-9999/dk
/fsg-84/fsc-8475/fr
Restrictions 5120-01-367-3414
5120-01-367-3414 is a Ratchet Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-367-3414
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-367-3414
- Belgium (ZB01)
- Effective Date:
- 1 Sep 2000
- Denmark (ZS01)
- Effective Date:
- 1 Jul 2005
Approved Sources 5120-01-367-3414
- Part Number
- Manufacturer
- Status
- 27-599
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 27-599
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 27-599
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-367-3414
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Straight Double Head
- Overall Length [ABHP]
- 8.000 Inches Nominal
- Wrenching Surface Size [AJBR]
- 0.625 Inches Nominal First End
- Wrenching Surface Size [AJBR]
- 0.750 Inches Nominal Second End
- Wrenching Surface Shape [CRWY]
- 12 Point Both Ends Internal
Similar Supply Items to 5120-01-367-3414
Freight Information 5120-01-367-3414
5120-01-367-3414 has freight characteristics.. 5120-01-367-3414 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
