5120-01-367-3388

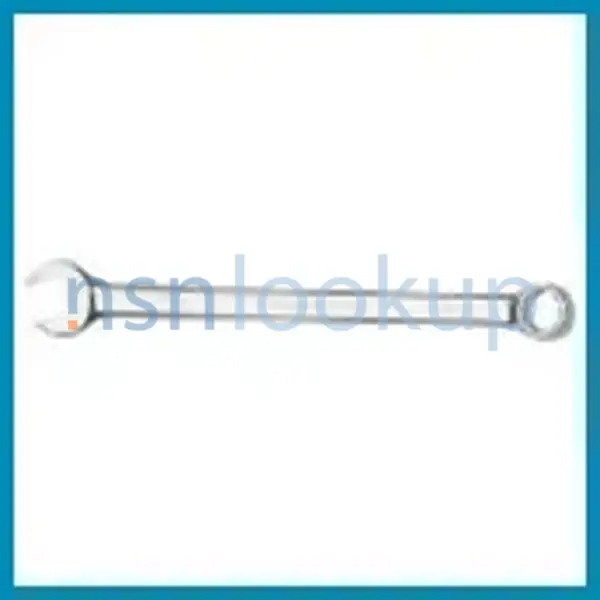

Combination Box And Open End Wrench
5120013673388 013673388 25-246
A nonadjustable wrench having a box wrenching feature on one end and an open end wrenching feature on the other end. Excludes WRENCH, BOX and WRENCH, OPEN END. View more Combination Box And Open End Wrench
May 2023
13
Marketplace 5120-01-367-3388
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-367-3388 1+ Documents (More...)
/fsg-51/fsc-5120/us 5120-01-367-3388 Combination Box And Open End Wrench,25-246 Every Day 5120-01-367
-01-367-3388 Combination Box And Open End Wrench,25-246 Photo 1/2 NSN 5120-01 Every Day 5120-01-367-3388
Restrictions 5120-01-367-3388
5120-01-367-3388 is a Combination Box And Open End Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-367-3388
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-367-3388
- Belgium (ZB01)
- Effective Date:
- 1 Mar 2001
Approved Sources 5120-01-367-3388
- Part Number
- Manufacturer
- Status
- 25-246
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 25-246
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 25-246
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-367-3388
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Head Angle [CRCS]
- 15.0 Degrees Nominal
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 21.125 Inches Nominal
- Wrenching Surface Shape [CRWY]
- 12 Point Second End Internal
- Wrenching Surface Shape [CRWY]
- Oval First End Internal
- Wrenching Surface Size [AJBR]
- 1.438 Nominal Inches Both Ends
- Wrenching End Offset Angle [CSPX]
- 15.0 Degrees Nominal
- Style Designator [STYL]
- Offset
- Surface Treatment [SFTT]
- Chromium Overall
Similar Supply Items to 5120-01-367-3388
Freight Information 5120-01-367-3388
5120-01-367-3388 has freight characteristics.. 5120-01-367-3388 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
