5120-01-367-3329

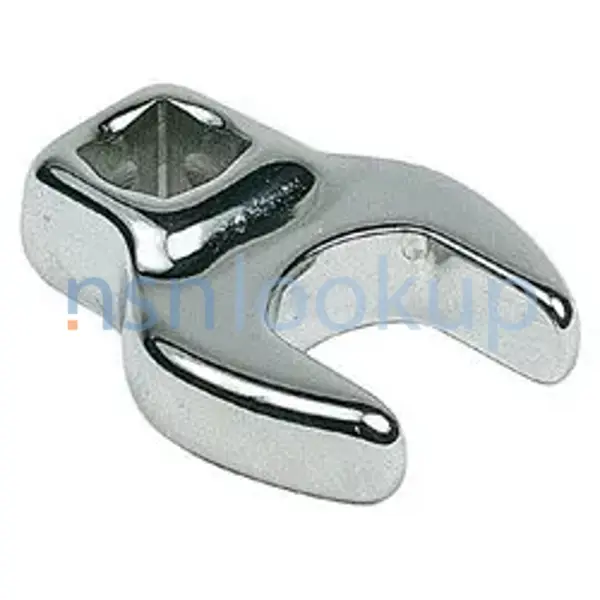

Socket Wrench Crowfoot Attachment
5120013673329 013673329 12-860
A wrench component which may contain notches within an open end, box, open wall box, 2 or 3 lug open end wrench opening having a square, internal, fixed, eccentric drive parallel to the wrench opening, designed to receive the external drive end of a HANDLE, SOCKET WRENCH. Items having an open end type wrench opening may have a second drive opening at right angles to the wrench opening. See also SOCKET, CROWFOOT WRENCH HEAD and HEAD, CROWFOOT SOCKET WRENCH. View more Socket Wrench Crowfoot Attachment
May 2023
12
Marketplace 5120-01-367-3329
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-367-3329 3+ Documents (More...)
Every Day 5120-01-367-3329 RQST NE Updated Every Day 5120-01-367-3329 RQST Updated Every Day 5120-01
/fsg-51/fsc-5120/us 5120-01-367-3329 Socket Wrench Crowfoot Attachment 013673329 Photo 1/3 5120-01-367
Restrictions 5120-01-367-3329
5120-01-367-3329 is a Socket Wrench Crowfoot Attachment that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-367-3329
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-367-3329
- Belgium (ZB01)
- Effective Date:
- 1 Sep 2000
Approved Sources 5120-01-367-3329
- Part Number
- Manufacturer
- Status
- 12-860
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 12-860
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 12-860
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-367-3329
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Open End
- Overall Length [ABHP]
- 2.816 Inches Nominal
- Wrenching Surface Size [AJBR]
- 1.000 Inches Nominal Single End
- Wrenching Surface Shape [CRWY]
- Oval Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Drive End Shape [CTCT]
- Square Single End Internal
Similar Supply Items to 5120-01-367-3329
Freight Information 5120-01-367-3329
5120-01-367-3329 has freight characteristics.. 5120-01-367-3329 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
