5120-01-367-3328

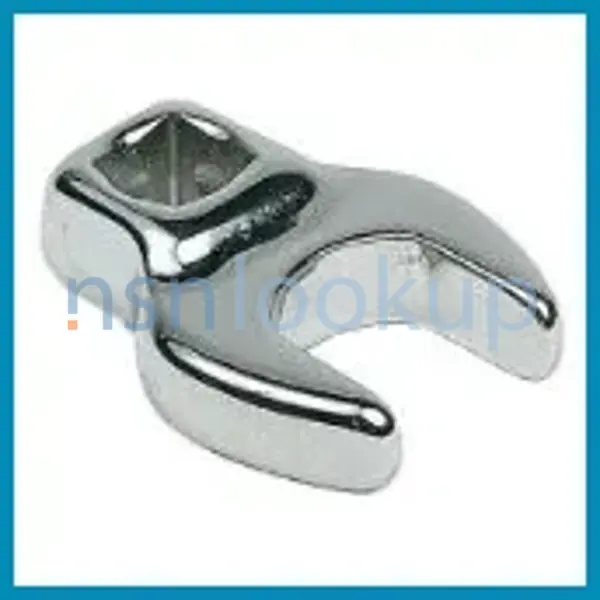

Socket Wrench Crowfoot Attachment
5120013673328 013673328 B107.100 B107.100 CAT 21 TY2CL1 B107.21 B107.21 TY2CL1 12-859
A wrench component which may contain notches within an open end, box, open wall box, 2 or 3 lug open end wrench opening having a square, internal, fixed, eccentric drive parallel to the wrench opening, designed to receive the external drive end of a HANDLE, SOCKET WRENCH. Items having an open end type wrench opening may have a second drive opening at right angles to the wrench opening. See also SOCKET, CROWFOOT WRENCH HEAD and HEAD, CROWFOOT SOCKET WRENCH. View more Socket Wrench Crowfoot Attachment
May 2023
15
Marketplace 5120-01-367-3328
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5120-01-367-3328 5+ Documents (More...)
TY2CL1 https FC76 B107.21 TY2CL1 https FC76 B107.21 CAT CAT 21 TY2CL1 https 5377 4960CF B107.21 TY2CL1
Attachment 014288139 B107.100 CAT 21 TY2CL1 FCOM9A B107.21 FCOM9 B107.21 TY2CL1 A wrench component which
TY2CL1 https FC76 B107.21 FC76 B107.21 TY2CL1 5120PL0946631 https TY2CL1 https FC76 B107.21 TY2CL1 https
FC76 B107.21 CAT CAT 21 TY2CL1 https 5377 4960CF B107.21 TY2CL1 https//www.nsnlookup.com /fsg-51/fsc
-3328 Socket Wrench Crowfoot Attachment 013673328 B107.100 CAT 21 TY2CL1B107.21B107.21 TY2CL1 12-859
TY2CL1 https FC76 B107.21 TY2CL1 https FC76 B107.21 CAT CAT 21 TY2CL1 https 5377 4960CF B107.21 TY2CL1
-3328 Socket Wrench Crowfoot Attachment 013673328 B107.100 CAT 21 TY2CL1B107.21B107.21 TY2CL1 12-859
TY2CL1 https FC76 B107.21 TY2CL1 https FC76 B107.21 CAT CAT 21 TY2CL1 https 5377 4960CF B107.21 TY2CL1
-3328 Socket Wrench Crowfoot Attachment 013673328 B107.100 CAT 21 TY2CL1B107.21B107.21 TY2CL1 12-859
TY2CL1 https FC76 B107.21 TY2CL1 https FC76 B107.21 CAT CAT 21 TY2CL1 https 5377 4960CF B107.21 TY2CL1
Restrictions 5120-01-367-3328
5120-01-367-3328 is a Socket Wrench Crowfoot Attachment that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-367-3328
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-367-3328
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHD
Approved Sources 5120-01-367-3328
- Part Number
- Manufacturer
- Status
- B107.100
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.100 CAT 21 TY2CL1
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- B107.21
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.21 TY2CL1
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 12-859
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 12-859
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 12-859
- 636D0 - Apex Tool Group, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-367-3328
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 1 Class
- Overall Length [ABHP]
- 2.816 Inches Nominal
- Wrenching Surface Shape [CRWY]
- Oval Single End Internal
- Wrenching Surface Size [AJBR]
- 0.938 Inches Nominal Single End
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.21 Professional/Industrial Association Standard
- Style Designator [STYL]
- Open End
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-367-3328
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2009
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- N
- Disposal
- N
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5120-01-367-3328
Freight Information 5120-01-367-3328
5120-01-367-3328 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-367-3328 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-367-3328 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-367-3328 is not classified as a special type of cargo when transported by water. 5120-01-367-3328 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
