5120-01-367-3325

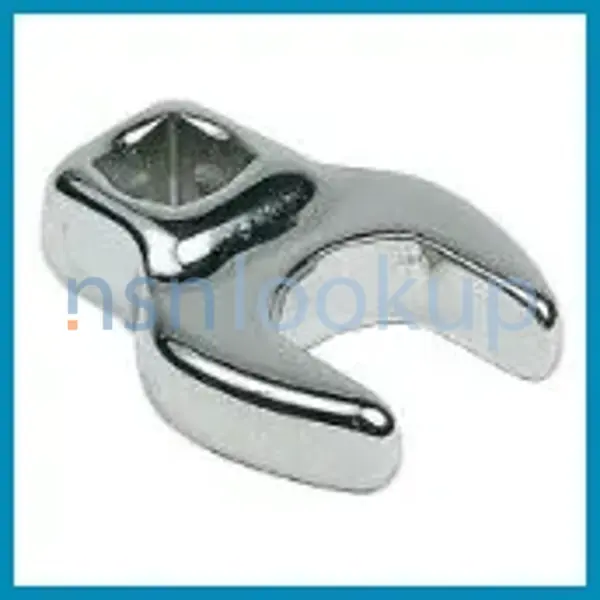

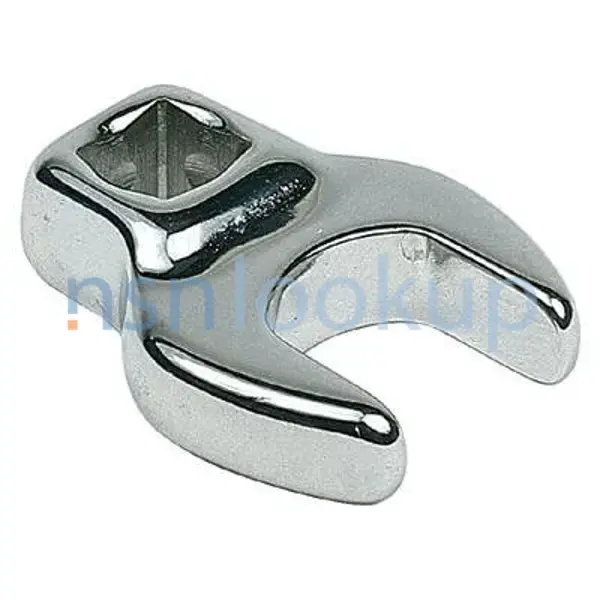

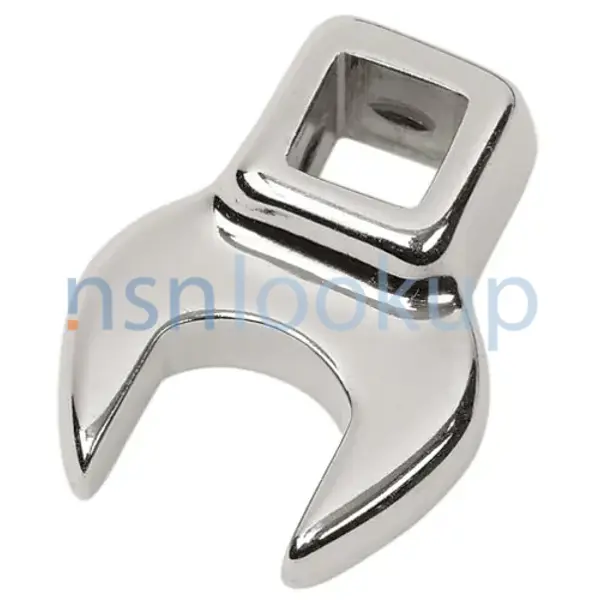

Socket Wrench Crowfoot Attachment
5120013673325 013673325 11-856
A wrench component which may contain notches within an open end, box, open wall box, 2 or 3 lug open end wrench opening having a square, internal, fixed, eccentric drive parallel to the wrench opening, designed to receive the external drive end of a HANDLE, SOCKET WRENCH. Items having an open end type wrench opening may have a second drive opening at right angles to the wrench opening. See also SOCKET, CROWFOOT WRENCH HEAD and HEAD, CROWFOOT SOCKET WRENCH. View more Socket Wrench Crowfoot Attachment
May 2023
14
Marketplace 5120-01-367-3325
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-367-3325 1+ Documents (More...)
Every Day 5120-01-367-3325 RQST NE Updated Every Day 5120-01-367-3325 RQST Updated Every Day 5120-01
/fsg-51/fsc-5120/us 5120-01-367-3325 Socket Wrench Crowfoot Attachment 013673325 Photo 1/5 5120-01-367
Restrictions 5120-01-367-3325
5120-01-367-3325 is a Socket Wrench Crowfoot Attachment that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-367-3325
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-367-3325
- Singapore (YJ01)
- Effective Date:
- 1 Jul 1999
- Belgium (ZB01)
- Effective Date:
- 1 Sep 2000
Approved Sources 5120-01-367-3325
- Part Number
- Manufacturer
- Status
- 11-856
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 11-856
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 11-856
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-367-3325
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Open End
- Overall Length [ABHP]
- 2.312 Inches Nominal
- Wrenching Surface Size [AJBR]
- 0.750 Inches Nominal Single End
- Wrenching Surface Shape [CRWY]
- Oval Single End Internal
- Drive Surface Size [ATNC]
- 0.375 Inches Nominal Single End
- Drive End Shape [CTCT]
- Square Single End Internal
Similar Supply Items to 5120-01-367-3325
Freight Information 5120-01-367-3325
5120-01-367-3325 has freight characteristics.. 5120-01-367-3325 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
