5120-01-367-3322

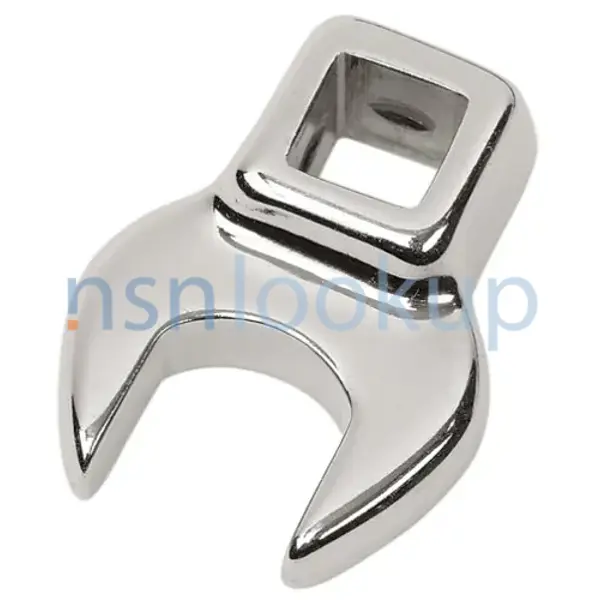

Socket Wrench Crowfoot Attachment
5120013673322 013673322 11-853
A wrench component which may contain notches within an open end, box, open wall box, 2 or 3 lug open end wrench opening having a square, internal, fixed, eccentric drive parallel to the wrench opening, designed to receive the external drive end of a HANDLE, SOCKET WRENCH. Items having an open end type wrench opening may have a second drive opening at right angles to the wrench opening. See also SOCKET, CROWFOOT WRENCH HEAD and HEAD, CROWFOOT SOCKET WRENCH. View more Socket Wrench Crowfoot Attachment
May 2023
14
Marketplace 5120-01-367-3322
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-367-3322 1+ Documents (More...)
Every Day 5120-01-367-3322 RQST NE Updated Every Day 5120-01-367-3322 RQST Updated Every Day 5120-01
/fsg-51/fsc-5120/us 5120-01-367-3322 Socket Wrench Crowfoot Attachment 013673322 Photo 1/3 5120-01-367
Restrictions 5120-01-367-3322
5120-01-367-3322 is a Socket Wrench Crowfoot Attachment that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-367-3322
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-367-3322
- Singapore (YJ01)
- Effective Date:
- 1 Jul 1999
- Belgium (ZB01)
- Effective Date:
- 1 Sep 2000
Approved Sources 5120-01-367-3322
- Part Number
- Manufacturer
- Status
- 11-853
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 11-853
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 11-853
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-367-3322
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Open End
- Overall Length [ABHP]
- 2.219 Inches Nominal
- Wrenching Surface Size [AJBR]
- 0.562 Inches Nominal Single End
- Wrenching Surface Shape [CRWY]
- Oval Single End Internal
- Drive Surface Size [ATNC]
- 0.375 Inches Nominal Single End
- Drive End Shape [CTCT]
- Square Single End Internal
Similar Supply Items to 5120-01-367-3322
Freight Information 5120-01-367-3322
5120-01-367-3322 has freight characteristics.. 5120-01-367-3322 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
