5120-01-349-1487

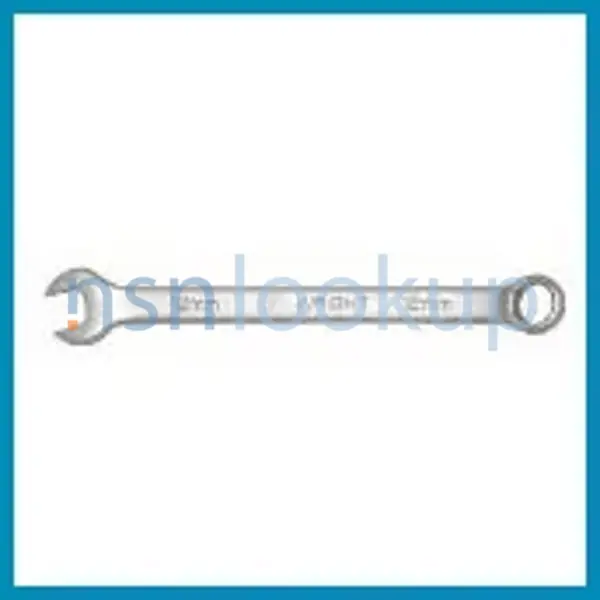

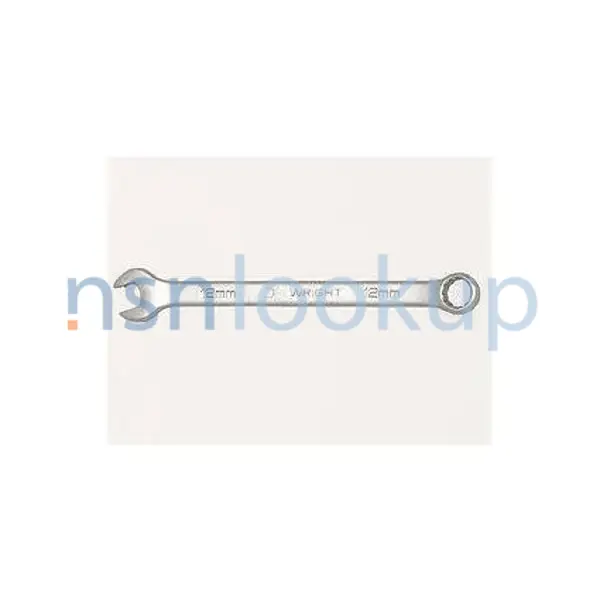

Combination Box And Open End Wrench
5120013491487 013491487 AS955 TY3CL1STC 11-13MM AS955
A nonadjustable wrench having a box wrenching feature on one end and an open end wrenching feature on the other end. Excludes WRENCH, BOX and WRENCH, OPEN END. View more Combination Box And Open End Wrench
May 2023
14
Marketplace 5120-01-349-1487
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-349-1487 5+ Documents (More...)
/us 5120-01-349-1487 Combination Box And Open End Wrench AS955 TY3CL1STC11-13MMAS955 A nonadjustable
end and an AS955 TY3CL1STC J1224M 1224M A nonadjustable https//www.nsnlookup.com /fsg-51/fsc-5120/us
AS955 TY3CL1STC 11-10MM A nonadjustable wrench having a box wrenching feature on one end and an open
AS955 TY3CL1STC 11-14MM A nonadjustable wrench having a box wrenching feature on one end and an open
TY3CL1STC J1232MASD 1232MASD A nonadjustable wrench having a box wrenching feature on one end AS955
AS955 TY3CL1STC J1224M 1224M A nonadjustable wrench having a box wrenching feature on one end and an
TY3CL1STC 11-17MM A nonadjustable wrench having a box wrenching feature on one end and an open AS955
AS955 TY3CL1STC J1224M 1224M A nonadjustable wrench having a box wrenching feature on one end and an
AS955 WRENCH,BOX AND OPEN END,COMBINATION 1 EA NS Request Quotation Subscribe to View Vendor Details.
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-348-6839 Combination Box And Open End Wrench,AS955
Restrictions 5120-01-349-1487
5120-01-349-1487 is a Combination Box And Open End Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-349-1487
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-349-1487
- US Army (A192)
- Effective Date:
- 1 Oct 1999
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 2005
- Australia (ZA01)
- Effective Date:
- 1 May 2007
- Denmark (ZS01)
- Effective Date:
- 1 Jun 2008
Approved Sources 5120-01-349-1487
- Part Number
- Manufacturer
- Status
- AS955
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS955 TY3CL1STC
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 11-13MM
- 79808 - Wright Tool Co (Active)
- Secondary Buy
- Secondary Buy
- AS955
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-349-1487
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Head Angle [CRCS]
- 15.0 Degrees Nominal
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 3 Type And 1 Class And C Style
- Overall Length [ABHP]
- 175.0 Millimeters Minimum And 210.0 Millimeters Maximum
- Special Features [FEAT]
- Flat Stem
- Wrenching Surface Shape [CRWY]
- 12 Point Second End Internal
- Wrenching Surface Shape [CRWY]
- Oval First End Internal
- Wrenching Surface Size [AJBR]
- 13.0 Millimeters Nominal Both Ends
- Wrenching End Offset Angle [CSPX]
- 15.0 Degrees Nominal
- Specification/Standard Data [ZZZK]
- 81343-Sae As955 Professional/Industrial Association Standard
- Style Designator [STYL]
- Offset
- Surface Treatment [SFTT]
- Chromium Overall
Similar Supply Items to 5120-01-349-1487
Freight Information 5120-01-349-1487
5120-01-349-1487 has freight characteristics.. 5120-01-349-1487 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
