5120-01-348-1708
Box Wrench
5120013481708 013481708 JHD041M HD041M
A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION. View more Box Wrench
May 2023
4
Marketplace 5120-01-348-1708
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-348-1708 1+ Documents (More...)

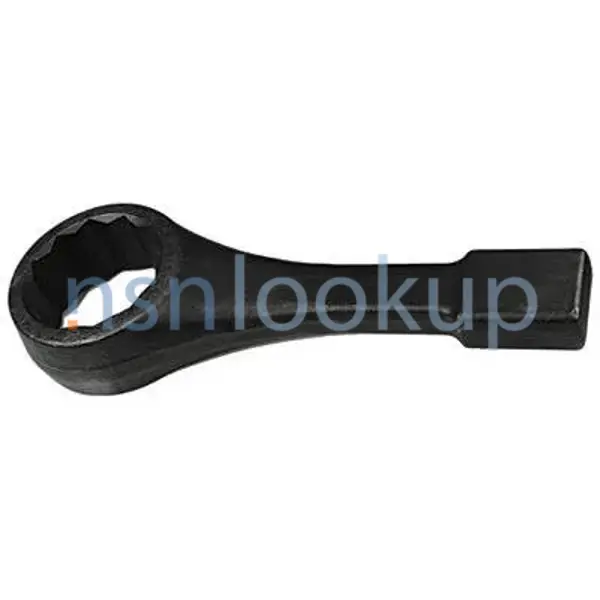

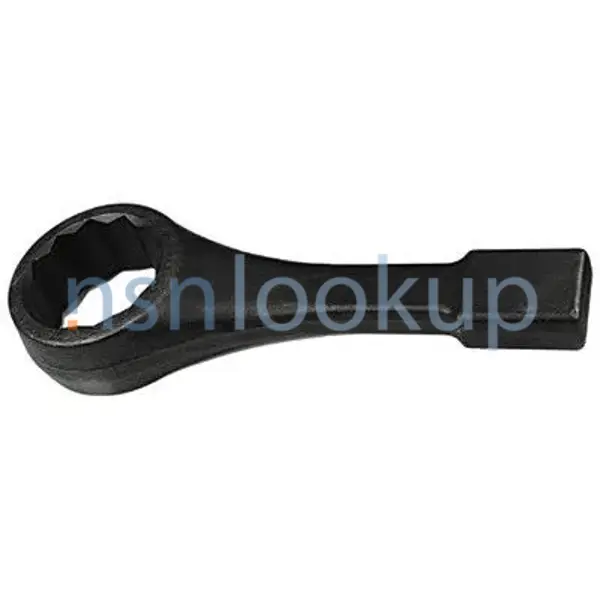

Photo 1/3 5120-01-348-1708 Photo 2/3 NSN 5120-01-348-1708 (Identification) 3/3 - - - 1.
HD041M WRENCH,BOX 10 EA NS Request Quotation Subscribe to View Vendor Details... 5120-01-348-1708 WRENCH
Restrictions 5120-01-348-1708
5120-01-348-1708 is a Box Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-348-1708
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-348-1708
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- HD
Approved Sources 5120-01-348-1708
- Part Number
- Manufacturer
- Status
- JHD041M
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- HD041M
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-348-1708
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Oxide Overall
- Style Designator [STYL]
- Slugging
- Overall Length [ABHP]
- 257.0 Millimeters Nominal
- Outside Diameter [ABKV]
- 70.0 Millimeters Nominal
- Head Thickness [AHML]
- 29.0 Millimeters Nominal
- Wrenching Surface Size [AJBR]
- 41.0 Millimeters Nominal Single End
- Wrenching Surface Shape [CRWY]
- 12 Point Single End Internal
Management Data 5120-01-348-1708
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jun 2014
- Department of the Navy (DN)
- EA
- Subscribe
- EA
Navy
- Cognizance:
- 9Q
Similar Supply Items to 5120-01-348-1708
Freight Information 5120-01-348-1708
5120-01-348-1708 has freight characteristics managed by the Food and Drug Administration (FDA).. 5120-01-348-1708 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
