5120-01-336-3983

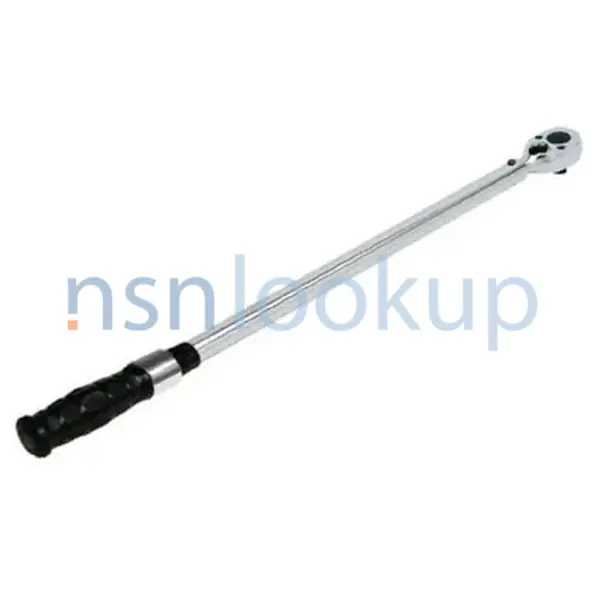

Torque Wrench
5120013363983 013363983 B107.300 B107.14 B107.14 TY2CLAST2DEA 1501MR
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
August 2023
18
Marketplace 5120-01-336-3983
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-336-3983 5+ Documents (More...)
000646831 TY2CLAST2DEA 011255190 TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14
B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA TY3CL2 B107.14 011255190 TY1CL2 AS28431 QJR3200A
TY2CLAST2DEA 28414 28413 GGG-W-686 B107.300 B107.14 Torque Wrench 5120012732542012732542 TW150R2477GGG-W
-686 TY3CL2B107.14 TY2CLAST2DEA2841428413GGG-W https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-336-3983
Torque Wrench 5120013363983 013363983 TCI-150RA TW150R 2477 GGG-W-686 TY3CL2 B107.14 TY2CLAST2DEAAS28431
TY2CLAST2DEA 011255190 TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA
5120014394398014394398 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B TY1CL2 AS28431 QJR3200A B107.14
B107.14 TY2CLAST2DEA QJR3200 B107.14 TY2CLAST2DEA TY1CL2 AS28431 TY2CLAST2DEA QJR3200 QJR3200B B107.14
TY2CLAST2DEA QJR3200 QJR3200B TY1CL2 AS28431 QJR3200A B107.14 B107.14 TY2CLAST2DEA QJR3200 B107.14 TY2CLAST2DEA
QJR3200A B107.14 TY2CLAST2DEA QJR3200 B107.14 TY2CLAST2DEA TY1CL2 AS28431 QJR3200A B107.14 A manual
Restrictions 5120-01-336-3983
5120-01-336-3983 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-336-3983
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-336-3983
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Jun 2004
- Supplementary Collaborators:
- GT
- Australia (ZA01)
- Effective Date:
- 1 Nov 2014
Approved Sources 5120-01-336-3983
- Part Number
- Manufacturer
- Status
- B107.300
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.14
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- B107.14 TY2CLAST2DEA
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 1501MR
- 08194 - Consolidated Devices, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 1501MR
- 3LSJ2 - Snap-On Incorporated (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-336-3983
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.250 Inches Nominal Single End
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And A Class And 2 Style And A Design
- Overall Length [ABHP]
- 12.000 Inches Nominal
- Special Features [FEAT]
- Ratchet Head; Rubber Grip Handle
- Torque Capacity [AJCG]
- 30.0 Inch-Pounds Minimum And 150.0 Inch-Pounds Maximum
- Torque Indicating Mechanism [AJCF]
- Micrometer
- Torque Scale Graduation [AJCH]
- 1.00 Inch-Pounds
- Torque Signal Method [AJDR]
- Audible
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.300 Professional/Industrial Association Standard
- Style Designator [STYL]
- Micrometer End Drive
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-336-3983
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
