5120-01-335-9093

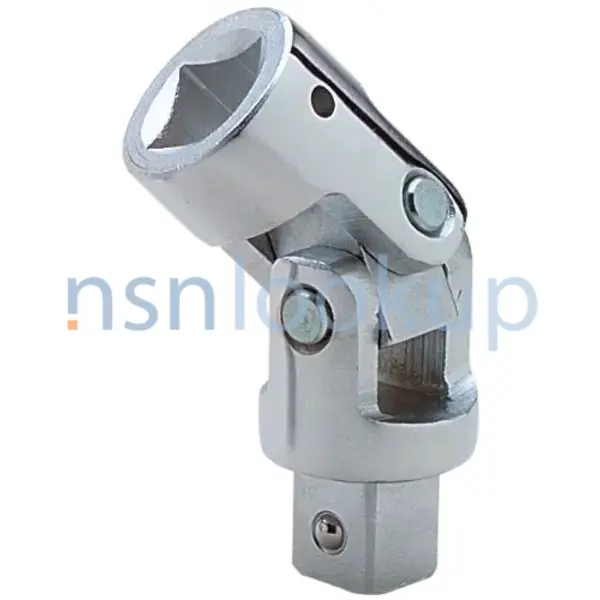

Socket Wrench Attachment Universal Joint
5120013359093 013359093 2475
A connection for socket wrenches and handles. Consists of an internal drive on one end and an external drive on the opposite end, of the same size, connected by a cross pin device to permit swivel up to 90 degrees (1.6 radians). View more Socket Wrench Attachment Universal Joint
May 2023
10
Marketplace 5120-01-335-9093
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-335-9093 2+ Documents (More...)
5120-01-335-9093 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-335-9093
RQST NE Updated Every Day 5120-01-335-9093 RQST Updated Every Day 5120-01-335-9093 RQST NE Related Documents
Restrictions 5120-01-335-9093
5120-01-335-9093 is a Socket Wrench Attachment Universal Joint that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-335-9093
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-335-9093
- Denmark (ZS01)
- Effective Date:
- 1 Feb 2005
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5120-01-335-9093
- Part Number
- Manufacturer
- Status
- 2475
- Manufacturer
- 79808 - Wright Tool Co (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-01-335-9093
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- External-Internal
- Overall Length [ABHP]
- 1.312 Inches Nominal
- Drive Surface Size [ATNC]
- 0.250 Inches Nominal Both Ends
- Drive End Shape [CTCT]
- Square First End External
- Drive End Shape [CTCT]
- Square Second End Internal
- Features Provided [CBBL]
- Manual Tool
Similar Supply Items to 5120-01-335-9093
Freight Information 5120-01-335-9093
5120-01-335-9093 has freight characteristics.. 5120-01-335-9093 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
