5120-01-335-8165

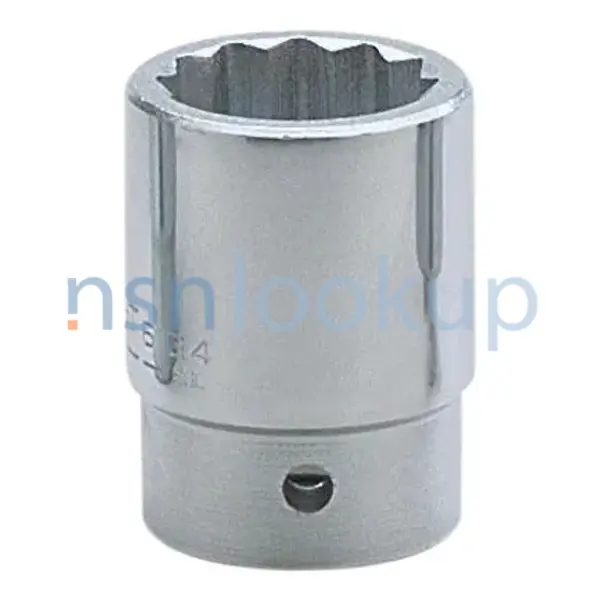

Socket Wrench Socket
5120013358165 013358165 AS954 AS954 TY1CL1STB 4640
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
Managed by United States
NSN Created on 14 Mar 1991
Data Last Changed
August 2023
August 2023
NATO Update Count
13
13
NATO Data Quality
Marketplace 5120-01-335-8165
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-335-8165 5+ Documents (More...)
AS954 AS954 TY1CL1STB 4640 An item having an internal drive at one end made to fit into the external
AS954 SOCKET,SOCKET WRENCH 1 EA NS Request Quotation Subscribe to View Vendor Details... 4640 SOCKET,
AS954 SOCKET,SOCKET WRENCH 300 EA NS Request Quotation 4640 SOCKET,SOCKET WRENCH 1 EA NS Request Quotation
AS954 SOCKET,SOCKET WRENCH 1 EA NS Request Quotation Subscribe to View Vendor Details... 4640 SOCKET,
AS954 SOCKET,SOCKET WRENCH 300 EA NS Request Quotation 4640 SOCKET,SOCKET WRENCH 1 EA NS Request Quotation
AS954 TY1CL1STB FRS S401 J5340 STP 5340G Updated Every https//www.nsnlookup.com /fsg-51/fsc https//www.nsnlookup.com
AS954 TY1CL1STB FRS S401 J5340 STP 5340G Updated Every Day FRS S401 https//www.nsnlookup.com /fsg-51
Wrench Socket 5120016510415 016510415 /us 5120-01-428-4680 Socket Wrench Socket 5120014284680 014284680 AS954
AS954 TY1CL1STB FRS S401 J5340 STP 5340G Updated Every Day FRS S401 https//www.nsnlookup.com /fsg-51
Wrench Socket 5120016510415 016510415 /us 5120-01-428-4680 Socket Wrench Socket 5120014284680 014284680 AS954
AS954 TY1CL1STB FRS S401 J5340 STP 5340G 1AN22 S401 5340 An item having an internal drive at one end
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-651-0415 Socket Wrench Socket 5120016510415 016510415 AS954
into the external /fsg-51/fsc-5120/us 5120-00-935-7445 Socket Wrench Socket 5120009357445 009357445 AS954
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-651-0415 Socket Wrench Socket 5120016510415 016510415 AS954
into the external /fsg-51/fsc-5120/us 5120-00-935-7445 Socket Wrench Socket 5120009357445 009357445 AS954
AS954 TY1CL1STB STMMD5 AS955 AS955 TY1CL1STC An item having an internal drive at one end made to fit
TY1CL1STB B107.5M https//www.nsnlookup.com /fsg-51/ AS955 TY1CL1STC B107.5M A group of SOCKET, AS954
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-348-7282 Socket Wrench Socket 5120013487282 013487282 AS954
TY1CL1STB B107.5M https//www.nsnlookup.com /fsg-51/ AS955 TY1CL1STC B107.5M A group of SOCKET, AS954
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-348-7282 Socket Wrench Socket 5120013487282 013487282 AS954
AS954 TY1CL1STB An item having an internal drive at one end made to fit into the external drive end
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-651-0547 Socket Wrench Socket 5120016510547 016510547 AS954
into the external /fsg-51/fsc-5120/us 5120-00-935-7445 Socket Wrench Socket 5120009357445 009357445 AS954
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-651-0547 Socket Wrench Socket 5120016510547 016510547 AS954
into the external /fsg-51/fsc-5120/us 5120-00-935-7445 Socket Wrench Socket 5120009357445 009357445 AS954
Restrictions 5120-01-335-8165
5120-01-335-8165 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-335-8165
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-335-8165
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- CT
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Jun 2004
- Supplementary Collaborators:
- GT
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5120-01-335-8165
- Part Number
- Manufacturer
- Status
- AS954
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS954 TY1CL1STB
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 4640
- 79808 - Wright Tool Co (Active)
- Secondary Buy
- Secondary Buy
- AS954
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-335-8165
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Features Provided [CBBL]
- Manual Tool
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 1 Class And B Style
- Overall Length [ABHP]
- 3.047 Inches Nominal
- Wrenching Surface Shape [CRWY]
- 12 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 1.250 Inches Nominal Single End
- Specification/Standard Data [ZZZK]
- 81343-Sae As954 Professional/Industrial Association Standard
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-335-8165
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2021
- US Coast Guard (GP)
- EA
- Subscribe
- EA
- Dec 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Apr 2020
- US Marine Corps (DM)
- EA
- Subscribe
- EA
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5120-01-428-4680
- 4
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5120-01-335-8165
Freight Information 5120-01-335-8165
5120-01-335-8165 has freight characteristics.. 5120-01-335-8165 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
