5120-01-335-8121

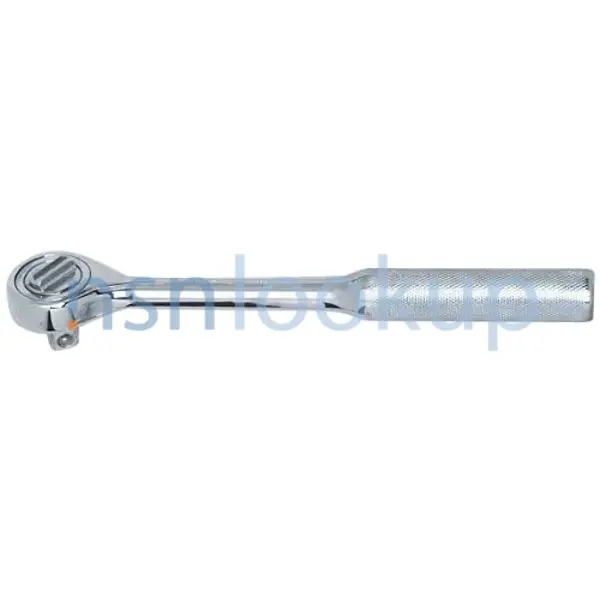

Socket Wrench Handle
5120013358121 013358121 4426
An item having a square external end and designed to fit into the internal end of a wrench socket or attachment and to which force is applied to drive the socket. Excludes torque indicating and other torque controlled items. See also WRENCH, RATCHET. View more Socket Wrench Handle
May 2023
9
Marketplace 5120-01-335-8121
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-335-8121 2+ Documents (More...)
Quotation Updated Every Day 5120-01-335-8121 RQST NE Updated Every Day 5120-01-335-8121 RQST Updated
Every Day 5120-01-335-8121 RQST NE Related Documents 5120-01-335-8121 1+ Documents ( More... ) https/
Restrictions 5120-01-335-8121
5120-01-335-8121 is a Socket Wrench Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-335-8121
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-335-8121
- Republic of Korea (ZH01)
- Effective Date:
- 1 Nov 1995
- Greece (ZU01)
- Effective Date:
- 1 Jun 2005
Approved Sources 5120-01-335-8121
- Part Number
- Manufacturer
- Status
- 4426
- Manufacturer
- 79808 - Wright Tool Co (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-01-335-8121
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Ratchet
- Overall Length [ABHP]
- 10.250 Inches Nominal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Drive End Shape [CTCT]
- Square Single End External
- Special Features [FEAT]
- Round Head; 45 Tooth; Straight Round Knurled Steel Handle
NATO Stock Numbers Related to 5120-01-335-8121
Freight Information 5120-01-335-8121
5120-01-335-8121 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-335-8121 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-335-8121 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-335-8121 is not classified as a special type of cargo when transported by water. 5120-01-335-8121 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
