5120-01-335-1124

Socket Wrench Crowfoot Attachment

5120013351124 013351124 B107.100 B107.100 CAT 21 TY2CL2 SCO44 1TEK4 15016227 J5344CF 1084 4368189 B107.21 5344CF B107.21 TY2CL2 FRS SCO44

A wrench component which may contain notches within an open end, box, open wall box, 2 or 3 lug open end wrench opening having a square, internal, fixed, eccentric drive parallel to the wrench opening, designed to receive the external drive end of a HANDLE, SOCKET WRENCH. Items having an open end type wrench opening may have a second drive opening at right angles to the wrench opening. See also SOCKET, CROWFOOT WRENCH HEAD and HEAD, CROWFOOT SOCKET WRENCH. View more Socket Wrench Crowfoot Attachment

Managed by United States

NSN Created on 5 Mar 1991

Data Last Changed
August 2023

NATO Update Count
32

NATO Data Quality

5120-01-335-1124 CROWFOOT ATTACHMENT,SOCKET WRENCH 5120013351124 013351124 1/6 — 5120-01-335-1124 Photo 1/6

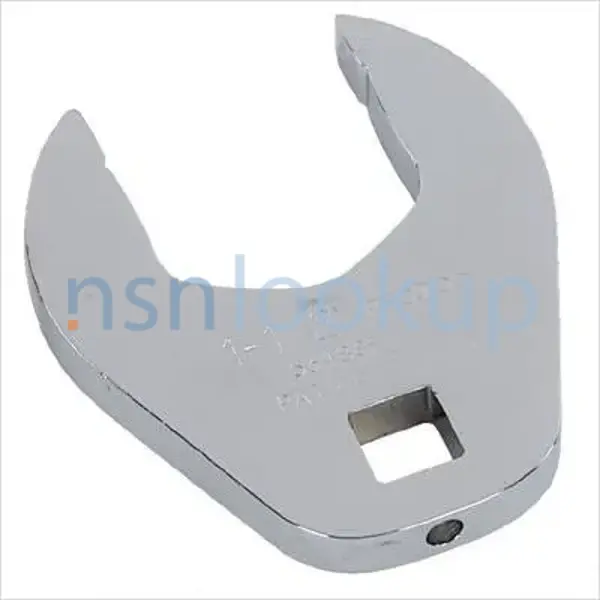

5120-01-335-1124 CROWFOOT ATTACHMENT,SOCKET WRENCH 5120013351124 013351124 2/6 — 5120-01-335-1124 Photo 2/6

5120-01-335-1124 CROWFOOT ATTACHMENT,SOCKET WRENCH 5120013351124 013351124 3/6 — 5120-01-335-1124 Photo 3/6

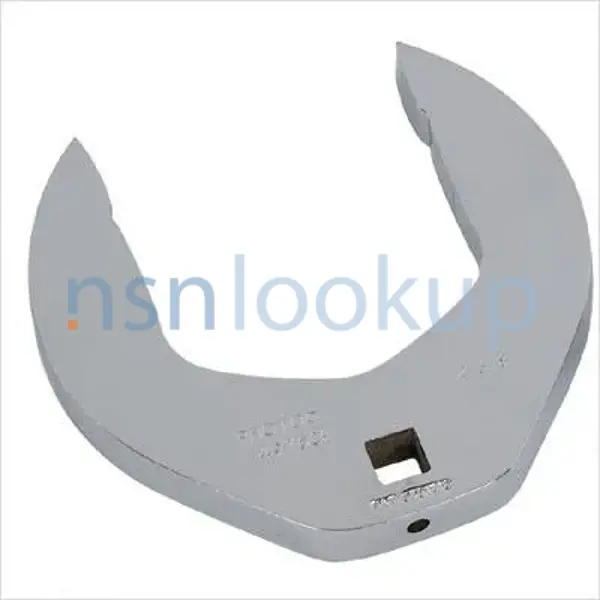

5120-01-335-1124 CROWFOOT ATTACHMENT,SOCKET WRENCH 5120013351124 013351124 4/6 — 5120-01-335-1124 Photo 4/6

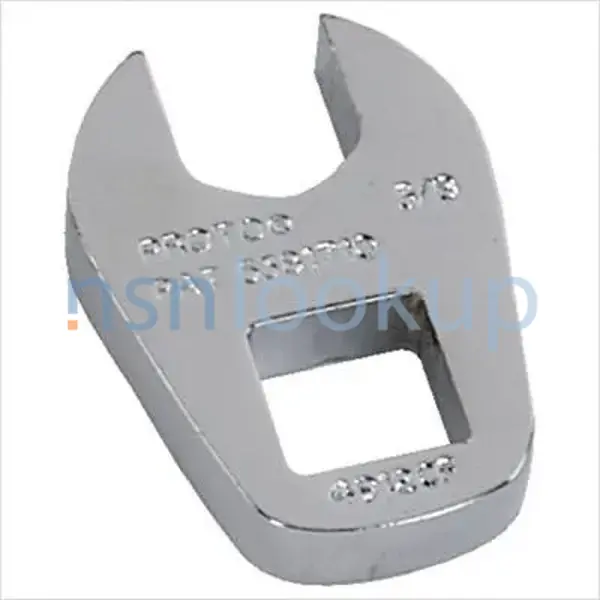

5120-01-335-1124 CROWFOOT ATTACHMENT,SOCKET WRENCH 5120013351124 013351124 5/6 — 5120-01-335-1124 Photo 5/6

STYL Style 55 for 5120-01-335-1124 6/6 — NSN 5120-01-335-1124 (Identification) 6/6

Marketplace 5120-01-335-1124

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

B1072-1 CROWFOOT ATTACHMENT,SOCKET WRENCH 3 EA NS

Subscribe to View Vendor Details...

B107.100 CROWFOOT ATTACHMENT,SOCKET WRENCH 32 EA NS

Subscribe to View Vendor Details...

B107.100 CROWFOOT ATTACHMENT,SOCKET WRENCH 6 EA NS

Subscribe to View Vendor Details...

5120-01-335-1124 CROWFOOT ATTACHMENT,SOCKET WRENCH RQST NS

FRS SCO44 RQST NE

5120-01-335-1124 RQST NE

Updated Every Day

5120-01-335-1124 RQST

Updated Every Day

5120-01-335-1124 RQST NE

Related Documents 5120-01-335-1124 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-335-1124 Socket Wrench Crowfoot Attachment 013351124

B107.100 B107.100 CAT 21 TY2CL2 SCO44 1TEK4 15016227 J5344CF 1084 4368189 B107.21 5344CF B107.21 TY2CL2
RQST NE Updated Every Day J5344CF RQST NE Updated Every Day 5344CF RQST NE Updated Every Day FRS SCO44
RQST NE Updated Every Day 1TEK4 RQST NE Updated Every Day 1084 RQST NE Updated Every Day 5120-01-335

https//www.nsnlookup.com
/fsg-51/fsc-5120/uk

5120-99-726-8689 Socket Wrench Crowfoot Attachment 997268689

1TEK4 15016227 SCO44 J5344CF 1084 4368189 RQST NE Updated Every Day SCO44 RQST FRS SCO44 1TEK4 15016227
Socket Wrench Crowfoot Attachment 997268689 016487910 Crowfoot Attachment 1TEK4 15016227 SCO44 https
4368189 B107.21 5344CF 1TEK4 15016227 SCO44 J5344CF J5344CF 1084 4368189 B107.21 5344CF 1TEK4 15016227

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-648-7910 Socket Wrench Crowfoot Attachment 016487910

4368189 B107.21 5344CF 1TEK4 15016227 SCO44 J5344CF 1084 4368189 B107.21 5344CF B107.21 TY2CL2 A wrench
CAT 21 TY2CL2 FRS SCO44 1TEK4 15016227 SCO44 J5344CF 1084 4368189 B107.21 5344CF B107.21 TY2CL2 Socket
15016227 SCO44 J5344CF 1084 4368189 B107.21 5344CF 1TEK4 15016227 SCO44 J5344CF 1084 4368189 RQST NE

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-535-0769 Socket Wrench Crowfoot Attachment 015350769

15016227 SCO44 J5344CF 1084 4368189 B107.21 5344CF 1TEK4 15016227 SCO44 J5344CF 1084 4368189 RQST NE
Updated Every Day SCO44 RQST FRS SCO44 1TEK4 15016227 SCO44 J5344CF Socket Wrench Crowfoot Attachment
marketplace vendors Request Updated Every Day SCO44 1TEK4 15016227 SCO44 J5344CF Request Quotation Updated

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-603-5295 Socket Wrench Crowfoot Attachment 016035295

B107.21 TY2CL2 4940 002362261 B107.100 Wrench Crowfoot Attachment SCO44 J5344CF 1084 4368189 https//
4368189 B107.21 5344CF B107.21 TY2CL2 4940 002362261 B107.100 Wrench https//www.nsnlookup.com / CAT
B107.21 TY2CL2 4940 002362261 B107.100 Wrench 1TEK4 15016227 SCO44 J5344CF 1084 4368189 B107.21 /fsg

Restrictions 5120-01-335-1124

5120-01-335-1124 is a Socket Wrench Crowfoot Attachment that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5120-01-335-1124

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5120-01-335-1124

US Army (A192)
Effective Date:: 1 Apr 1991
Supplementary Receivers:: CT; AMC 0 AMSC 0 IMC Z IMCACTY CD

US Coast Guard (C014)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0

US Air Force (FGGS)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 IMC Z IMCACTY TG

NASA (G751)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0

US Marine Corps (MC14)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 IMC Z IMCACTY PA

US Navy (N9QG)
Effective Date:: 1 Jun 2004
Supplementary Collaborators:: GTHE; AMC 0 AMSC 0 IMC Z IMCACTY KE

Austria (WB01)
Effective Date:: 1 Feb 2005

Slovenia (WL01)
Effective Date:: 1 Nov 2008

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Nov 2008

Belgium (ZB01)
Effective Date:: 1 Feb 2013

Canada (ZC01)
Effective Date:: 1 Mar 2009

Republic of Korea (ZH01)
Effective Date:: 1 Apr 2002

Netherlands (ZN01)
Effective Date:: 1 Jul 1997

Italy (ZR01)
Effective Date:: 1 Dec 2007

Denmark (ZS01)
Effective Date:: 1 Nov 2013

Turkey (ZW01)
Effective Date:: 1 Dec 2005

Approved Sources 5120-01-335-1124

Part Number
Manufacturer
Status
B107.100: 05047 - The American Society Of Mechanical (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC 4
SCO44: 55719 - Idsc Holdings Llc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 4
B107.100 CAT 21 TY2CL2: 80244 - General Services Administration (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
1TEK4: 25795 - W.W. Grainger, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
15016227: Z8518 - Bae Systems Australia Limited (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
J5344CF: 1CV05 - The Stanley Works (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
1084: 14846 - Wright Tool Company, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
B107.21: 05047 - The American Society Of Mechanical (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5344CF: 1CV05 - The Stanley Works (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
B107.21 TY2CL2: 80244 - General Services Administration (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
FRS SCO44: 55719 - Idsc Holdings Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
4368189: 75Q65 - Oshkosh Defense Llc (Active); Vendor Drawing; RNCC 7 RNVC 2 DAC C

Datasheet 5120-01-335-1124

Characteristic
Specifications
FIIG: A102A0
Drive End Shape [CTCT]: Square Single End Internal
Drive Surface Size [ATNC]: 0.500 Inches Nominal Single End
Material [MATT]: Steel Overall
Nondefinitive Spec/Std Data [ZZZT]: 2 Type And 2 Class
Overall Length [ABHP]: 3.156 Inches Nominal
Wrenching Surface Shape [CRWY]: Oval Single End Internal
Wrenching Surface Size [AJBR]: 1.375 Inches Nominal Single End
Specification/Standard Data [ZZZK]: 05047-Asme B107.100/B107.21 Professional/Industrial Association Standard
Style Designator [STYL]: Open End Camber
Surface Treatment [SFTT]: Chromium Overall

Management Data 5120-01-335-1124

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Jan 2023: US Coast Guard (GP); EA; Subscribe
Apr 2019: Department of the Air Force (DF); EA; Subscribe

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5120-01-589-8927
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5120-01-592-0381

Army

Materiel Category and Inventory Manager:

E: General Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9Q

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

02

Operational Test:

: No Special Procedures

Similar Supply Items to 5120-01-335-1124

Freight Information 5120-01-335-1124

5120-01-335-1124 has freight characteristics.. 5120-01-335-1124 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
