5120-01-335-0753
Socket Wrench Handle
5120013350753 013350753 B107.110 B107.110 CAT 10 TY1CL3STB TM63A B107.10 B107.10 TY1CL3STB
An item having a square external end and designed to fit into the internal end of a wrench socket or attachment and to which force is applied to drive the socket. Excludes torque indicating and other torque controlled items. See also WRENCH, RATCHET. View more Socket Wrench Handle
January 2023
29
Marketplace 5120-01-335-0753
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-335-0753 5+ Documents (More...)
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-651-0416 Socket Wrench Extension 5120016510416 B107.10
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-398-7589 Socket Wrench Handle 5120013987589 013987589 B107.10
Socket Wrench Handle 5120013350753 013350753 B107.110 CAT 10 TY1CL3STB TM63A B107.10B107.10 TY1CL3STB
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-398-7589 Socket Wrench Handle 5120013987589 013987589 B107.10
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-398-7589 Socket Wrench Handle 5120013987589 013987589 B107.10
An item having a square external end and designed to fit a square external end and designed to fit B107.10
a square external end and designed to fit B107.10 TY1CL3STB TM3 B107.10M B107.10M TY1CL3ST2 An item
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-335-0753 Socket Wrench Handle 5120013350753 013350753
B107.10 TY1CL3STB An item having a square external end and designed to RQST NE Updated Every Day ZHVY0109
Socket Wrench Handle 5120013350753 013350753 -5120/us 5120-01-563-1443 Socket Wrench Handle 5120015631443
Restrictions 5120-01-335-0753
5120-01-335-0753 is a Socket Wrench Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-335-0753
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-335-0753
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Jun 2004
- Supplementary Collaborators:
- GT
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2011
- Singapore (YJ01)
- Effective Date:
- 1 May 2000
- Australia (ZA01)
- Effective Date:
- 1 Jul 2015
- Canada (ZC01)
- Effective Date:
- 1 Nov 2012
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2007
- Netherlands (ZN01)
- Effective Date:
- 1 Feb 2006
- Portugal (ZP01)
- Effective Date:
- 1 Mar 2004
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
- Greece (ZU01)
- Effective Date:
- 1 May 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5120-01-335-0753
- Part Number
- Manufacturer
- Status
- B107.110
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.110 CAT 10 TY1CL3STB
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- TM63A
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
- B107.10
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.10 TY1CL3STB
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-335-0753
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.250 Inches Nominal Single End
- Material [MATT]
- Plastic Handle
- Material [MATT]
- Steel Wrenching Surface
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 3 Class And B Style
- Overall Length [ABHP]
- 9.188 Inches Nominal
- Special Features [FEAT]
- Black Contoured Screwdriver Type Handle; Handle Diameter 0.875 Inches Minimum And 1.270 Inches Maximum; Shank Length 4.656 Inches Nonimal
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.10 Professional/Industrial Association Standard

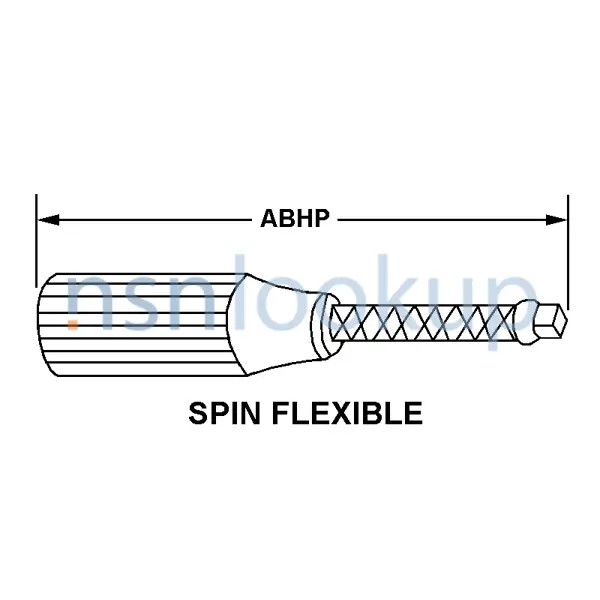

- Style Designator [STYL]
- Spin Flexible
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-335-0753
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 7
- Reviewed and determined non-essential
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5120-01-335-0753
Freight Information 5120-01-335-0753
5120-01-335-0753 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-335-0753 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-335-0753 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-335-0753 is not classified as a special type of cargo when transported by water. 5120-01-335-0753 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
