5120-01-240-3304
Torque Wrench Adapter
5120012403304 012403304 1177231-3
An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit. View more Torque Wrench Adapter
November 2023
5
Marketplace 5120-01-240-3304
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-240-3304 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5120-01-240-3304 RQST NE Updated Every Day 5120-01-240-3304 RQST
Updated Every Day 5120-01-240-3304 RQST NE Related Documents 5120-01-240-3304 1+ Documents ( More...
Restrictions 5120-01-240-3304
5120-01-240-3304 is a Torque Wrench Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-240-3304
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-240-3304
- US Air Force (FUGG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- FUCX
Approved Sources 5120-01-240-3304
- Part Number
- Manufacturer
- Status
- 1177231-3
- Manufacturer
- 05824 - Aerojet Rocketdyne Inc (Active)
- Original Design
- Original Design
Datasheet 5120-01-240-3304
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- End Item Identification [AGAV]
- Peacekeeper Stage Ii
- Hardness Rating [CQFM]
- 47.0 Rockwell C Minimum And 50.0 Rockwell C Maximum
- Material Document And Classification [MDCL]
- Mil-S-5626 Mil Spec Single Material Response Overall
- Material [MATT]
- Steel Comp 4140H Overall
- Overall Length [ABHP]
- 3.250 Inches Nominal
- Wrenching Surface Shape [CRWY]
- Hexagon Single End External
- Wrenching Surface Size [AJBR]
- 0.625 Inches Nominal Single End

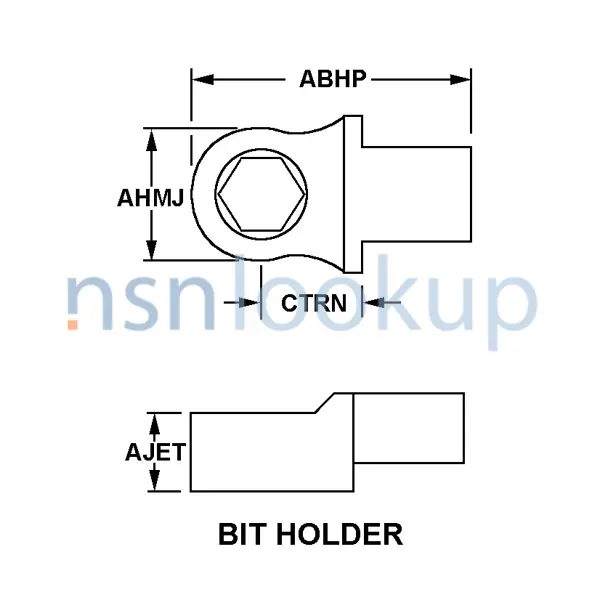

- Style Designator [STYL]
- Bit Holder
Weapon Systems (WSDC) 5120-01-240-3304
DLA Procurement Analysis 5120-01-240-3304
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5120-01-240-3304
Similar Supply Items to 5120-01-240-3304
Freight Information 5120-01-240-3304
5120-01-240-3304 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-240-3304 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-240-3304 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-240-3304 is not classified as a special type of cargo when transported by water. 5120-01-240-3304 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5120-01-240-3304 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
