5120-01-237-4361
Box Wrench
5120012374361 012374361 12A0269-57
A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION. View more Box Wrench
May 2023
4
Marketplace 5120-01-237-4361
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-237-4361 1+ Documents (More...)
Updated Every Day 5120-01-237-4361 RQST NE Related Documents 5120-01-237-4361 1+ Documents ( More...
NE FedMall Updated Every Day 5120-01-237-4361 RQST NE Updated Every Day 5120-01-237-4361 RQST Updated
Restrictions 5120-01-237-4361
5120-01-237-4361 is a Box Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-237-4361
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-237-4361
- US Air Force (FUGG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- FUCX
Approved Sources 5120-01-237-4361
- Part Number
- Manufacturer
- Status
- 12A0269-57
- Manufacturer
- 81755 - Lockheed Martin Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-01-237-4361
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material Document And Classification [MDCL]
- Mil-S-6758 Mil Std Single Material Response Overall
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 9.000 Inches Nominal
- Wrenching Surface Shape [CRWY]
- Spline Both Ends Internal
- Wrenching Surface Size [AJBR]
- 0.625 Inches Nominal First End
- Wrenching Surface Size [AJBR]
- 1.000 Inches Nominal Second End

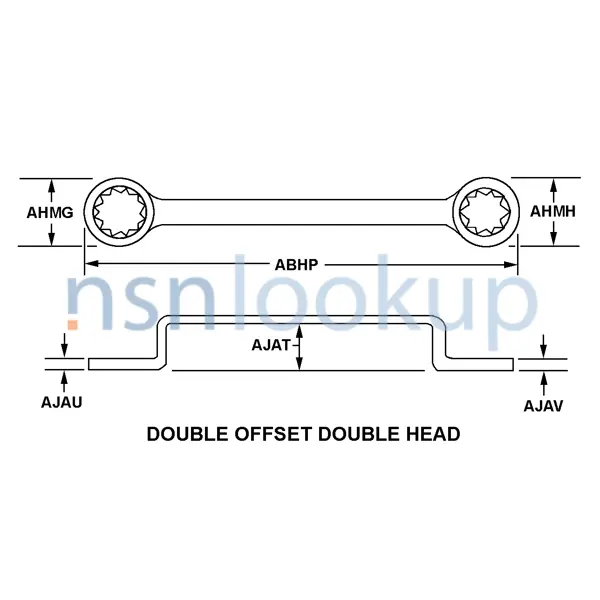

- Style Designator [STYL]
- Double Offset Double Head
DLA Procurement Analysis 5120-01-237-4361
Management Data 5120-01-237-4361
Similar Supply Items to 5120-01-237-4361
Freight Information 5120-01-237-4361
5120-01-237-4361 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186710. A Sub NMFC of Z. It has a NMFC Description of TOOLS:TORCHES HAND O/T BLOW. 5120-01-237-4361 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-237-4361 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-237-4361 is not classified as a special type of cargo when transported by water. 5120-01-237-4361 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5120-01-237-4361 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
