5120-01-236-5709

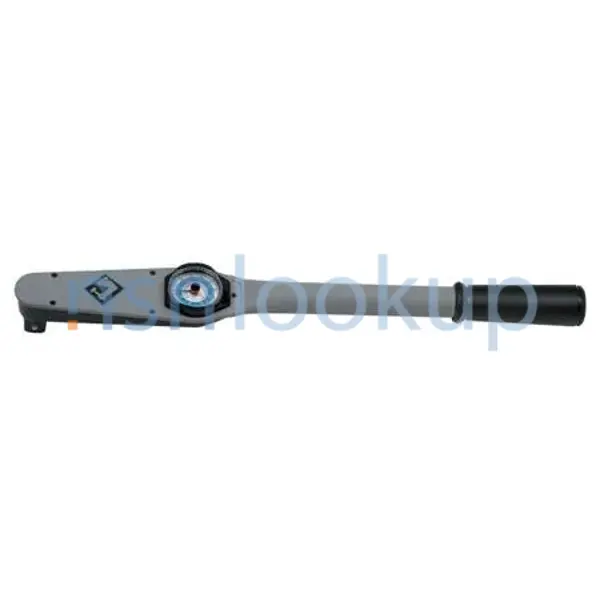

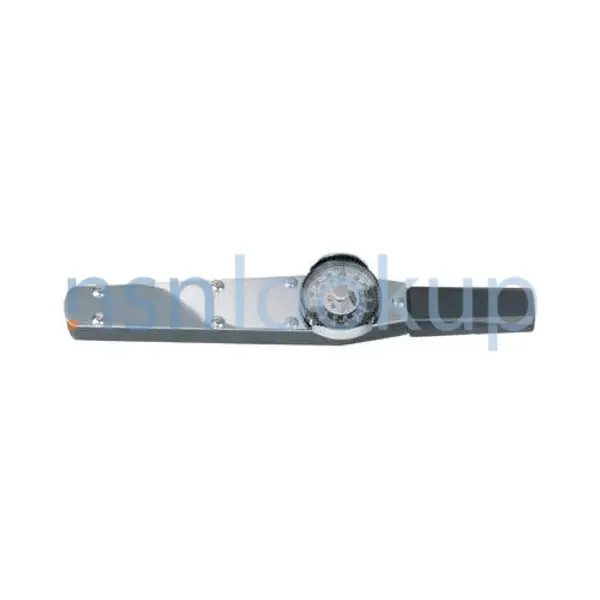

Torque Wrench
5120012365709 012365709 B107.300 B107.14 B107.14 TY1CLCST3 TER50A GGG-W-686 TY2CL1STA GGG-W-686 64-355
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
August 2023
26
Marketplace 5120-01-236-5709
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-236-5709 5+ Documents (More...)
TY1CLBST3 GGG-W-686 TY2CL1STA A manual TY1CLCST1 B107.14 GGG-W-686 TY2CL1STAB107.14MB107.14M TY1CLBST1
B107.14M TY1CLBST3 GGG-W-686 TY2CL1STA A manual GGG-W-686 A manual tool B107.14 TY1CLCST1 B107.14 TES160
GGG-W-686 A manual tool B107.14 TY1CLCST1 B107.14 TES160 GGG-W-686B107.14MB107.14M TY1CLBST1 GGG-W-686
Wrench 5120012365709 012365709 B107.14B107.14 TY1CLCST3 TER50A GGG-W-686 TY2CL1STAGGG-W-686 64-355 A
TY1CLBST1 GGG-W-686 A manual tool B107.14 https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-236-5709
Torque Wrench 5120012365709 012365709 B107.14B107.14 TY1CLCST3 TER50A GGG-W-686 TY2CL1STAGGG-W-686 64
Torque Wrench 5120012365709 012365709 B107.14B107.14 TY1CLCST3 TER50A GGG-W-686 TY2CL1STAGGG-W-
012366954 B107.14 TY1CLCST1B107.14 TE25FA GGG-W-686B107.14MB107.14M TY1CLBST1 A-A-2411 GGG-W-686 TY2CL1STA
Torque Wrench 5120012365709 012365709 B107.14B107.14 TY1CLCST3 TER50A GGG-W-686 TY2CL1STAGGG-W-
686 64-355 A manual tool for tightening various TY1CLCST1 B107.14 TES160 GGG-W B107.14MB107.14M TY1CLBST3
Restrictions 5120-01-236-5709
5120-01-236-5709 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5120-01-236-5709
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-236-5709
- US Army (A192)
- Effective Date:
- 1 Dec 2010
- Supplementary Receivers:
- BD
- NASA (G751)
- Effective Date:
- 1 Dec 2010
- US Marine Corps (MC14)
- Effective Date:
- 1 Nov 2013
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2014
- Supplementary Collaborators:
- GGHD
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Czech Republic (WZ01)
- Effective Date:
- 1 Jun 2004
- Brazil (YA01)
- Effective Date:
- 1 Jul 2001
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Jun 1997
Approved Sources 5120-01-236-5709
- Part Number
- Manufacturer
- Status
- B107.300
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.14
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- B107.14 TY1CLCST3
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- TER50A
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
- GGG-W-686 TY2CL1STA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-686
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 64-355
- 636D0 - Apex Tool Group, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 64-355
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 64-355
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-236-5709
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.375 Inches Nominal Single End
- Departure From Cited Designator [ZZZX]
- As Modified By Dual Scale
- Furnished Items [AFJH]
- Case
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 1 Class And A Style
- Overall Length [ABHP]
- 12.500 Inches Nominal
- Special Features [FEAT]
- Dual Scale; 1 Nm Graduations
- Torque Capacity [AJCG]
- 0.0 Inch-Pounds Minimum And 600.0 Inch-Pounds Maximum And 0.0 Meter-Newton Minimum And 60.0 Meter-Newton Maximum
- Torque Indicating Mechanism [AJCF]
- Dial
- Torque Scale Graduation [AJCH]
- 20.00 Inch-Pounds
- Torque Signal Method [AJDR]
- Dial Indicator
- Style Designator [STYL]
- Rigid Frame End Drive
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-236-5709
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- 3
- Calibration Required
Similar Supply Items to 5120-01-236-5709
Freight Information 5120-01-236-5709
5120-01-236-5709 has freight characteristics managed by the Netherlands.. 5120-01-236-5709 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
