5120-01-207-1951
Screwdriver Socket Wrench Attachment
5120012071951 012071951 SPL4173-5 9379286-2
An attachment designed to fit over the square external drive end of a HANDLE, SOCKET WRENCH; WRENCH, TORQUE; and the like consisting of one or two-piece configuration having a screw driving tip on one end. Excludes BIT, SCREWDRIVER. View more Socket Wrench Screwdriver Attachment
May 2023
7
Marketplace 5120-01-207-1951
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-207-1951 1+ Documents (More...)
United States (US) 4. 5120-01-207-1951 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day SPL4173-5 RQST NE Updated Every Day 5120-01-207-1951 RQST NE Updated
Restrictions 5120-01-207-1951
5120-01-207-1951 is a Screwdriver Socket Wrench Attachment that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-207-1951
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-207-1951
- US Army (A921)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A182
- Supplementary Receivers:
- AZBF
Approved Sources 5120-01-207-1951
- Part Number
- Manufacturer
- Status
- SPL4173-5
- Manufacturer
- 55719 - Idsc Holdings Llc (Active)
- Primary Buy
- Primary Buy
- 9379286-2
- 19200 - Combat Capabilities Development (Active)
- Vendor Drawing
- Vendor Drawing

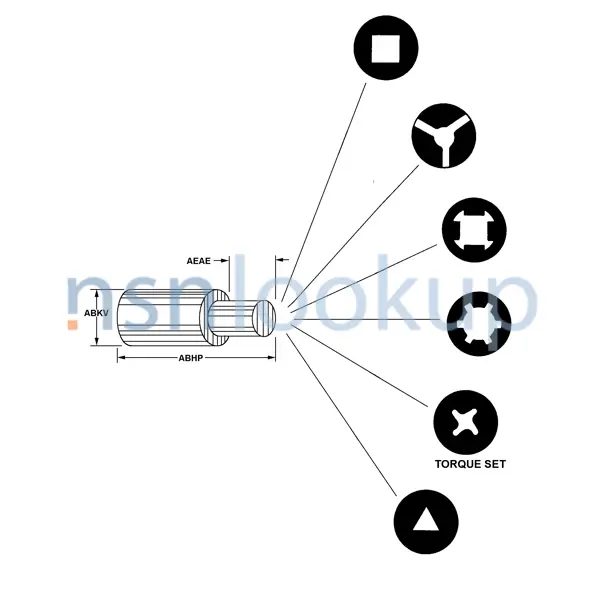

Datasheet 5120-01-207-1951
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Style Designator [STYL]
- Torque Set
- Overall Length [ABHP]
- 6.590 Inches Nominal
- Blade Length [AEAE]
- 5.750 Inches Nominal
- Wrenching Surface Size [AJBR]
- 0.250 Inches Nominal Single End
- Wrenching Surface Shape [CRWY]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.156 Inches Nominal Single End
- End Item Identification [AGAV]
- Ifv (Xm2) Cfv (Xm3)
Management Data 5120-01-207-1951
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- MM
- Armored Carriers
Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavalry Fighting Vehicle (M3, M3A1, M3A2)
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Similar Supply Items to 5120-01-207-1951
Freight Information 5120-01-207-1951
5120-01-207-1951 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-207-1951 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-207-1951 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-207-1951 is not classified as a special type of cargo when transported by water. 5120-01-207-1951 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5120-01-207-1951
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- MIL-PRF-16173, Cosmoline, Grade 2, Soft Film
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 2, Corrosion Preventive, Solvent Cutback, Cold Application, Soft Film
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5120-01-207-1951 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
