5120-01-203-3316
Socket Wrench Spanner Attachment
5120012033316 012033316 12321206
An item having an adjustable or fixed span with pin, hook, or key type end that is used to fit and turn various size retaining rings, cover plates, plugs, couplings, and like parts. Usually designed to be driven by a male driver. View more Socket Wrench Spanner Attachment
June 2023
4
Marketplace 5120-01-203-3316
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-203-3316 1+ Documents (More...)
5120-01-203-3316 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-203-3316
Socket Wrench Spanner Attachment 012033316 12321206 An item having an adjustable or fixed span with
Restrictions 5120-01-203-3316
5120-01-203-3316 is a Socket Wrench Spanner Attachment that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-203-3316
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-203-3316
- US Army (A921)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A182
- Supplementary Receivers:
- AZCNBF
- US Marine Corps (MC41)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Australia (ZA01)
- Effective Date:
- 1 Oct 2005
Approved Sources 5120-01-203-3316
- Part Number
- Manufacturer
- Status
- 12321206
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy

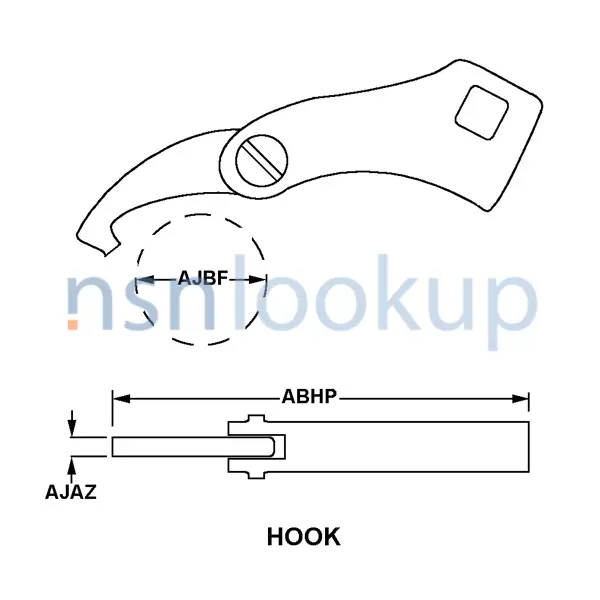

Datasheet 5120-01-203-3316
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.378 Inches Nominal Single End
- Circle Range Diameter [AJBF]
- 3.880 Inches Nominal
- Hardness Rating [CQFM]
- 45.0 Rockwell C Minimum And 50.0 Rockwell C Maximum
- Hook Thickness [AJAZ]
- 0.500 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-T-570,Type 06 Fed Spec Single Material Response Overall
- Material [MATT]
- Steel Comp O6 Overall
- Overall Length [ABHP]
- 4.160 Inches Nominal
- Special Features [FEAT]
- 6Irregular Shaped: 3.620 O/A Width By 4.160 O/A Length; Includes 2,45 Deg Places; 0.250 Radius,6 Places; Includes 1.940 Radius Located 0.312 From Second End; 0.170 Dia Thru To Square Hole,Located 1.000 From Length And Width Edges; Used On M1e1-1Mp
- Style Designator [STYL]
- Hook
- Surface Treatment Document And Classification [STDC]
- Mil-C-13924,Class I Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Oxide Overall
Management Data 5120-01-203-3316
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5120-01-203-3316
Freight Information 5120-01-203-3316
5120-01-203-3316 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5120-01-203-3316 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5120-01-203-3316 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5120-01-203-3316 is not classified as a special type of cargo when transported by water. 5120-01-203-3316 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5120-01-203-3316
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb to 5lb, all dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 5120-01-203-3316 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
