5120-01-180-4606
Torque Wrench Adapter
5120011804606 011804606 1804606 5268364
An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit. View more Torque Wrench Adapter
November 2023
20
Marketplace 5120-01-180-4606
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-180-4606 1+ Documents (More...)
ADAPTER,TORQUE WRENCH RQST NS Request Quotation Updated Every Day 5120-01-180-4606 RQST NE Updated
Every Day 5120-01-180-4606 RQST Updated Every Day 5120-01-180-4606 RQST NE Related Documents 5120-01
Restrictions 5120-01-180-4606
5120-01-180-4606 is a Torque Wrench Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-180-4606
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-180-4606
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHD
- Poland (WP01)
- Effective Date:
- 1 May 2004
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Feb 2016
- France (ZF01)
- Effective Date:
- 1 May 1995
- Netherlands (ZN01)
- Effective Date:
- 1 Sep 2000
- Portugal (ZP01)
- Effective Date:
- 1 Feb 1997
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 2000
Approved Sources 5120-01-180-4606
- Part Number
- Manufacturer
- Status
- 1804606
- Manufacturer
- 0FKL0 - Timber Edge Machine Inc. (Active)
- Primary Buy
- Primary Buy
- 5268364
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-01-180-4606
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall

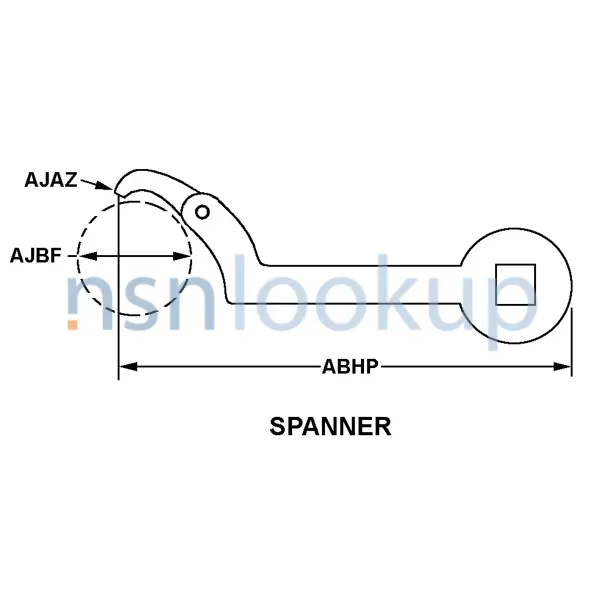

- Style Designator [STYL]
- Spanner
- Overall Length [ABHP]
- 8.500 Inches Nominal
- Drive Surface Size [ATNC]
- 0.375 Inches Nominal Single End
- Drive End Shape [CTCT]
- Square Single End Internal
- Special Features [FEAT]
- 1/4 In. Dia Pin At End Of Hook, 1/2 In. Dia Pin At Base
- Functional Description [FTLD]
- Used To Install Exhaust Valve
Management Data 5120-01-180-4606
Navy
- Cognizance:
- 9Q
Similar Supply Items to 5120-01-180-4606
Freight Information 5120-01-180-4606
5120-01-180-4606 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-180-4606 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-180-4606 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-180-4606 is not classified as a special type of cargo when transported by water. 5120-01-180-4606 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
