5120-01-175-8876
Face Spanner Wrench Socket
5120011758876 011758876 1264T534
An item designed to be driven by an external or internal drive. It has a face type spanner end. View more Face Spanner Wrench Socket
May 2023
5
Marketplace 5120-01-175-8876
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-175-8876 1+ Documents (More...)
Updated Every Day 5120-01-175-8876 RQST NE Related Documents 5120-01-175-8876 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-175-8876 Face Spanner Wrench Socket 5120011758876
Restrictions 5120-01-175-8876
5120-01-175-8876 is a Face Spanner Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-175-8876
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-175-8876
- US Navy (N9BG)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- KE
Approved Sources 5120-01-175-8876
- Part Number
- Manufacturer
- Status
- 1264T534
- Manufacturer
- 72314 - Bae Systems Information And (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-01-175-8876
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Round Single End Internal
- Drive Surface Size [ATNC]
- 1.515 Inches Nominal Single End
- Hardness Rating [CQFM]
- 55.0 Rockwell C Minimum And 60.0 Rockwell C Maximum
- Material Document And Classification [MDCL]
- Qq-S-763,Conda Fed Spec Single Material Response Overall
- Outside Diameter [ABKV]
- 1.700 Inches Nominal
- Material [MATT]
- Steel Comp 440C Overall
- Slot Width [ABGC]
- 0.380 Inches Nominal
- Overall Length [ABHP]
- 1.370 Inches Minimum And 1.390 Inches Maximum

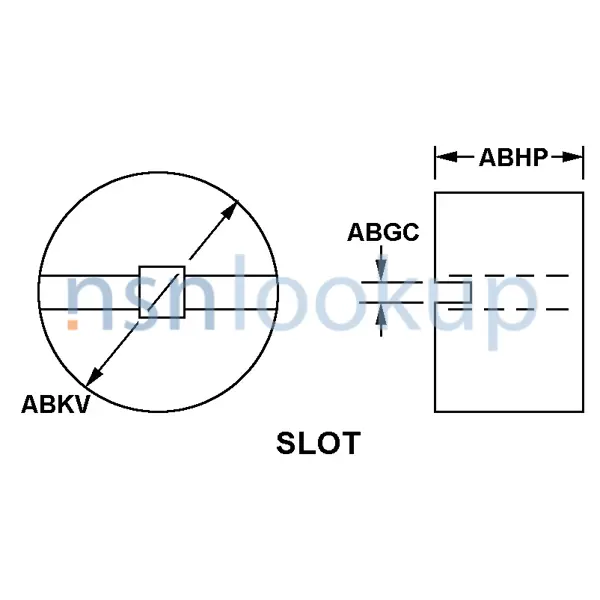

- Style Designator [STYL]
- Slot
- Surface Treatment Document And Classification [STDC]
- Mil-F-14072 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
DLA Procurement Analysis 5120-01-175-8876
Management Data 5120-01-175-8876
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material ID:
- PF
- Fighter Aircraft (F14)
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 5120-01-175-8876
Freight Information 5120-01-175-8876
5120-01-175-8876 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 040265. A Sub NMFC of X. It has a NMFC Description of CAPS/COVERS/DISCS/ENDS ETC. 5120-01-175-8876 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 20390 which rates the freight between FCL and LCL. 5120-01-175-8876 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5120-01-175-8876 is not classified as a special type of cargo when transported by water. 5120-01-175-8876 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5120-01-175-8876 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
