5120-01-151-5424

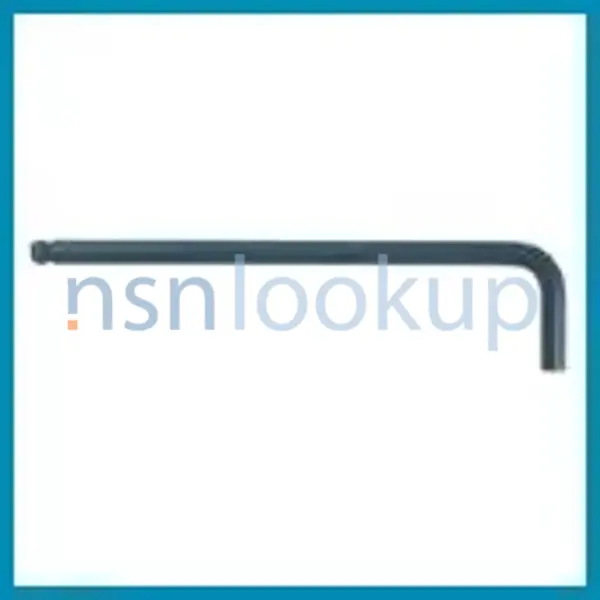

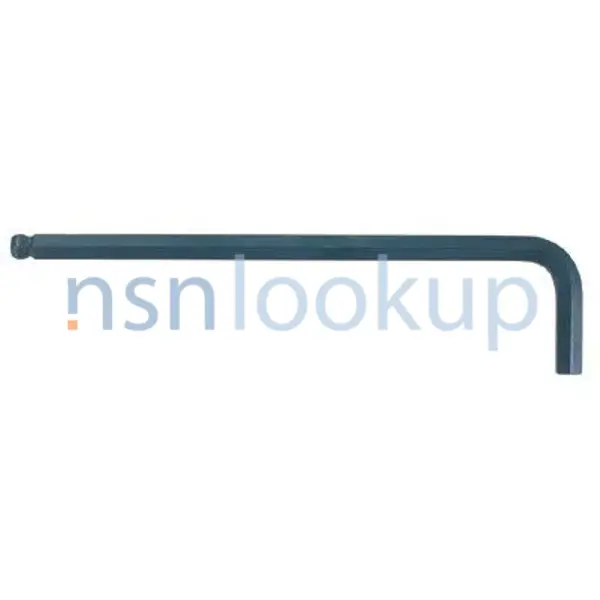

Socket Head Screw Key
5120011515424 011515424 10904 BL5/64
A hand tool designed to impart a rotary movement of force for installing or removing socket screw products. Excludes WRENCH, DRAIN PLUG; and WRENCH, BUNG. View more Socket Head Screw Key
May 2023
14
Marketplace 5120-01-151-5424
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-151-5424 5+ Documents (More...)
Photo 1/6 5120-01-151-5424 Photo 2/6 5120-01-151-5424 Photo 3/6 5120-01-151-5424 Photo 4/6 5120
RQST Updated Every Day 5120-01-151-5424 RQST NE Related Documents 5120-01-151-5424 5+ Documents ( More
www.nsnlookup.com /fsg-76/fsc-7610/it 7610-15-237-7752 Libropersona E Dann 7610152377752152377752 ISBN 88-14-10904
Socket Head Screw Key 5120011515424,10904 5424 RQST NE Updated Every Day 5120-01-151-5424 https
99-432-3603 Torsion Helical Spring 1010994323603,10904 244-14136150012441413 012441413,10904-402-1 10904
2510-21-906-3216 Vehicular Window 2510219063216 219063216 7470 Salvage Air Hose Connection Assembly,10904
026-10904-000 26-10904 NNP0099087407865 Managed by United States NSN Created on 20 Jul 1966 Data Last
Details... 1LPBG13 SEAL ASSEMBLY 5 EA NS Request Quotation Subscribe to View Vendor Details... 026-10904
-402-1 10904-402 A definite continuous length of CABLE, SPECIAL PURPOSE, ELECTRICAL with branches (forks
) https//www.nsnlookup.com /fsg-61/fsc-6150/us 6150-01-244-14136150012441413 012441413,10904-402-1 10904
Restrictions 5120-01-151-5424
5120-01-151-5424 is a Socket Head Screw Key that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-151-5424
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-151-5424
- US Army (A192)
- Effective Date:
- 1 Apr 2001
- Supplementary Receivers:
- CL
- NASA (G751)
- Effective Date:
- 1 Apr 2001
- US Marine Corps (MC14)
- Effective Date:
- 1 Mar 2005
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2014
- Supplementary Collaborators:
- GG
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Aug 2001
Approved Sources 5120-01-151-5424
- Part Number
- Manufacturer
- Status
- 10904
- Manufacturer
- 31734 - Bondhus Corp (Active)
- Primary Buy
- Primary Buy
- BL5/64
- 31734 - Bondhus Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-151-5424
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Oxide Overall
- Style Designator [STYL]
- L-Handle
- Overall Length [ABHP]
- 3.200 Inches Nominal
- Wrenching Surface Size [AJBR]
- 0.078 Inches Nominal Both Ends
- Wrenching Surface Shape [CRWY]
- Hexagon Both Ends External
- Special Features [FEAT]

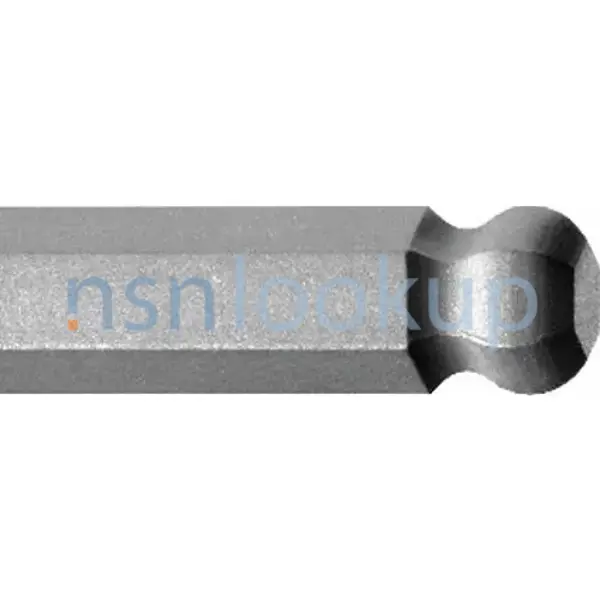

- Ball End
Management Data 5120-01-151-5424
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 6
- Critical Repair Part to a Non-Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5120-01-151-5424
Freight Information 5120-01-151-5424
5120-01-151-5424 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-151-5424 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-151-5424 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-151-5424 is not classified as a special type of cargo when transported by water. 5120-01-151-5424 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
