5120-01-076-2386

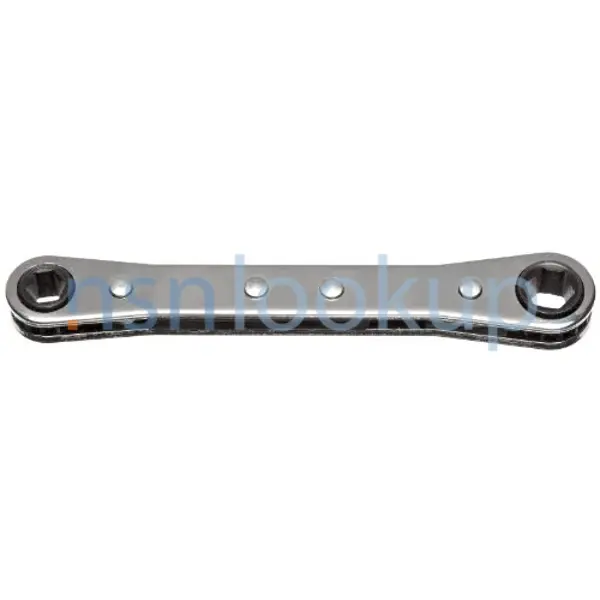

Ratchet Wrench
5120010762386 010762386 B107.100 B107.100 CAT 66 TY1 RB810 B107.66 B107.66 TY2 B107.66 TY1 GGG-W-001405 10086340
A single or double end wrench having a reversible or nonreversible ratchet socket on one or both ends. One end may have a fixed socket or handgrip. It may have a wrench opening through the handle. For items with drive tang, see HANDLE, SOCKET WRENCH. View more Ratchet Wrench
June 2023
36
Marketplace 5120-01-076-2386
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-076-2386 5+ Documents (More...)
/fsg-51/fsc-5120/us
B107.100 WRENCH,RATCHET 6 EA NS Request Quotation Subscribe to View Vendor Details... 5120-01-076-2386
RBM1719 B107.66 TY1 A single or double end TY2 B107.66 TY1GGG-W-00140510086340 RBM1213A B107.66 TY1B107.66
/fsg-51/fsc-5120/us
CAT 66 TY1 GGG-W-001405 B107.66 B107.66 TY1 A single or double end wrench having a reversible B107.100B107.100
5120-01-185-0030 RB-1618-DH 7501 B107.66 TY1 B107.66 A single or double RB810 CAT 66 TY1 RB810 B107.66B107.66
/fsg-51/fsc-5120/us
https//www.nsnlookup.com RB-1618-DH 7501 B107.66 TY1B107.66 A single or double B107.100 CAT 66 TY1 RB810
B107.100 CAT 66 TY1 RB810 B107.66 B107.66 TY2 B107.66 TY1 GGG-W-001405 10086340 A single or double end
/fsg-51/fsc-5120/us
TY1 GGG-W-001405 B107.66 Managed by United A single or double end wrench TY2 B107.66 TY1 GGG-W-001405
Ratchet Wrench Set 5120011677657 011677657 B107.100 CAT 66 TY1 68222 B107.66 TY1 GGG-W-001405 B107.66
-1618-DH 7501 B107.66 TY1B107.66 A single or double B107.100 CAT 66 TY1 RB810 B107.66B107.66 -185- https
//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-076-2386 Ratchet Wrench 5120010762386 010762386 B107.100
Restrictions 5120-01-076-2386
5120-01-076-2386 is a Ratchet Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-076-2386
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-076-2386
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- BDCT
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 May 2008
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1994
- Supplementary Collaborators:
- GTJBHD
- Finland (WF01)
- Effective Date:
- 1 Feb 2008
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2008
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Nov 2003
Approved Sources 5120-01-076-2386
- Part Number
- Manufacturer
- Status
- B107.100
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- RB810
- 64204 - L.S. Starrett Company, The (Active)
- Primary Buy
- Primary Buy
- B107.100 CAT 66 TY1
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- RB810
- 05506 - Martin Sprocket And Gear Inc (Active)
- Secondary Buy
- Secondary Buy
- B107.66
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.66 TY2
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.66 TY1
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-001405
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10086340
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5120-01-076-2386
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material [MATT]
- Steel Overall
- Large End Head Thickness [AJAU]
- 0.344 Inches Nominal
- Small End Head Thickness [AJAV]
- 0.344 Inches Nominal
- Overall Length [ABHP]
- 4.281 Inches Nominal
- Wrenching Surface Shape [CRWY]
- 6 Point Both Ends Internal
- Wrenching Surface Size [AJBR]
- 0.250 Inches Nominal First End
- Wrenching Surface Size [AJBR]
- 0.312 Inches Nominal Second End
- Style Designator [STYL]
- Straight Double Head
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-076-2386
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 5120-01-076-2386
Freight Information 5120-01-076-2386
5120-01-076-2386 has freight characteristics managed by Australia.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-076-2386 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-076-2386 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-076-2386 is not classified as a special type of cargo when transported by water. 5120-01-076-2386 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
