5120-01-068-8959
Spanner Wrench
5120010688959 010688959 U6654
A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG. View more Spanner Wrench
January 2023
4
Marketplace 5120-01-068-8959
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-068-8959 3+ Documents (More...)
/fsg-51/fsc-5120/us
United States (US) 4. 5120-01-068-8959 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5120-01-068-8959 RQST Updated Every Day 5120-01-068-8959 RQST NE Related Documents
Spanner Wrench 5120010688959 010688959 Day 5120-01-068-8959 RQST NE Related Documents https//www.nsnlookup.com
Oman (VE) United Kingdom (ZK) Approved Sources 6695-99-027-0720 Part NumberManufacturerStatusX1572/1 U6654
Restrictions 5120-01-068-8959
5120-01-068-8959 is a Spanner Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-068-8959
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-068-8959
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5120-01-068-8959
- Part Number
- Manufacturer
- Status
- U6654
- Manufacturer
- 99551 - Goodrich Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-01-068-8959
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- End Item Identification [AGAV]
- J85-Ge-21 Eng Variable Eng Nozzle Hyd Control Pump P/N 34E94-11B
- Material [MATT]
- Steel Overall
- Outside Diameter [ABKV]
- 0.262 Inches Minimum And 0.268 Inches Maximum
- Lug Width [AHMM]
- 0.040 Inches Minimum And 0.045 Inches Maximum
- Overall Length [ABHP]
- 1.870 Inches Nominal

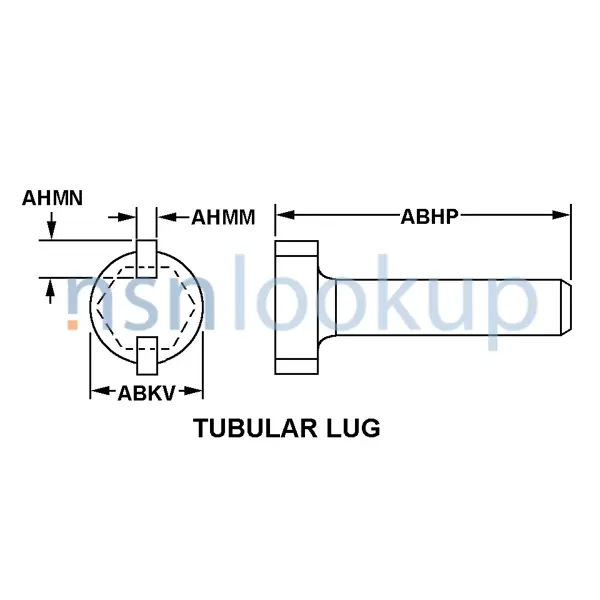

- Style Designator [STYL]
- Tubular Lug
Similar Supply Items to 5120-01-068-8959
Freight Information 5120-01-068-8959
5120-01-068-8959 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-068-8959 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5120-01-068-8959 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-068-8959 is not classified as a special type of cargo when transported by water. 5120-01-068-8959 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
