5120-01-046-6355
Torque Wrench
5120010466355 010466355 B107.300 B107.14 TY3CLBST2 5168333-1 BT-1L (12 IN LB) BT-1B (12 IN-LB)
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
November 2023
19
Marketplace 5120-01-046-6355
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-046-6355 5+ Documents (More...)
RQST NE Updated Every Day 5120-01-046-6355 RQST Updated Every Day 5120-01-046-6355 RQST NE Related Documents
5120-01-046-6355 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-046-6355
TY3CLBST2 5168333-1 BT-1L (12 IN LB) BT-1B 01-046-6355 Torque Wrench 5120010466355010466355 B107.300B107.14
B107.14 TY3CLBST2 B107.14 BT-1 5168333-4 A-A-2413 BT-1B Subscribe to View Vendor Details... 5120-01-
Torque Wrench 5120010466355 010466355 B107.14 TY3CLBST2 5168333-1 BT-1L (12 IN LB) BT-1B (12 IN-LB
/fsg-51/fsc-5120/us 5120-01-646-3631 Torque Wrench 5120016463631 016463631 B107.14 TY2CLAST1DEB B107.300
B107.14 B107.14 TY3CLBST2 PT42 A-A-2413 B107.14M B107.14M TY3CLBST2 A manual tool for tightening various
TY3CLBST2B107.14 BT-1 5168333-4 A-A-2413 BT-1B (18 IN-LB) A manual tool for tightening various B107.14 TY3CLBST2
5168333-1 BT-1L (12 IN LB) BT-1B 80244 - General Services Administration (Active) https//www.nsnlookup.com
Wrench 5120010466355 010466355 046-6355Torque Wrench5120010466355 010466355 B107.300 B107.14 TY3CLBST2
Restrictions 5120-01-046-6355
5120-01-046-6355 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-046-6355
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-046-6355
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Nov 2004
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Nov 2000
Approved Sources 5120-01-046-6355
- Part Number
- Manufacturer
- Status
- B107.300
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- 5168333-1
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- BT-1L (12 IN LB)
- 53305 - Seekonk Manufacturing Company, Inc. (Active)
- Primary Buy
- Primary Buy
- B107.14 TY3CLBST2
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- BT-1B (12 IN-LB)
- 53305 - Seekonk Manufacturing Company, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-046-6355
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.250 Inches Nominal Single End
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 3.000 Inches Minimum And 4.000 Inches Maximum
- Torque Indicating Mechanism [AJCF]
- Preset-Fixed
- Torque Capacity [AJCG]
- 12.0 Inch-Pounds Nominal
- Torque Signal Method [AJDR]
- Feel Impulse

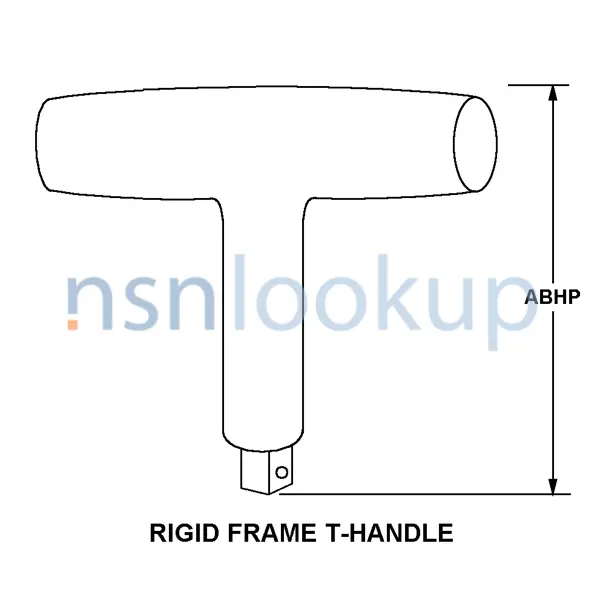

- Style Designator [STYL]
- Rigid Frame T-Handle
Management Data 5120-01-046-6355
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2023
- Department of the Navy (DN)
- EA
- Subscribe
- EA
NATO Stock Numbers Related to 5120-01-046-6355
Freight Information 5120-01-046-6355
5120-01-046-6355 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-046-6355 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-046-6355 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-046-6355 is not classified as a special type of cargo when transported by water. 5120-01-046-6355 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
