5120-01-033-9724
Spanner Wrench
5120010339724 010339724 527383-1
A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG. View more Spanner Wrench
January 2023
5
Marketplace 5120-01-033-9724
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-033-9724 2+ Documents (More...)
/fsg-51/fsc-5120/us
WRENCH,SPANNER 1 EA NS Request Quotation Updated Every Day 5120-01-033-9724 RQST NE Updated Every
Day 5120-01-033-9724 RQST Updated Every Day 5120-01-033-9724 RQST NE Related Documents 5120-01-033-9724
Spanner Wrench 5120010339724 010339724 Upgrade for $1 a day Upgrade your Account Upgrade 5120-01
-033-9724Spanner Wrench5120010339724 010339724 527383 Request a Quotation from participating marketplace
Restrictions 5120-01-033-9724
5120-01-033-9724 is a Spanner Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5120-01-033-9724
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-033-9724
- Germany (ZG01)
- Effective Date:
- 1 Feb 2005
Approved Sources 5120-01-033-9724
- Part Number
- Manufacturer
- Status
- 527383-1
- Manufacturer
- 33809 - Texas Instruments Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-01-033-9724
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Hexagon Single End Internal
- Drive Surface Size [ATNC]
- 0.432 Inches Minimum Single End And 0.437 Inches Maximum Single End
- End Item Identification [AGAV]
- Cooler Test Bench
- Angle Between Lugs [CTLN]
- 90.0 Degrees Nominal
- Features Provided [CBBL]
- Replaceable Wrenching Feature
- Material [MATT]
- Steel Overall
- Opening Diameter [AGNJ]
- 0.250 Inches Nominal
- Lug Width [AHMM]
- 0.040 Inches Minimum And 0.080 Inches Maximum
- Overall Length [ABHP]
- 0.625 Inches Nominal
- Overall Width [ABMK]
- 0.500 Inches Nominal

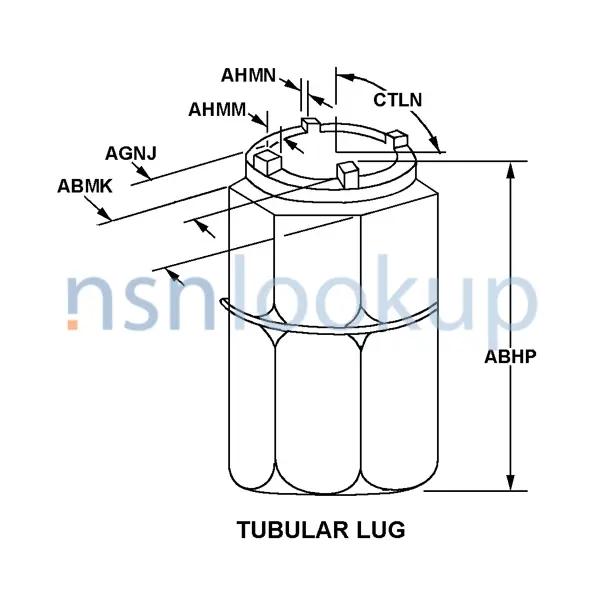

- Style Designator [STYL]
- Tubular Lug
- Surface Treatment [SFTT]
- Chromium Overall
Similar Supply Items to 5120-01-033-9724
Freight Information 5120-01-033-9724
5120-01-033-9724 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-033-9724 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5120-01-033-9724 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-033-9724 is not classified as a special type of cargo when transported by water. 5120-01-033-9724 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
