5120-00-926-9341
Spanner Wrench
5120009269341 009269341 2113158 5206435-11
A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG. View more Spanner Wrench
January 2023
10
Marketplace 5120-00-926-9341
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-926-9341 4+ Documents (More...)
/fsg-51/fsc-5120/us
RQST NE Updated Every Day 5120-00-926-9341 RQST Updated Every Day 5120-00-926-9341 RQST NE Related Documents
5120-00-926-9341 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-926-9341
/fsg-53/fsc-5365/us
Spanner Wrench 5120009269341 009269341 a day Upgrade your Account Upgrade 5120-00-926-9341Spanner
Wrench5120009269341 009269341 2113158 5206435 Every Day 5120-00-926-9341 RQST NE Restrictions https/
Spanner Wrench 5120009269341 009269341 a day Upgrade your Account Upgrade 5120-00-926-9341Spanner
Wrench5120009269341 009269341 2113158 5206435 us 5365-00-285-7905 Externally Threaded Ring 5365002857905
Spanner Wrench 5120009269341 009269341 AssyUOMTechnical DocumentQuantative ExpressionUS Marine
Restrictions 5120-00-926-9341
5120-00-926-9341 is a Spanner Wrench that has critical features such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-926-9341
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-926-9341
- US Air Force (FGHD)
- Effective Date:
- 1 Apr 1991
- Former MOE Rule:
- FUHD
- US Marine Corps (MN71)
- Effective Date:
- 1 Apr 1991
- US Navy (N1H5)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5120-00-926-9341
- Part Number
- Manufacturer
- Status
- 2113158
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Incomplete Reference
- Incomplete Reference
- 5206435-11
- 53711 - Naval Sea Systems Command (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5120-00-926-9341
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Criticality Code Justification [CRTL]
- Feat
- Hardness Rating [CQFM]
- 40.0 Rockwell C Maximum
- Material [MATT]
- Steel Overall

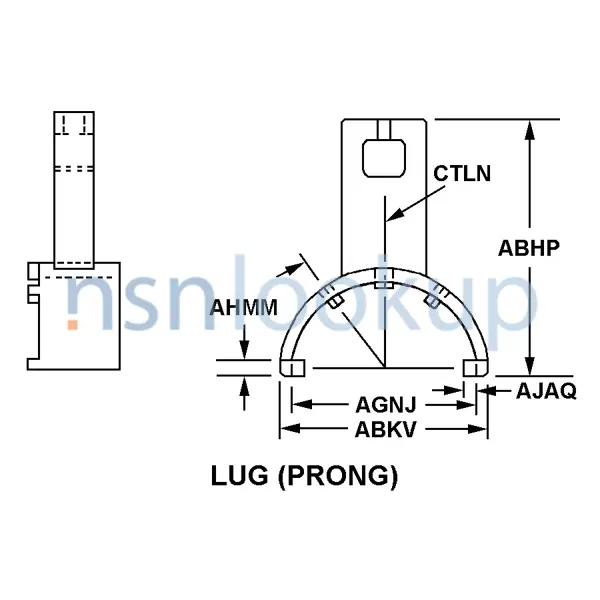

- Opening Diameter [AGNJ]
- 1.563 Inches Nominal
- Outside Diameter [ABKV]
- 2.218 Inches Nominal
- Lug Length [AJAQ]
- 0.250 Inches Nominal
- Reference Number Differentiating Characteristics [ZZZY]
- Magnetic Permeability Shall Be Less Than 1.2 Before Fabrication And Not Greater Than 2.0 After Fabrication As Measured In A 200 Oersted Field
- Overall Length [ABHP]
- 17.750 Inches Nominal
- Special Features [FEAT]
- Explosive Ordnance Disposal Tools/Equip
- Style Designator [STYL]
- Lug
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
Management Data 5120-00-926-9341
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2003
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 1385-00-025-0789
- 0
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 1H
- Consumable material assigned to NAVICP MECH for inventory management
Naval Inventory Control Point, Mechanicsburg
- Special Material ID:
- ED
- Explosive Ordnance Disposal Tools/Equipment
- Issue, Repair, Requisition Restriction Code:
- 00
- No Restriction
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 56
- Operational Test:
- No Special Procedures
Similar Supply Items to 5120-00-926-9341
Freight Information 5120-00-926-9341
5120-00-926-9341 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-926-9341 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5120-00-926-9341 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5120-00-926-9341 is not classified as a special type of cargo when transported by water. 5120-00-926-9341 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
