5120-00-924-7733
Face Spanner Wrench Socket
5120009247733 009247733 6795980
An item designed to be driven by an external or internal drive. It has a face type spanner end. View more Face Spanner Wrench Socket
November 2023
6
Marketplace 5120-00-924-7733
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-924-7733 1+ Documents (More...)
Documents 5120-00-924-7733 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120
-00-924-7733 Face Spanner Wrench Socket 5120009247733 6795980 An item designed to be driven by an external
Restrictions 5120-00-924-7733
5120-00-924-7733 is a Face Spanner Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5120-00-924-7733
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-924-7733
- National Security Agency (DGX1)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- DCX1
- Supplementary Receivers:
- CX
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5120-00-924-7733
- Part Number
- Manufacturer
- Status
- 6795980
- Manufacturer
- 73342 - Allison Transmission Inc (Active)
- Primary Buy
- Primary Buy

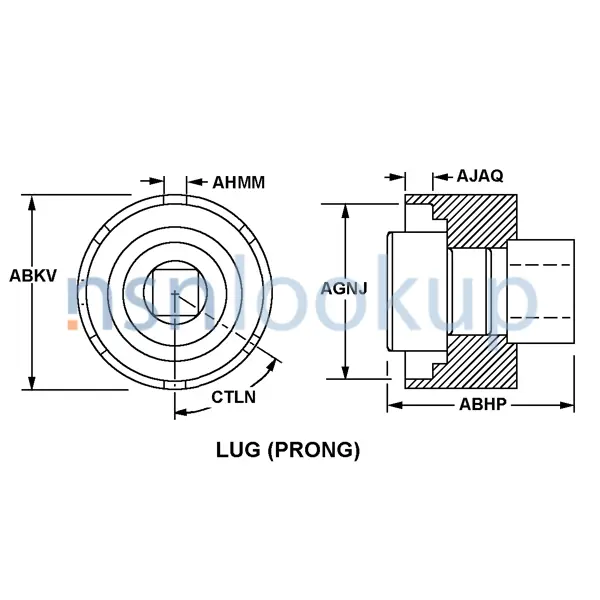

Datasheet 5120-00-924-7733
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.510 Inches Minimum Single End And 0.515 Inches Maximum Single End
- Angle Between Lugs [CTLN]
- 60.0 Degrees Nominal
- Opening Diameter [AGNJ]
- 1.125 Inches Nominal
- Outside Diameter [ABKV]
- 1.625 Inches Nominal
- Material [MATT]
- Steel Comp 4140 Overall
- Lug Length [AJAQ]
- 0.075 Inches Minimum And 0.080 Inches Maximum
- Lug Width [AHMM]
- 0.160 Inches Minimum And 0.170 Inches Maximum
- Material Document And Classification [MDCL]
- Fed Std 66 Fed Std Single Material Response Overall
- Overall Length [ABHP]
- 6.000 Inches Nominal
- Style Designator [STYL]
- Lug
- Surface Treatment Document And Classification [STDC]
- Ams 2400 Assn Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
DLA Procurement Analysis 5120-00-924-7733
Management Data 5120-00-924-7733
NATO Stock Numbers Related to 5120-00-924-7733
Freight Information 5120-00-924-7733
5120-00-924-7733 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-924-7733 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-924-7733 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-924-7733 is not classified as a special type of cargo when transported by water. 5120-00-924-7733 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5120-00-924-7733 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
