5120-00-808-5006
Box Wrench
5120008085006 008085006 69-786 6004W0000 417-202 13216E3209
A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION. View more Box Wrench
January 2023
15
Marketplace 5120-00-808-5006
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-808-5006 1+ Documents (More...)
RQST NS Request Quotation Updated Every Day 5120-00-808-5006 RQST NE Updated Every Day 5120-00-808-5006
RQST Updated Every Day 5120-00-808-5006 RQST NE Related Documents 5120-00-808-5006 1+ Documents ( More
Restrictions 5120-00-808-5006
5120-00-808-5006 is a Box Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-808-5006
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-808-5006
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- CL
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Jun 2004
- Supplementary Collaborators:
- GT
- Spain (YB01)
- Effective Date:
- 1 Sep 2008
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
Approved Sources 5120-00-808-5006
- Part Number
- Manufacturer
- Status
- 6004W0000
- Manufacturer
- 12670 - Square D Co (Obsolete)
- Original Design
- Original Design
- 69-786
- 30554 - Department Of Defense Project (Active)
- Secondary Buy
- Secondary Buy
- 417-202
- 44940 - Cummins Power Generation Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 13216E3209
- 97403 - Cecom Lr Center (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-808-5006
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material [MATT]
- Plastic Overall

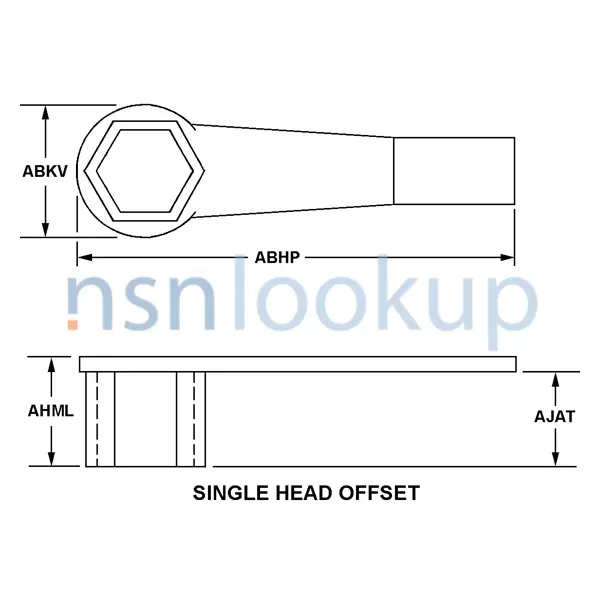

- Style Designator [STYL]
- Single Head, Offset
- Overall Length [ABHP]
- 13.500 Inches Nominal
- Outside Diameter [ABKV]
- 2.880 Inches Nominal
- Head Thickness [AHML]
- 1.880 Inches Nominal
- Wrenching Surface Size [AJBR]
- 2.031 Inches Nominal Single End
- Wrenching Surface Shape [CRWY]
- 12 Point Single End Internal
- Special Features [FEAT]
- 0.31 In. Hole Drilled Thru Handle
Management Data 5120-00-808-5006
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5120-00-808-5006
Freight Information 5120-00-808-5006
5120-00-808-5006 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-808-5006 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-808-5006 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-808-5006 is not classified as a special type of cargo when transported by water. 5120-00-808-5006 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
