5120-00-791-0028
Torque Wrench Adapter
5120007910028 007910028 819030 819030-8 FN-9/16 SFN-9/16
An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit. View more Torque Wrench Adapter
January 2023
15
Marketplace 5120-00-791-0028
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-791-0028 5+ Documents (More...)
5120-00-791-0028 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-791-0028
RQST Updated Every Day 5120-00-791-0028 RQST NE Related Documents 5120-00-791-0028 5+ Documents
JavaScript in your web browser . 5360-17-114-8431Compression Helical Spring5360171148431 171148431 819030
14-246-0020 Spur Gear 3020142460020 142460020,70819030 388-2761Battery Set6135013882761 013882761 819030
JavaScript in your web browser . 5360-17-114-8431Compression Helical Spring5360171148431 171148431 819030
enable JavaScript in your web browser . 3020-14-246-0020Spur Gear3020142460020 142460020 70819030 819030
5120-15-184-9579 Italy (ZR) Approved Sources 5120-15-184-9579 Part NumberManufacturerStatusCLEC0-819030
01-388-2761 Battery Set 6135013882761 013882761,819030 388-2761Battery Set6135013882761 013882761 819030
//www.nsnlookup.com /fsg-53/fsc-5360/nl 5360-17-114-8431 Compression Helical Spring 5360171148431 819030
01-388-2761 Battery Set 6135013882761 013882761,819030 388-2761Battery Set6135013882761 013882761 819030
Restrictions 5120-00-791-0028
5120-00-791-0028 is a Torque Wrench Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-791-0028
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-791-0028
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Sep 2009
Approved Sources 5120-00-791-0028
- Part Number
- Manufacturer
- Status
- 819030
- Manufacturer
- 64334 - Ryeson Corporation (Active)
- Primary Buy
- Primary Buy
- 819030-8
- 64334 - Ryeson Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- FN-9/16
- 64334 - Ryeson Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- SFN-9/16
- 64334 - Ryeson Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-791-0028
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall

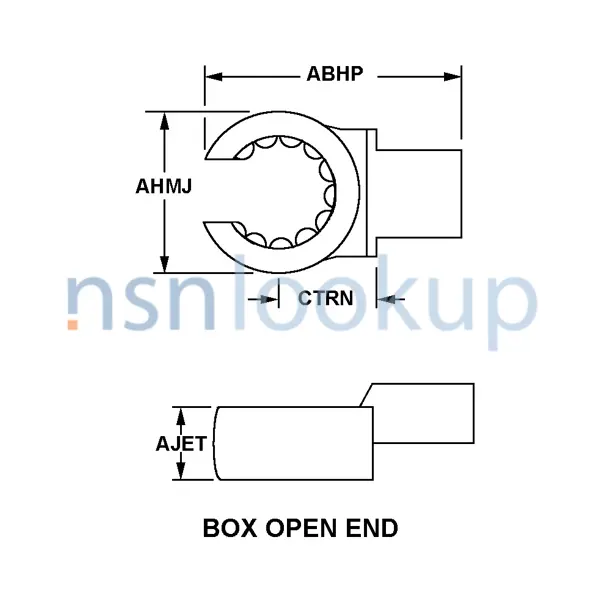

- Style Designator [STYL]
- Box, Open End
- Overall Length [ABHP]
- 1.625 Inches Nominal
- Wrenching End Outside Diameter [AHMJ]
- 1.031 Inches Nominal
- Wrenching End Head Thickness [AJET]
- 0.438 Inches Nominal
- Distance From Shoulder End To Wrench Opening Center [CTRN]
- 1.438 Inches Nominal
- Wrenching Surface Size [AJBR]
- 0.562 Inches Nominal Single End
- Wrenching Surface Shape [CRWY]
- 12 Point Single End Internal
- Drive End Shape [CTCT]
- Dovetail Single End Internal
- End Item Identification [AGAV]
- Sturtevant-Richmont Type Ccm And Ltc Torque Wrenches
NATO Stock Numbers Related to 5120-00-791-0028
Freight Information 5120-00-791-0028
5120-00-791-0028 has freight characteristics.. 5120-00-791-0028 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
