5120-00-761-2920
Spanner Wrench
5120007612920 007612920 7550016
A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG. View more Spanner Wrench
January 2023
13
Marketplace 5120-00-761-2920
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-761-2920 4+ Documents (More...)
/fsg-51/fsc-5120/us
RQST NE Updated Every Day 5120-00-761-2920 RQST Updated Every Day 5120-00-761-2920 RQST NE Related Documents
5120-00-761-2920 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-761-2920
Assembly 3040142742447 web browser . 3040-14-274-2447Flexible Shaft Assembly3040142742447 142742447 7550016
711983 www.nsnlookup.com /fsg-53/fsc-5305/fr 5305-14-283-2358 Vis 5305142832358 142832358,711983 7550016
7615Dummy Ecm System5865992577615 992577615 711983 https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-761-2920
Spanner Wrench 5120007612920 007612920 2447Flexible Shaft Assembly3040142742447 142742447 7550016
https//www.nsnlookup.com /fsg-30/fsc-3040/fr 3040-14-274-2447 Flexible Shaft Assembly 3040142742447 7550016
Spanner Wrench 5120007612920 007612920 7550016 Assembly 3040142742447 web browser . 3040-14-274
Restrictions 5120-00-761-2920
5120-00-761-2920 is a Spanner Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-761-2920
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-761-2920
- Republic of Korea (ZH01)
- Effective Date:
- 1 Nov 1994
Approved Sources 5120-00-761-2920
- Part Number
- Manufacturer
- Status
- 7550016
- Manufacturer
- 19204 - Army, United States Department Of (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-00-761-2920
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.506 Inches Nominal Single End
- Features Provided [CBBL]
- Removable Handle
- Material [MATT]
- Steel Overall
- Opening Diameter [AGNJ]
- 4.620 Inches Nominal
- Lug Width [AHMM]
- 0.350 Inches Minimum And 0.355 Inches Maximum
- Special Features [FEAT]
- 0.500 In. Lug Thk;0.120 In. Lug Lg
- Overall Length [ABHP]
- 15.380 Inches Nominal

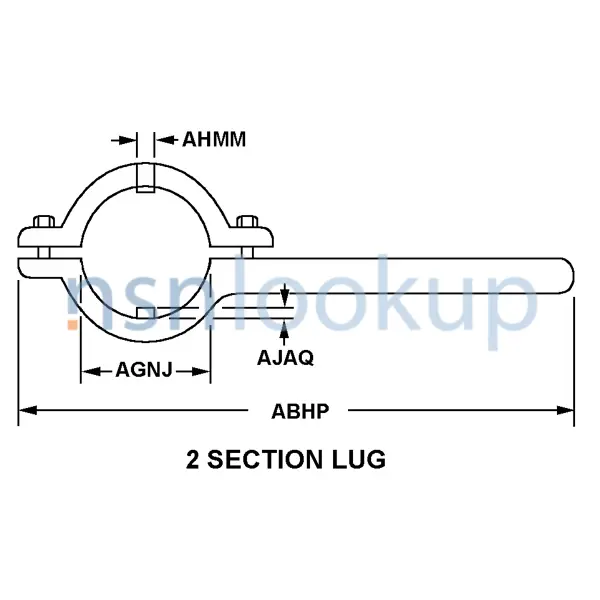

- Style Designator [STYL]
- 2 Section Lug
- Surface Treatment Document And Classification [STDC]
- 171. Finish 1.1.1.3 Mil Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
Similar Supply Items to 5120-00-761-2920
Freight Information 5120-00-761-2920
5120-00-761-2920 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-761-2920 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-761-2920 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-761-2920 is not classified as a special type of cargo when transported by water. 5120-00-761-2920 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
