5120-00-757-5030
Slugging Type Box Wrench Socket
5120007575030 007575030 431B883PC1
An item having a hexagonal external drive at one end, made to fit into the internal hexagonal or 12-point opening of a slugging type box wrench. The opposite end has a single-broached hexagonal opening of the same size as the external drive. The item is designed with extra thick walls to withstand the impact of sledge blows on the driving wrench. View more Slugging Type Box Wrench Socket
January 2023
7
Marketplace 5120-00-757-5030
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-757-5030 5+ Documents (More...)
Slugging Type Box Wrench Socket 007575030 RQST NE Updated Every Day 5120-00-757-5030 RQST Updated Every
/fsg-51/fsc-5120/us 5120-00-757-5030 Slugging Type Box Wrench Socket 007575030 United States (US) 4.
Slugging Type Box Wrench Socket 007575030 007575030 5120/us 5120-00-757-5030 https//www.nsnlookup.com
/fsg Slugging Type Box Wrench Socket 016875134 Wrench Socket 007575030 5120-17-052-5928 5120-14-329
Slugging Type Box Wrench Socket 007575030 00-757-5030 https//www.nsnlookup.com /fsg Slugging Type
Box Wrench Socket 016875134 102-6926 5120-17-105-8451 5120-17-052-5928 5120/us 5120-00-757-5030 https
Slugging Type Box Wrench Socket 007575030 US) 4. 5120-00-757-5030 Marketplace Restrictions https
Slugging Type Box Wrench Socket 007575030 www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-757-5030
Restrictions 5120-00-757-5030
5120-00-757-5030 is a Slugging Type Box Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-757-5030
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-757-5030
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
Approved Sources 5120-00-757-5030
- Part Number
- Manufacturer
- Status
- 431B883PC1
- Manufacturer
- 01289 - General Electric Company (Active)
- Primary Buy
- Primary Buy
- 431B883PC1
- 24446 - General Electric Company (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5120-00-757-5030
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Hexagon Single End External
- Drive Surface Size [ATNC]
- 1.088 Inches Minimum Single End And 1.125 Inches Maximum Single End
- Material [MATT]
- Steel Comp 4142 Overall
- Overall Length [ABHP]
- 2.000 Inches Nominal
- Wrenching End Outside Diameter [AHMJ]
- 1.688 Inches Nominal
- Wrenching Surface Shape [CRWY]
- Square Single End Internal
- Wrenching Surface Size [AJBR]
- 1.125 Inches Nominal Single End

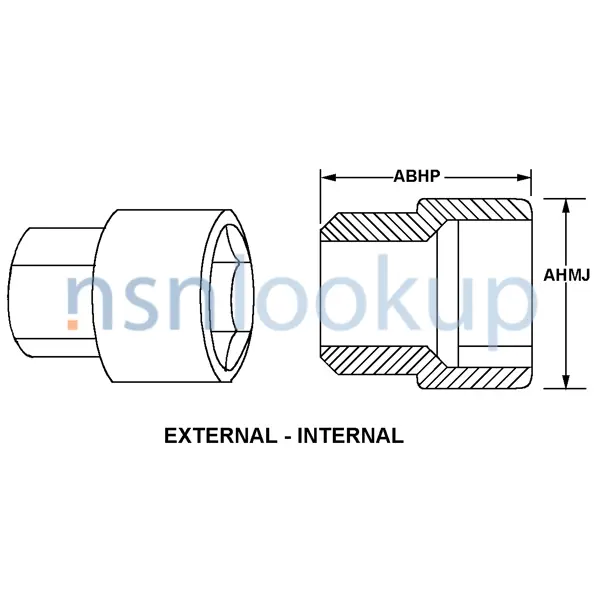

- Style Designator [STYL]
- External Internal
- Surface Treatment [SFTT]
- Chromium Overall And Nickel Overall And Oxide Overall
NATO Stock Numbers Related to 5120-00-757-5030
Freight Information 5120-00-757-5030
5120-00-757-5030 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-757-5030 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-757-5030 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-757-5030 is not classified as a special type of cargo when transported by water. 5120-00-757-5030 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
